D90L96-150KV High-Performance Water-Cooled Outrunner Motor

D90L96 Water-cooled Quanly 20V 36V 335kv 20kw Brushless Outrunner Motor

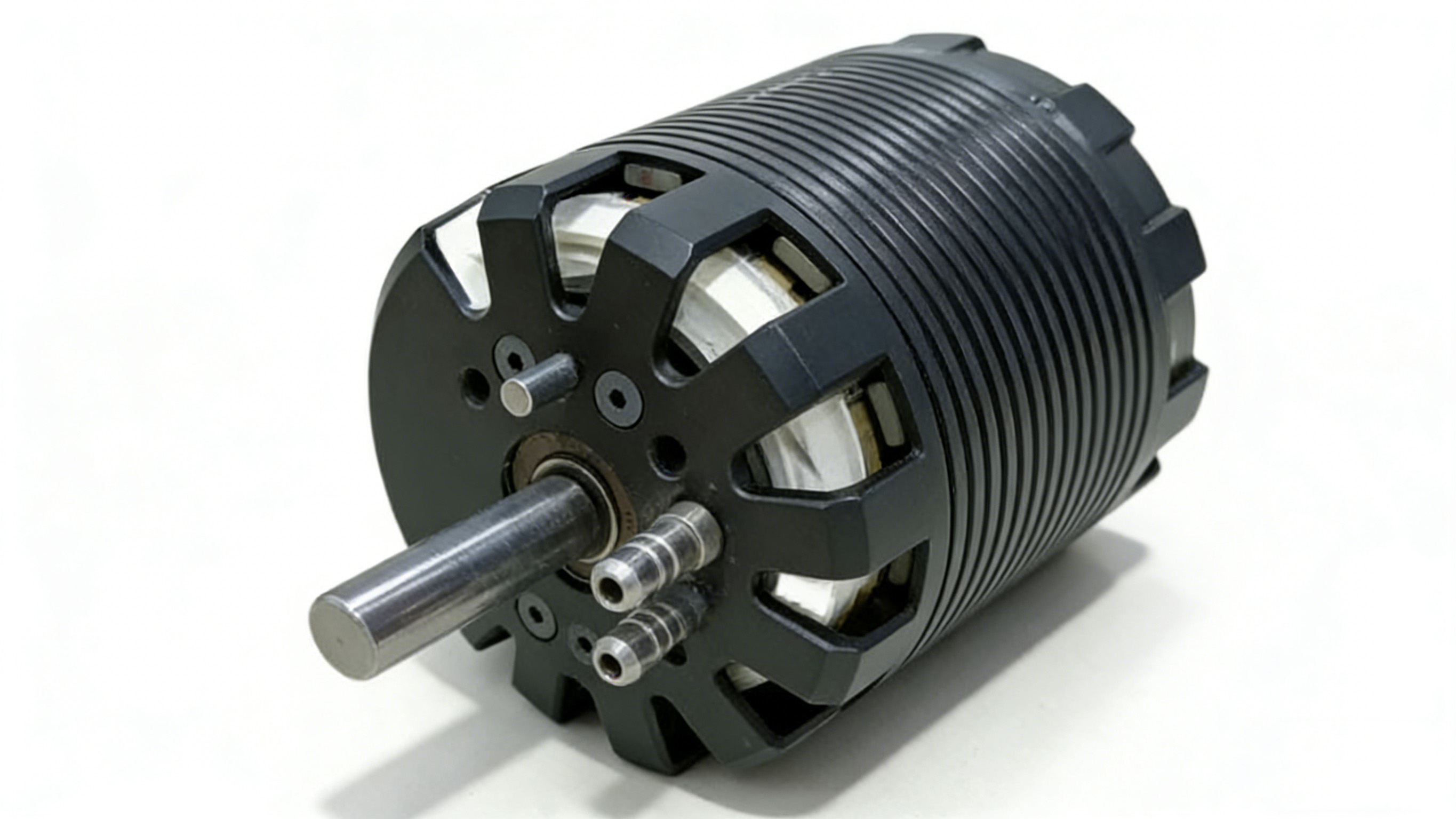

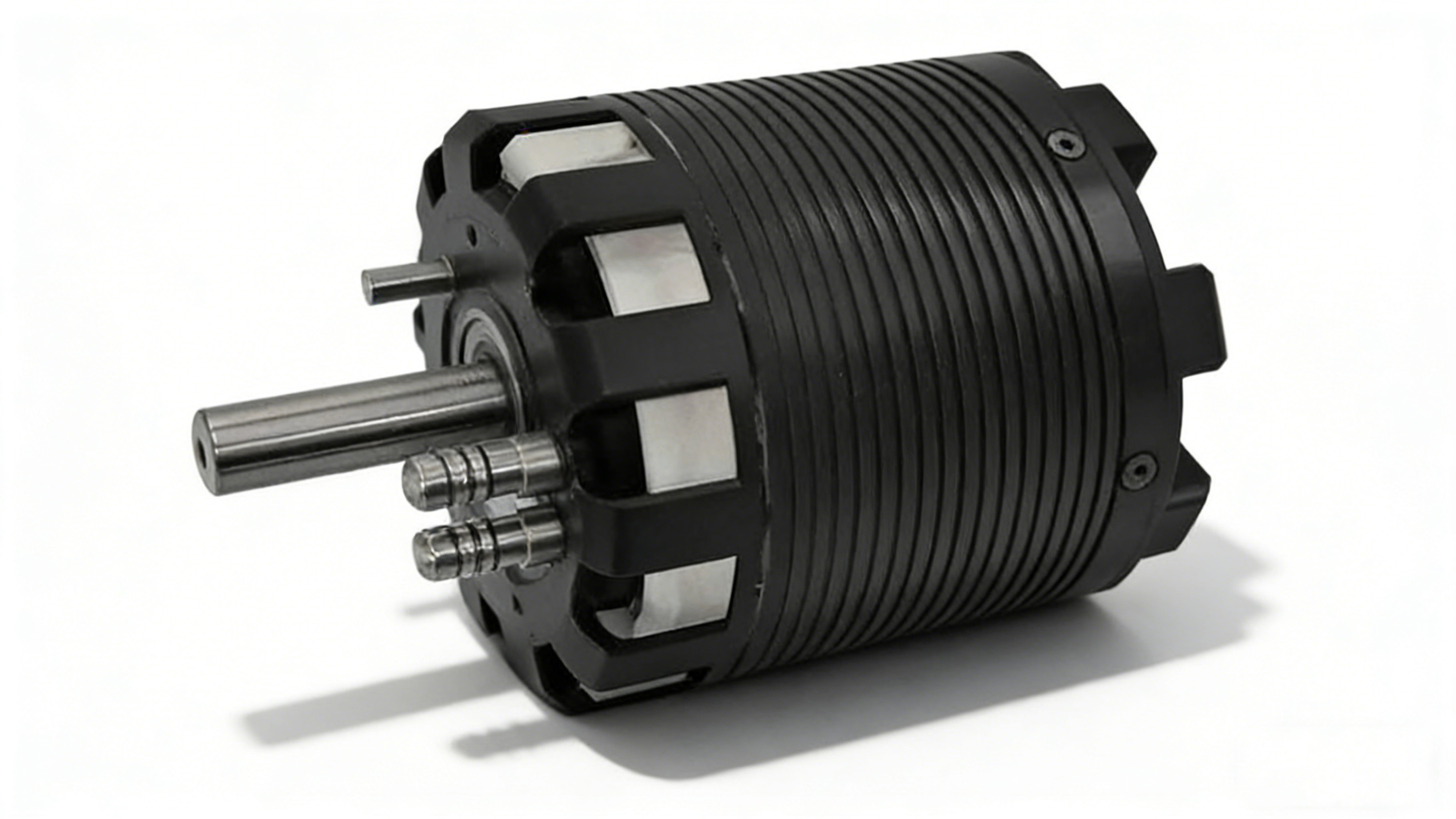

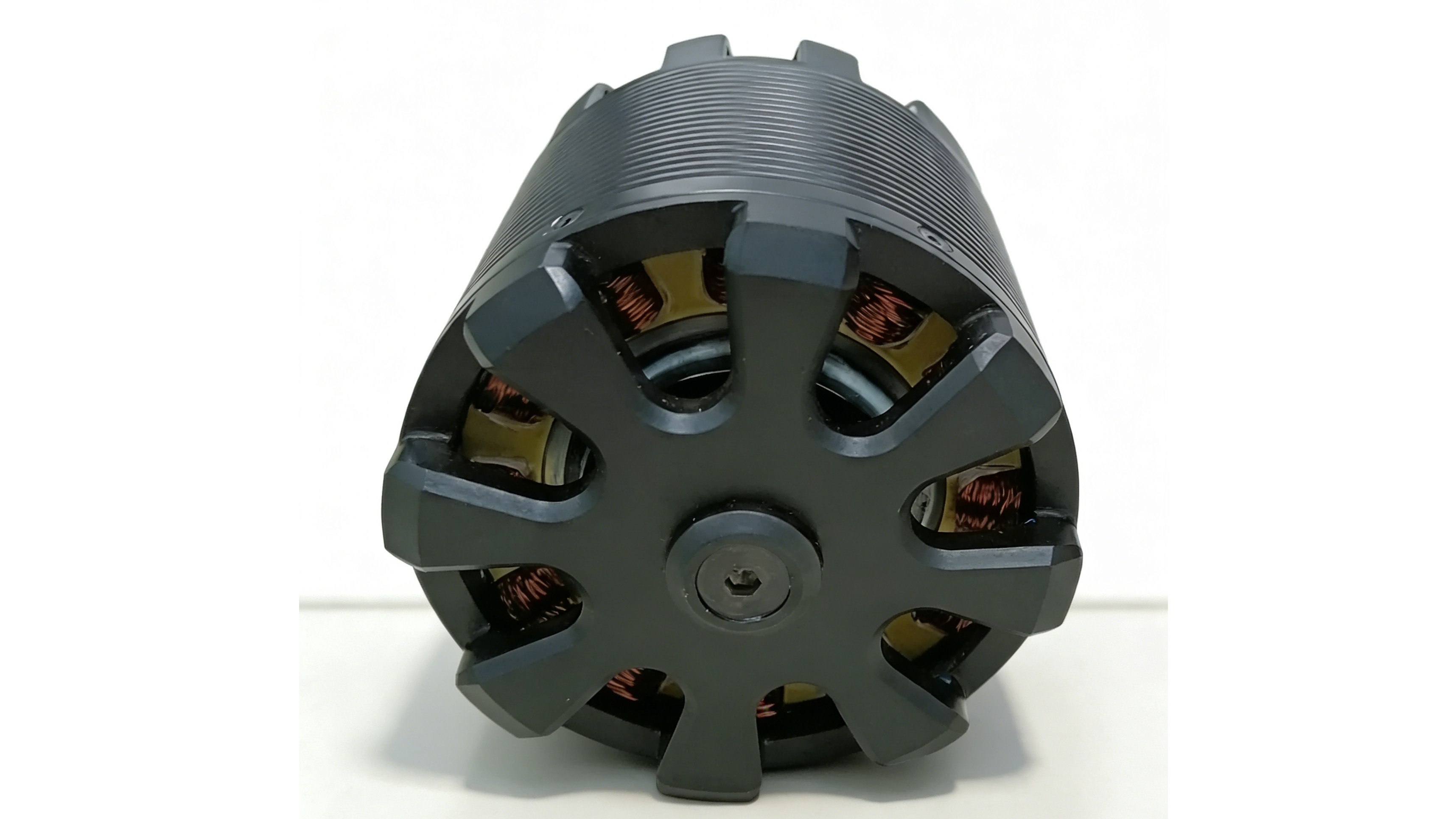

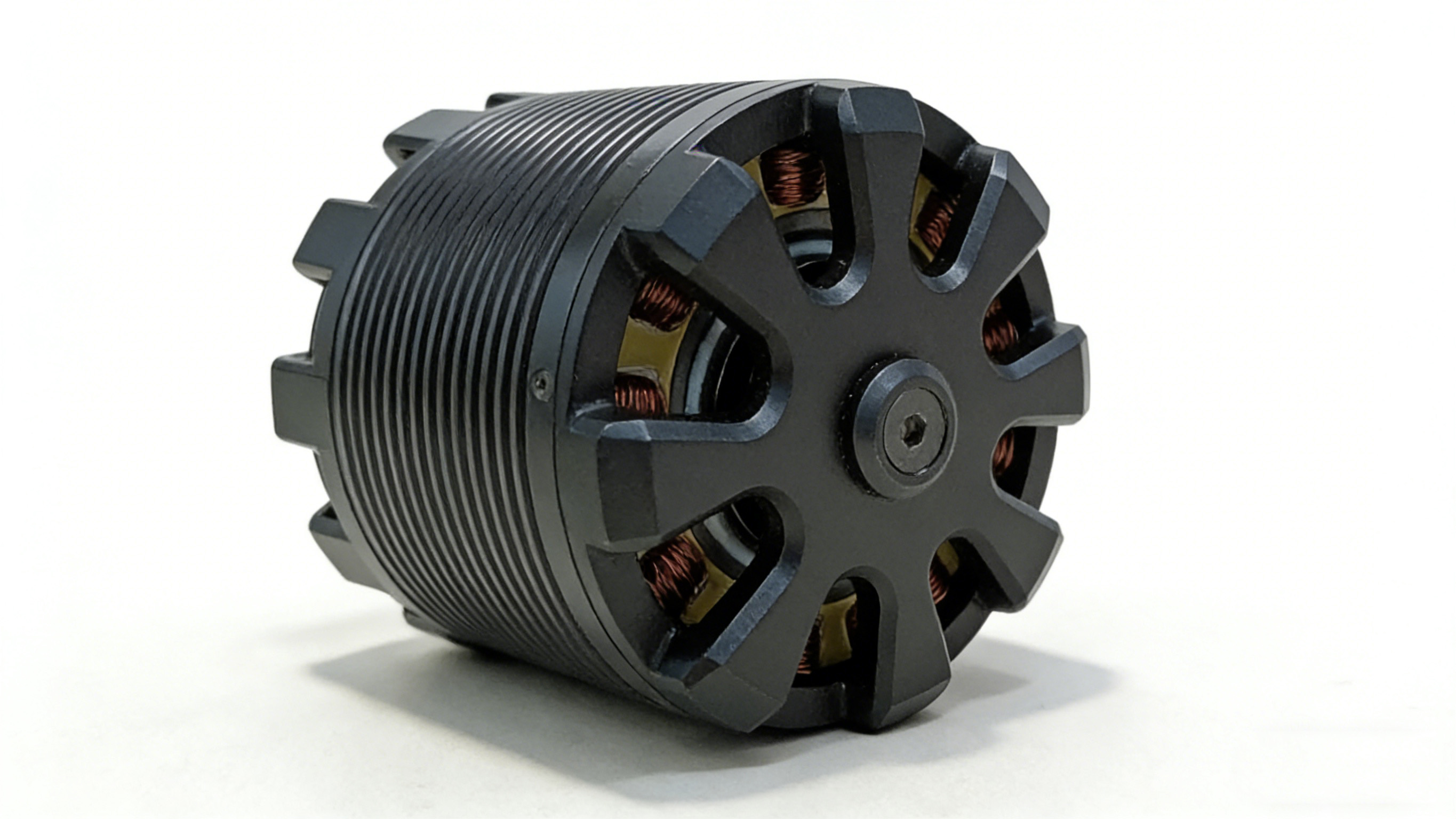

The Hobiba D90L96-335KV is engineered for the pursuit of extreme speed, offering the highest KV rating in the D90L96 series. Designed for 6-10S voltage systems (20-42V), it spins up to 14,070 RPM, delivering 23.5kW of peak power for applications where maximum velocity is the primary goal. This motor is ideal for lightweight, high-speed electric race vehicles, performance aircraft, and other platforms where minimizing rotational inertia and maximizing RPM are critical. Despite its focus on speed, it retains the series' hallmarks of high efficiency (92%), advanced cooling, and rugged construction.

Peak Power: 23.5 kW
Peak Torque: 25.0 N·m
Max Speed: 14,070 RPM
Cooling Method: Water + Air Cooling (Integrated Heatsink)
Weight: 2.53 kg

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
>200
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Outrunner Motor Water-Cooled Outrunner Motor Brushless Outrunner Motor RC Motor

Features

Specification

Dyno tested data

Dimension

Key Features

Ultra-High 335KV Rating: Optimized for maximum RPM, providing thrilling top-speed performance for racing and aerobatic applications.
High-Speed Capability: Achieves the highest no-load speed (14,070 RPM) in the series for exceptional velocity.
Optimized for Lower Voltage: Operates efficiently on 6-10S LiPo packs (20-42V), suitable for common high-discharge battery configurations.
Sustained High-Power Design: Advanced segmented magnet rotor and dual cooling system manage heat effectively during high-RPM operation.
High Power-to-Weight Ratio: Delivers 23.5kW in a compact package, crucial for weight-sensitive speed applications.
Professional Durability: Constructed from hard-anodized 7075 aluminum to withstand the demands of competitive environments.

Electric Propulsion for various wheel drive system
1. Single Rotor / Multi-Rotor / Fixed Wing UAV
2. Electric skateboard engine
3. e-Mobility / Scooter
4. Potter Wheel
5. Others

Parameter	Specification
Model Number	D90L96-335KV
Motor Type	Water-Cooled Brushless Outrunner
Construction	24N20P (Segmented Magnets)
Kv (RPM/V)	335
Voltage Range	20 - 42 VDC (6-10S LiPo)
Peak Power	23.5 kW
Peak Torque	25.0 N·m
Peak Current	820 A
Max. Speed	14,070 RPM
Efficiency	Up to 92%
Weight	2.53 kg

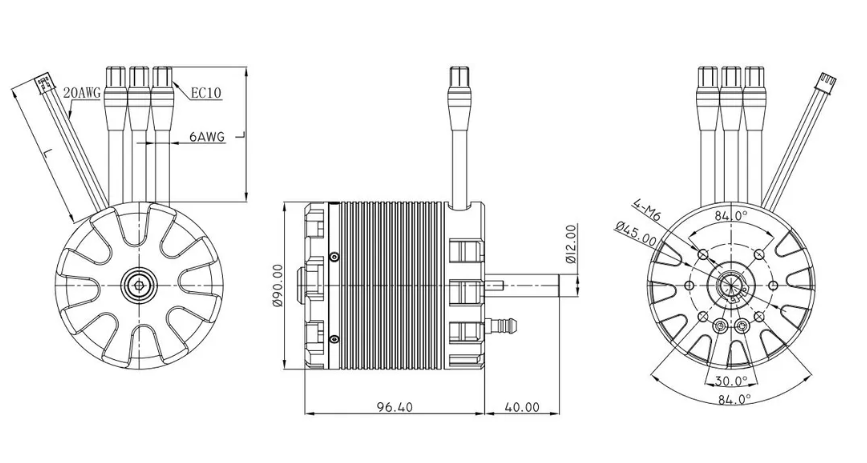

Dimensions (Dia. x Length)	D90 x L96.4 mm
Shaft Diameter	12 mm
Cooling	Water + Air (Integrated Heatsink)
Housing Material	Hard-Anodized 7075 Aluminum
Design Life	10,000 hours

Dyno Testing for D90L96-WC-335Kv at 29V
Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	M_Voltage (V)	M_Current (A)	M_Input Power(W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power(W)
0	29.1	118.419998	3445.310059	20.49	104.139999	3331.300049	79.639229	8099	3.128004	2653.021729
1	28.780001	149.580002	4304.810059	20	131.160004	3991.040039	82.888649	7550	4.184004	3308.119141
2	28.5	181.419998	5169.689941	19.559999	160.380005	4615.700195	84.290863	7015	5.296004	3890.613525
3	28	210.419998	5892.080078	19.02	187.770004	5134.290039	83.790047	6500	6.320004	4302.023926
4	27.57	237.039993	6533.350098	18.540001	213.490005	5568.970215	82.350525	6042	7.248004	4586.076172
5	27.17	265.350006	7204.790039	18.049999	241.059998	6002.850098	80.325829	5577	8.256004	4821.838867
6	26.76	293.579987	7849.839844	17.57	267.48999	6349.580078	78.261314	5131	9.248004	4969.264648
7	26.42	316.019989	8342.089844	17.15	288.899994	6636.060059	75.338051	4774	10.000004	4999.478516
