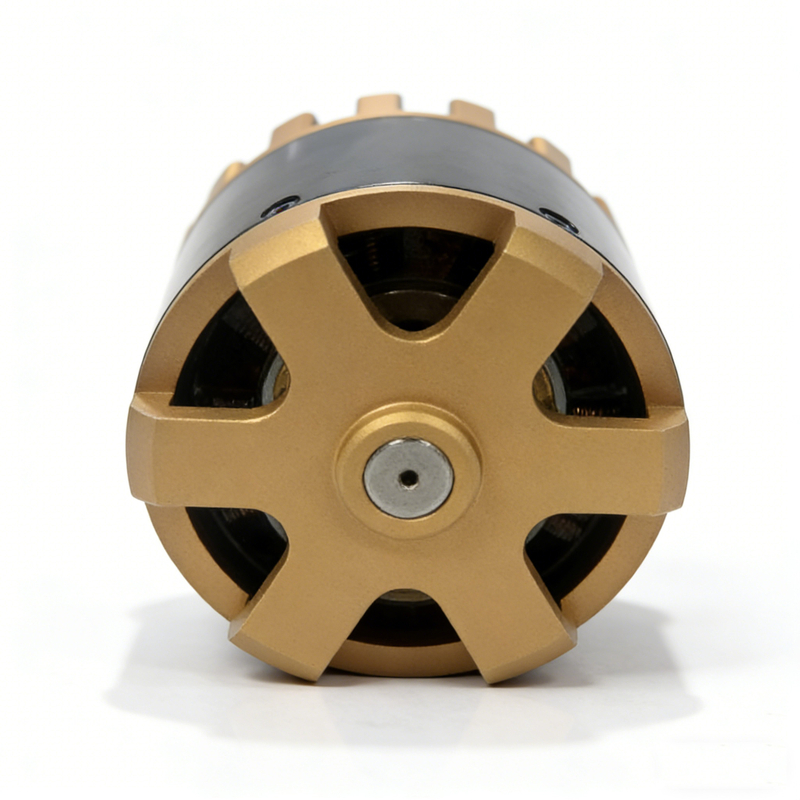

D65L76 Water-Cooled 230kv 6700W Brushless Outrunner Motor

The D65L76-WC-230KV is a versatile outrunner motor designed to deliver an optimal balance of torque and speed for a wide range of demanding applications. Its 230KV rating makes it suitable for systems that require strong low-end pull and efficient operation across a broad voltage range. The CNC-machined aluminum heatsink housing ensures effective thermal management. This motor is an excellent choice for multi-rotor UAVs, personal e-mobility devices, industrial automation spindles, and other applications where smooth, reliable torque and extended operational life are paramount.
Peak Power: 6.7 kW
Peak Torque: 9.0 N·m
Max Speed: 15,456 RPM
Cooling Method: Water-Cooled (CNC Heatsink Housing)
Weight: 0.863 kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • >200

  • Sensorless

  • 60V

  • < 120A

Brushless DC Motor Outrunner Motor Water-Cooled Motor RC Motor
Features
Specification
Dyno Tested Data
Dimension


Key Features


  • Balanced 230KV Design: Offers an excellent mix of torque and speed, ideal for versatile propulsion and drive systems.

  • CNC Machined Heatsink Housing: Provides structural integrity and enhances heat dissipation in conjunction with water-cooling.

  • Wide Operating Voltage: Compatible with a broad 8-16S LiPo range (26V-67.2V), offering great system flexibility.

  • High Torque Output: Delivers up to 9.0 N·m of torque, benefiting from the inherent torque advantages of the outrunner design.

  • Smooth & Stable Operation: The external rotor design provides higher rotational inertia, resulting in smoother running and lower noise.

  • Multi-Application Ready: Perfect for UAVs, e-skateboards, e-mobility solutions, and specialized industrial drives.



ParameterValue
ModelD65L76-230
Winding Turn & Connection11T-D
LiPo/Voltage Range8-16S (26-67.2V)
Max Spin Speed (RPM)15,456
Speed Constant kV (RPM/V)230
Torque Constant Kt (N•M/A)0.04747
No Load Current @ 8.4V (A)1.5
Maximum Output Power (W)6,700
Peak Current (A)160
Efficiency92.00%
Max Torque @ 60% Eff. (N•M)9.0
Weight (g)863
Construction24N/20P
Max Working Temperature120ºC
DimensionD65*L76 mm
Shaft Extensionφ8*L36
Lead Wires Extension200mm
Insulation Voltage & Leak CurrentAC500V/10MA/3S
Plug8.0mm plug
Life Span (hrs)10,000



D65L76 at 230Kv -25Vdc - Low Power
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power
(W)		M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power
(W)
024.87000125.280001629.2600118.36000120.799999616.57000792.14176256510.960001568.118469
124.7437.68932.7399918.0931.33913.63000591.73525253931.484001838.120789
224.620001501231.55004917.86000142.1699981201.20996190.50725651472.0170011087.182129
324.54000159.2900011455.19995117.70000150.4900021413.43994189.26113149662.4260011261.652466
424.42731782.60998517.563.0600011720.14001586.90486147083.0320011494.885254
524.3581.6299971987.33996617.471.0999981909.17004485.16886945443.4170011626.018555
624.2492.9499972253.12011717.2481.7399982151.9899982.66043943313.9220011778.84436
724.129999105.5299992545.71997117.0893.682416.36010779.54547140964.4810011922.10498
D65L76 at 230Kv -35Vdc-High Power
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
034.9853.7400021879.79003925.3445.5499991842.92004482.55952573231.9840041521.505981
134.7577.752701.68994124.96999967.9499972630.44995183.26663267733.0880042190.287109
234.540001100.4700013469.87011724.70000189.9499973356.4899981.45494863004.1440042734.0271
334.32123.3300024232.04980524.440001112.5999984062.30004978.07197658245.2000043171.517822
434.080002147.1900025015.39990224.17136.1999974765.64990272.89366953166.2400043473.857178
533.84173.4900055868.04003923.860001161.5299995509.45996165.11788947117.2720043587.644043
632.959999201.8800056648.70019523185.8699956150.33984452.97487338098.1680043258.134766
