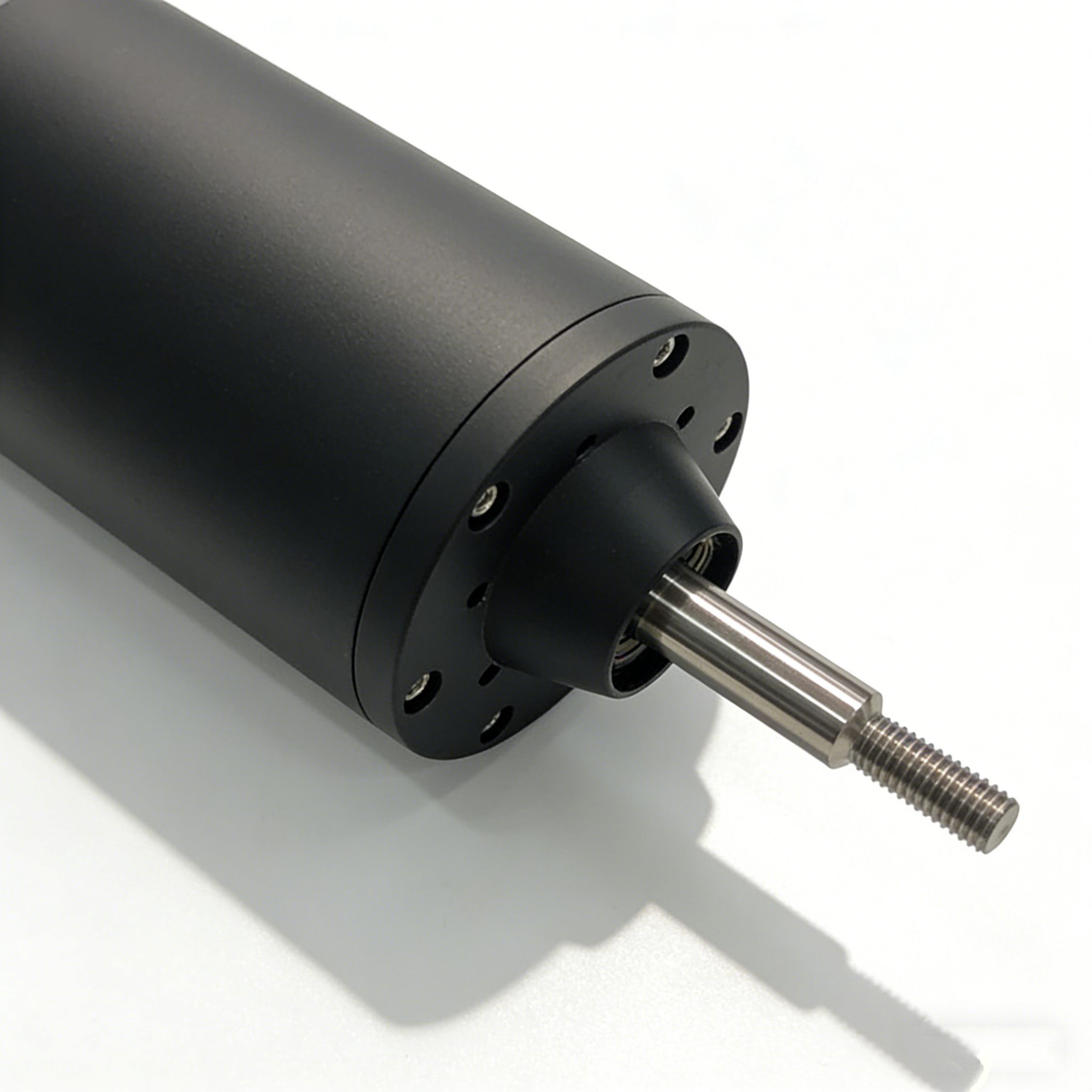

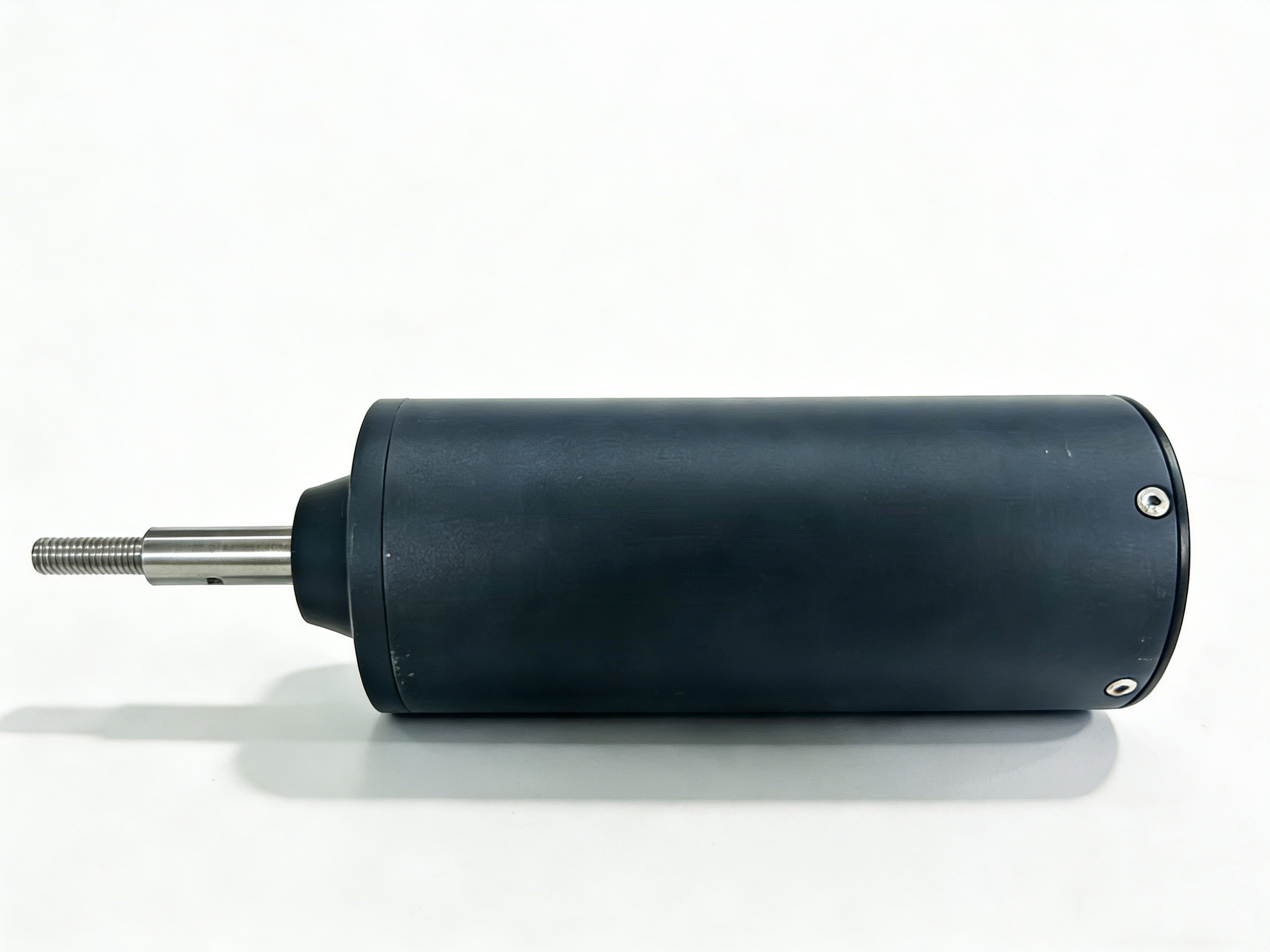

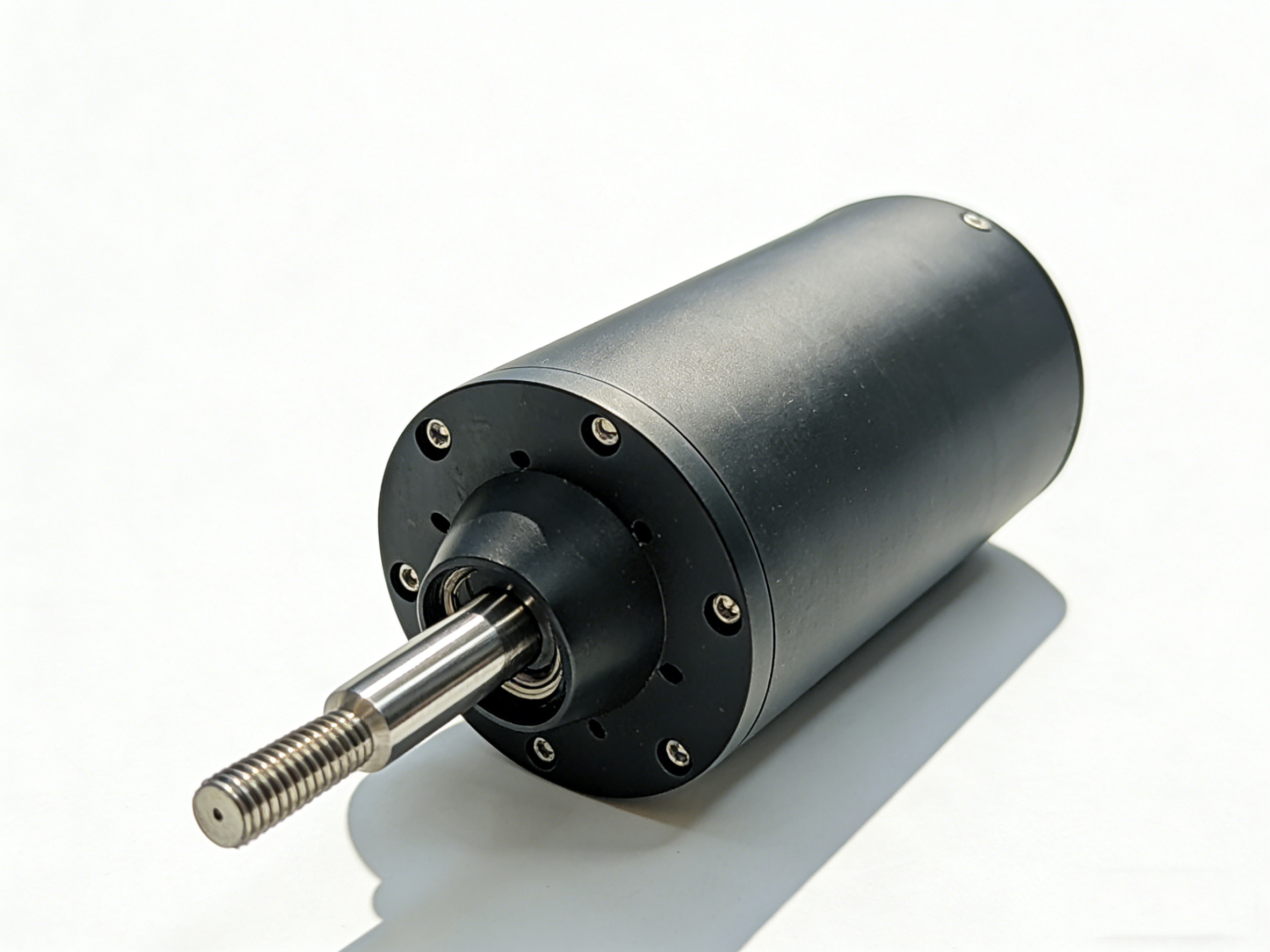

D65L161 Waterproof 60V 76kv 2500W Compact Brushless DC Motor


The Hobiba D65L161-WP-76KV is engineered for applications demanding exceptional low-speed torque, precise control, and reliable operation in wet or dusty environments. With an ultra-low KV rating of 76, this motor excels in direct-drive systems where high thrust at low RPM is critical, such as in heavy-lift underwater thrusters, industrial automation spindles, and high-torque electric winches. Featuring a robust 18N6P encapsulated core within a compact 65mm diameter, it delivers up to 10.6kW of power and 15.2 N·m of torque. Its unique IP68-rated waterproof sealing allows for permanent submersion, making it a durable and powerful solution for the most demanding marine and outdoor applications.
  • Peak Power: 10.6 kW
  • Peak Torque: 15.2 N·m
  • Max Speed: 12,768 RPM
  • Protection Rating: IP68
  • Weight: 2.5 kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • <100

  • Sensorless

  • 60V

  • < 120A

Waterproof Motor Brushless DC Motor Compact Motor 2500W Motor
Features
Specification
Dyno Tested Data
Dimension


Key Features

  • Ultra-Low 76KV Design: Optimized for maximum torque at low RPMs, ideal for direct-drive and high-load applications.

  • IP68 Fully Submersible Construction: Sealed design tested for permanent underwater operation and complete dust ingress protection.

  • Wide Ultra-High Voltage Range: Supports 10-40S LiPo systems (32-168V), allowing for efficient, high-power setups with low current draw.

  • High Torque Density: Delivers up to 15.2 N·m of torque from a compact 65mm diameter package.

  • High Efficiency: Achieves up to 92% efficiency, ensuring more power is converted to usable mechanical output with minimal heat.

  • Validated Performance: Dyno testing data confirms stable and efficient operation across a wide load range.



ParameterSpecification
Model NumberD65L161-WP-76KV
Motor TypeWaterproof Brushless (IP68)
Construction18N6P (Encapsulated Core)
Kv (RPM/V)76
Voltage Range32 - 168 VDC (10-40S LiPo)
Peak Power10.6 kW
Peak Torque15.2 N·m
Peak Current140 A
Max. Speed12,768 RPM
EfficiencyUp to 92%
Weight2.5 kg
Dimensions (Dia. x Length)D65 x L160 mm
Shaft Diameter10 mm
Lead Wires8 AWG x 2m
Connector8.0mm Plug
Design Life10,000 hours



D65L161-WP-60Kv -58Vdc
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage (V)M_Current
(A)		M_Input Power(W)M_Efficiency(%)M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
058.13999916.469999956.21002243.20000113.67945.83001780.90585338541.896004765.231873
158.09999824.0300011390.65002443.15000220.261378.63000583.18784336702.9840041146.852539
258.08000231.151791.68005443.09999826.581775.17004482.70858835054.0000041468.218018
358.02999938.6899992202.7600143.13999933.2400022182.7580.84332333385.0480041764.607666
45846.8600012629.12011743.5740.252608.2600177.73005732016.0480042027.401978
557.9851.982865.30004943.13999944.182837.92993274.85492730446.6640042124.330322


D65L161-WP-70Kv at 60Vdc
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage (V)M_Current
(A)		M_Input Power(W)M_Efficiency(%)M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
060.36000122.9599991385.31994645.02999919.421373.32995687.30003438063.0080041198.91748
160.29999929.5499991780.18005444.9325.2099991762.96997186.30833436473.9840041521.589966
260.2336.6699982203.30004944.88000131.732185.21997184.17520134745.0560041839.41333
360.1643.52605.37988344.8438.1300012582.89990281.28247133066.0640042099.444824
460.08000251.5299993071.12011744.8245.6699983046.30004977.12578631167.2000042349.48291
560.0258.740002347544.7552.2999993443.09008872.94588529428.1520042511.592529
D65L161-WP-80Kv at 60Vdc
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage (V)M_Current
(A)		M_Input Power(W)M_Efficiency(%)M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
060.45000119.2999991167.7700245.41999816.331158.7586.10485850251.896004997.740051
160.36999928.741735.80004945.2324.2800011722.0200288.08026148153.0080041516.759766
260.27999937.0999982235.7700245.0731.7000012217.46997187.81314146304.0160041947.22998
360.20000146.342787.54003944.95000140.252760.69995186.19319944315.1280042379.535645
460.11999954.6199993279.16992244.9348.1500023246.58007884.17769642536.1360042732.89624
560.04000162.7599983760.19995144.91999856.0800023722.61010781.61753840847.1040043038.302734
659.95000172.2699974316.56005944.93999965.3700034268.2700278.20627638918.1920043338.055176

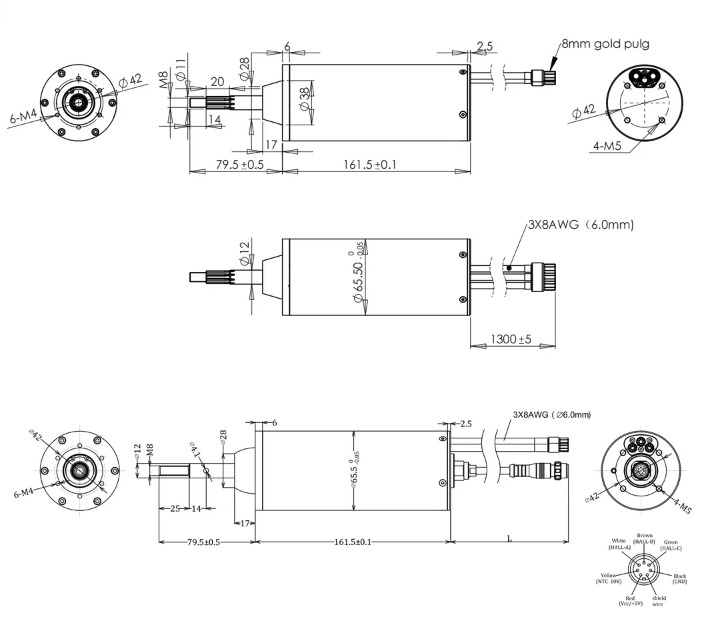

4955f82516049d3e8724fc2a9ecf1c67

Features
Specification
Dyno Tested Data
Dimension
