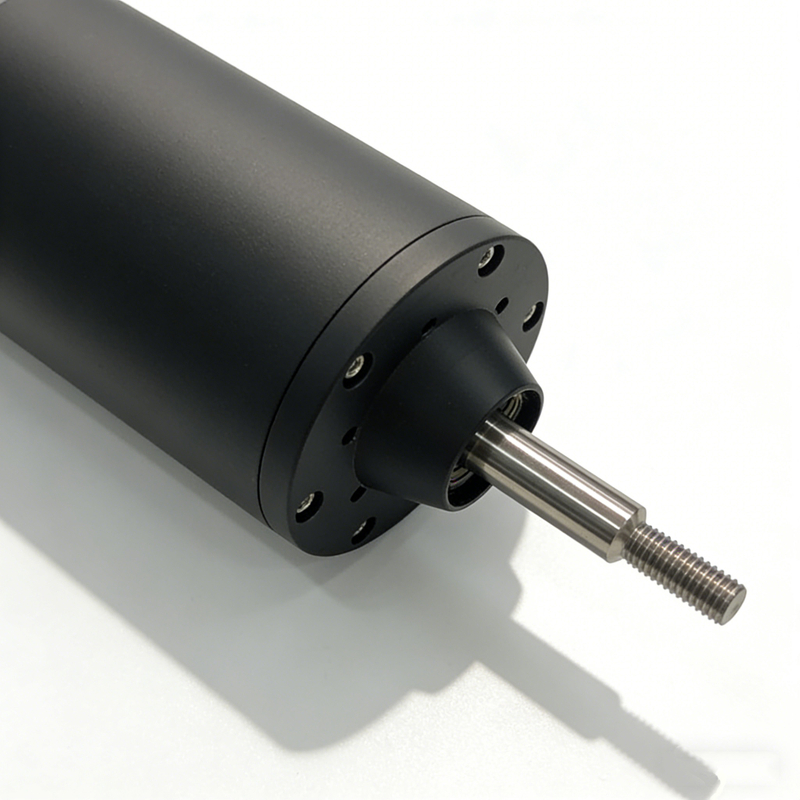

D65L161 Waterproof 14s 170kv 10kw Brushless DC Motor


The Hobiba D65L161-WP-170KV is a high-performance waterproof brushless motor engineered for a wide range of marine and personal watercraft applications. With a 170KV rating and optimized for 4-14S battery systems (12.6-58.8V), it delivers up to 10kW of power, balancing strong acceleration with efficient high-speed operation. Its IP68-rated sealing ensures complete protection against permanent submersion and dust, making it the ideal power core for electric surfboards (eFoil), jet boards, underwater thrusters, and small boat pod drives. The compact 65mm diameter design offers high power density for seamless integration into various propulsion systems.
  • Peak Power: 10.0 kW
  • Peak Torque: 12.0 N·m
  • Max Speed: 12,600 RPM
  • Protection Rating: IP68
  • Weight: 3.0 kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • 151-200

  • Sensorless

  • 60V

  • < 120A

Waterproof Motor Brushless DC Motor Marine Motor Electric Motor Underwater Thruster
Features
Specification
Dyno Tested Data
Dimension


Key Features

  • Optimized 170KV for Marine Use: Provides an excellent balance of speed and torque for dynamic water sports and efficient cruising.

  • IP68 Fully Submersible: Rated for permanent underwater operation, ensuring reliability in the harshest marine environments.

  • Wide Voltage Compatibility: Supports 4-14S LiPo packs (12.6-58.8V), offering flexibility for different performance and budget requirements.

  • High Power Density: Generates 10kW from a compact and lightweight package, ideal for space-constrained installations.

  • Proven Performance: Real-world dyno testing validates efficiency and power delivery across the operational range.

  • Versatile Application: Suitable for direct drive with propellers or as an integrated component in sealed outboard or pod drive units.



ParameterSpecification
Model NumberD65L161-WP-170KV
Motor TypeWaterproof Brushless (IP68)
Construction18N6P
Kv (RPM/V)170
Voltage Range12.6 - 58.8 VDC (4-14S LiPo)
Max. Power10.0 kW
Max. Torque12.0 N·m
Peak Current260 A
Continuous Current90 A
Max. Speed12,600 RPM
Weight3.0 kg
Dimensions (Dia. x Length)D65 x L160 mm
Housing MaterialBlack Anodized Aluminum Alloy
Design Life10,000 hours



D65L161-WP-170Kv at 45V
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage (V)M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
045.04999941.1300011850.56005933.22000134.5999981820.5200280.47266474731.8720041465.020996
144.97000160.342710.9799833.0751.8499982671.66992284.83315371383.0320042266.461914
244.90000277.1999973462.85009832.99000267.6200033407.16992285.42088368524.0560042910.43457
344.81000194.9499974250.58984432.95000184.824177.0200284.79817265655.1520043542.036621
444.720001113.9100045086.04003932.900002103.7399984990.68017682.9404662706.3040044139.292969
544.66129.0500035751.74023432.900002118.9899985634.20019580.87144560437.2000044556.458984
