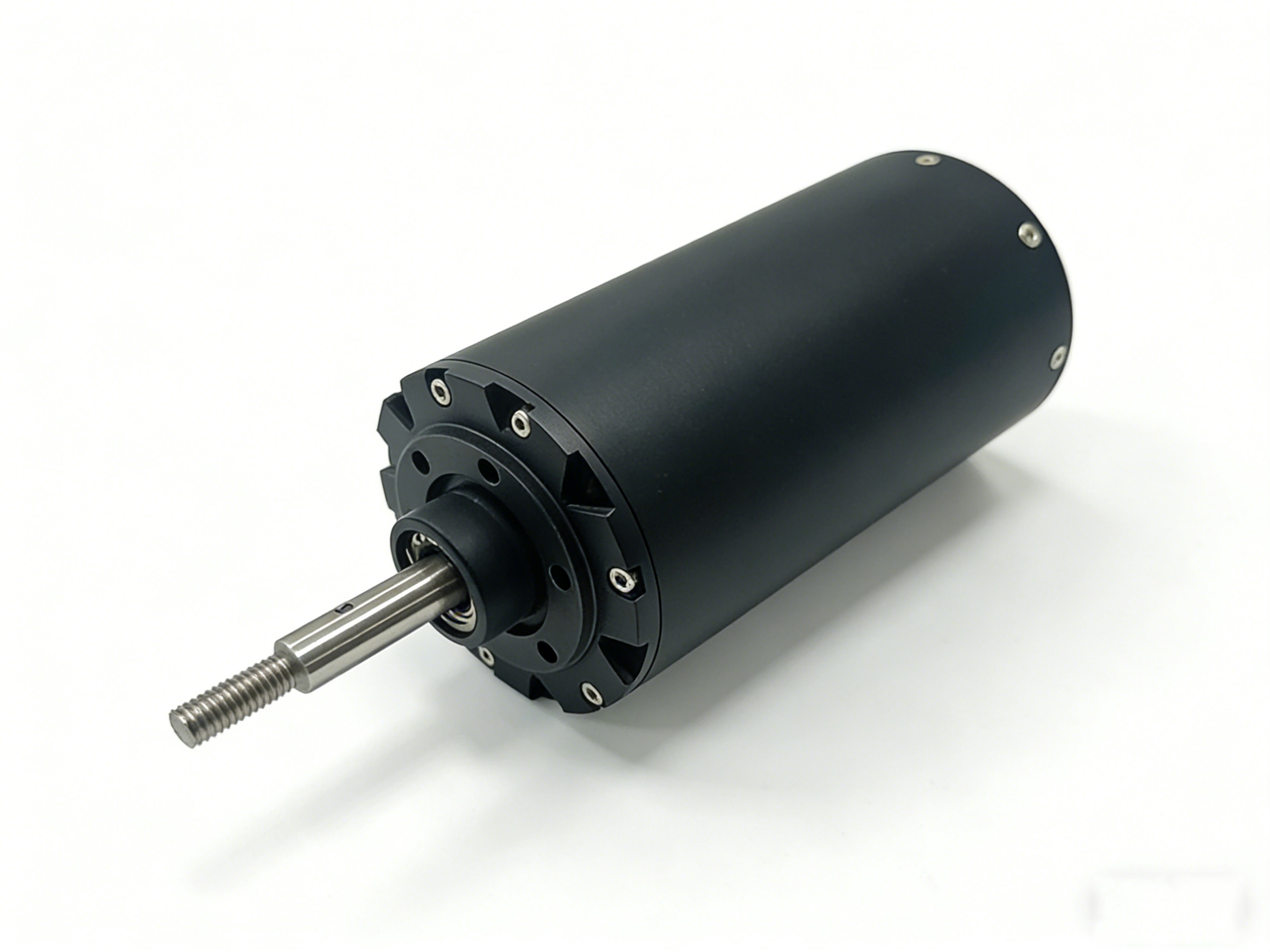

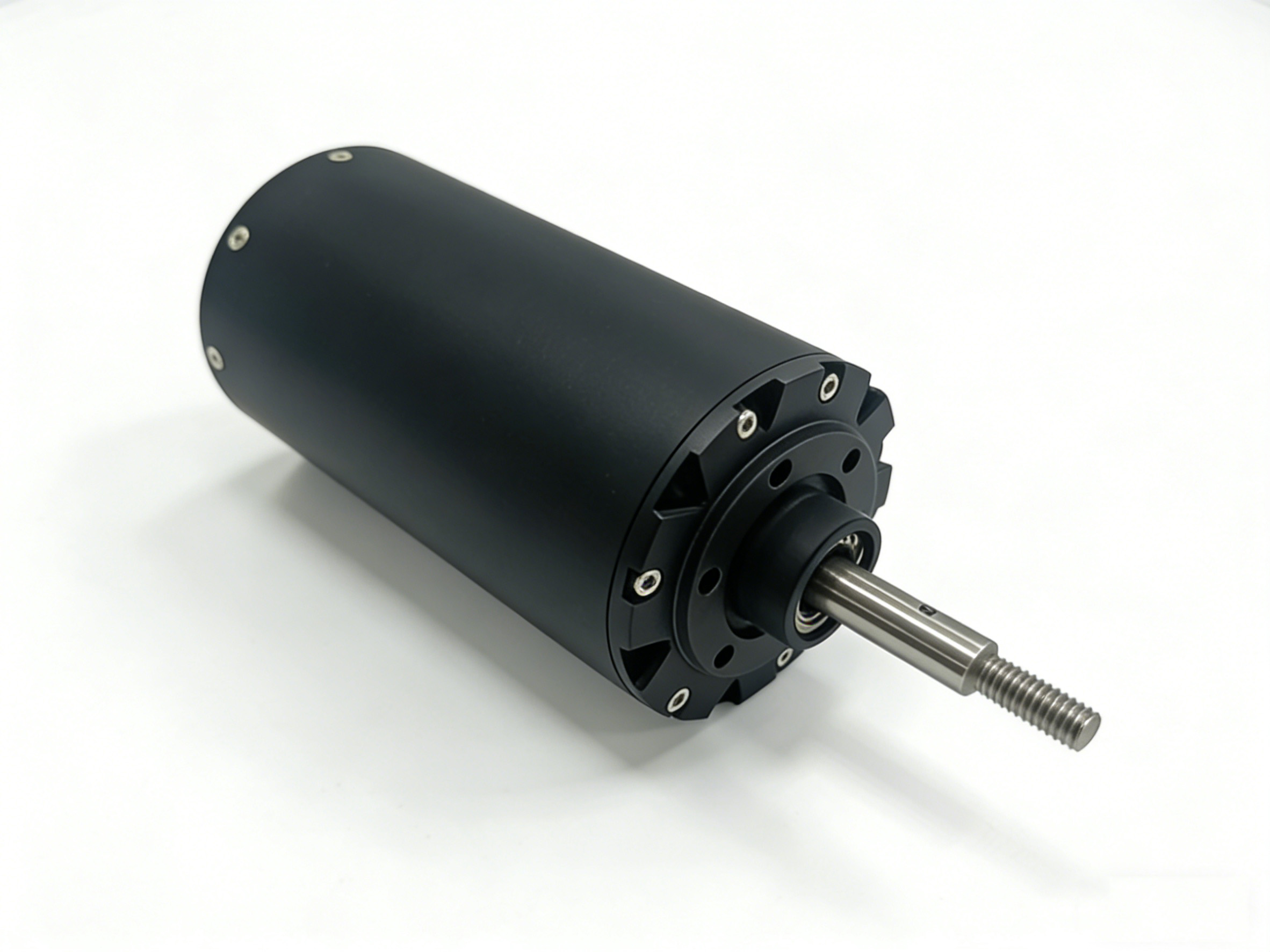

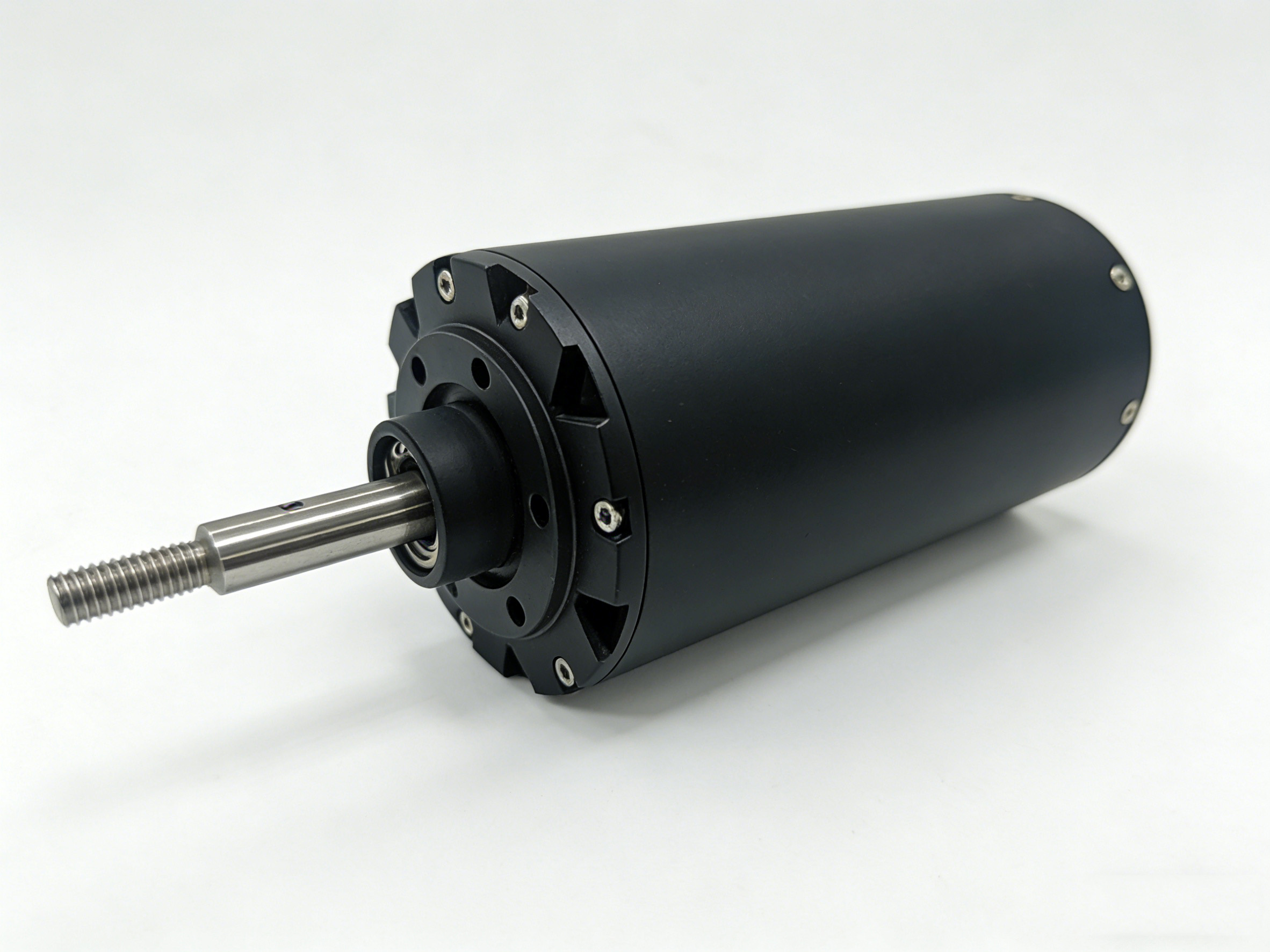

D85L165 Waterproof Quanly 40V 240kv 7000W Three-Phase Electric Motor

Designed for high-speed, gearless marine propulsion, the D85L165-WP-240KV motor delivers impressive power in a compact package. It provides up to 20 kW of peak power and 30 N·m of torque, capable of reaching 11,000 RPM. Ideal for jet propulsion systems in performance watercraft like jetboards and eFoils, its IP68-rated sealed construction ensures dependable operation when integrated into watertight drives, offering a blend of speed, power, and environmental resilience.

Peak Power: 20 kW
Peak Torque: 30 N·m
Max Speed: 11,000 RPM
Protection Rating: IP68
Weight: 3.9 kg

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
>200
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Three-Phase Electric Motor Waterproof Motor Marine Motor Outboard Motor

Key Features

Specification

Dyno Tested data

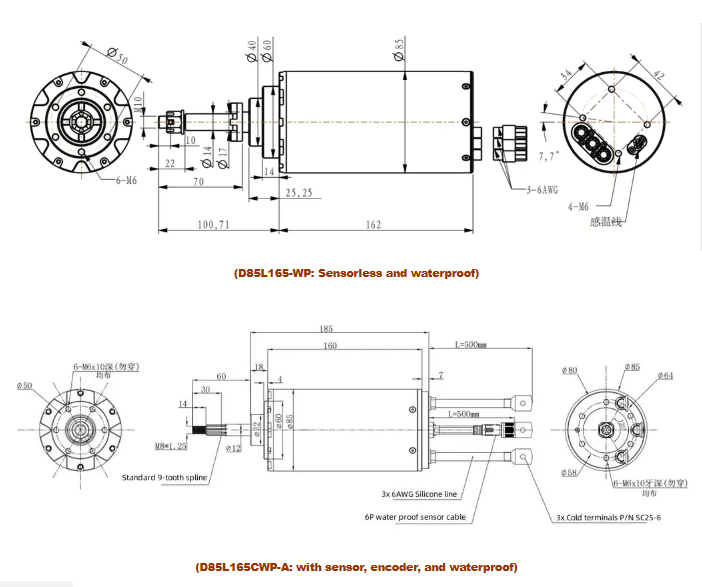

Dimension

Key Features

High-Speed Capability: Optimized for applications requiring high RPM in a compact form factor.
Gearless Direct Drive: Enables simple and efficient power transmission directly to the impeller or propeller.
Compact Powerhouse: Delivers 20kW peak power from an 85mm diameter motor.
Integrated System Ready: IP68 protection allows for reliable use within sealed propulsion units.

Item	Specification
Model	D85L165-240Kv
Working Voltage Range	6-12S
Max. Free Speed	Not specified in provided data
Speed Constant (Kv)	240 (Estimated from model)
Torque Constant (Kt)	Not specified in provided data
No Load Current	Not specified in provided data
Max. Output Power	20 kW
Peak Torque	30 N·m
Peak Current	Not specified in provided data
Continuous Current	up to 580 A
Max. Motor Efficiency	>88%
Weight	3.9 kg
Configuration	12 Slots/10 Poles
Cooling Solution	Not specified in provided data
Dimension (Dia. x Length)	D85 x L165 mm
Max. Working Temperature	Not specified in provided data
Insulation Voltage & Leak Current	Not specified in provided data
Shaft Output	Not specified in provided data
Lead Wires Extension	Not specified in provided data
Connector	Not specified in provided data
Life Span	10,000 H

D85L165-S-WC at 240Kv
Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	M_Voltage (V)	M_Current (A)	M_Input Power(W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power(W)
0	39.849998	77.599998	3090.080078	29.379999	66.349998	3038.949951	91.832756	7702	3.459996	2790.751465
1	39.669998	114.599998	4544.669922	29.120001	101.5	4453.370117	92.113716	7254	5.399995	4102.164551
2	39.48	157.630005	6221.02002	28.969999	144.889999	6064.540039	91.247566	6792	7.779995	5533.745117
3	39.330002	215.240005	7937.290039	29.26	196.160004	7632.930176	87.90937	6565	9.759995	6710.061035
