Hobiba eJet95-10.0 Integrated Waterjet Propulsion System High-Thrust, Linear Design Electric Waterjet for Personal Watercraft

eJet95-10.0 Integrated High-Thrust Linear Electric Waterjet (for PWC)

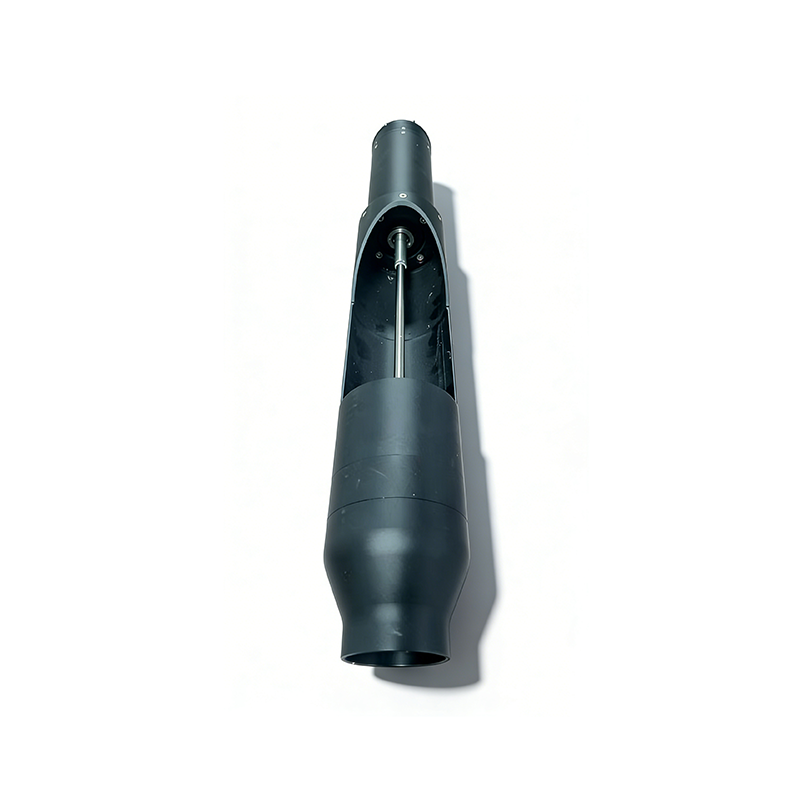

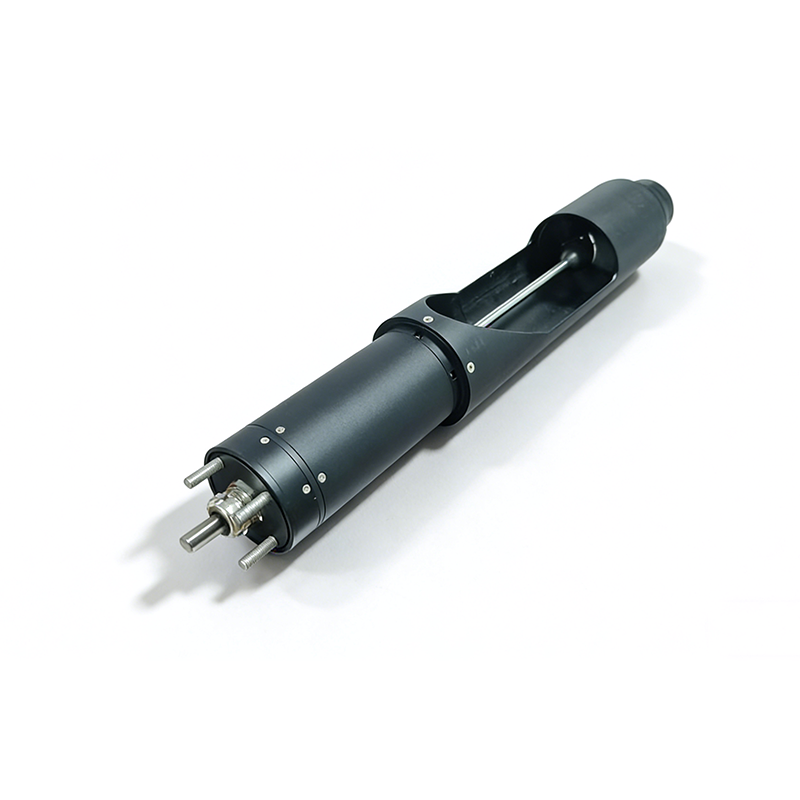

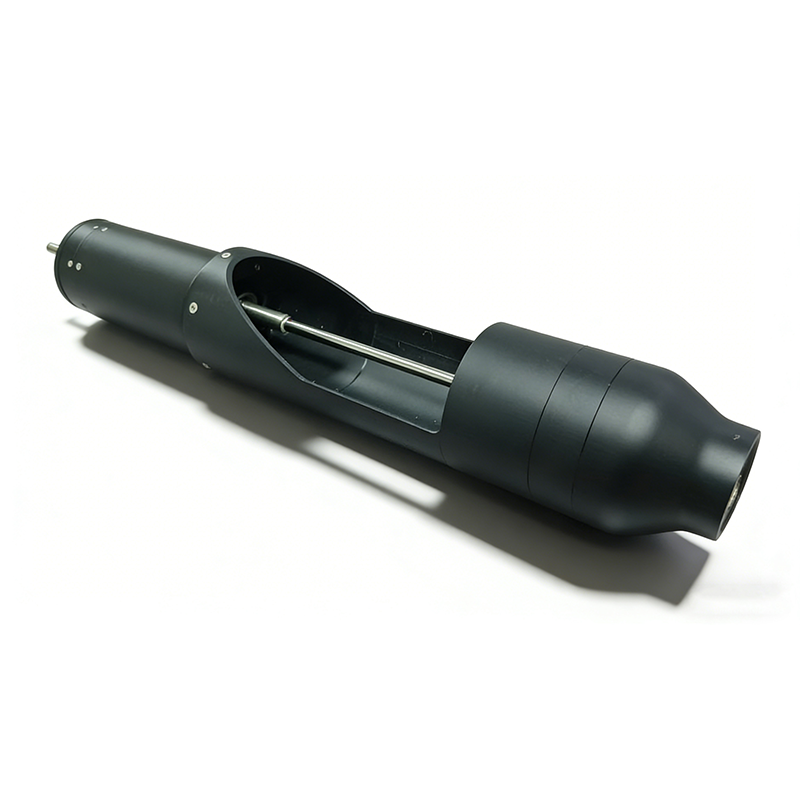

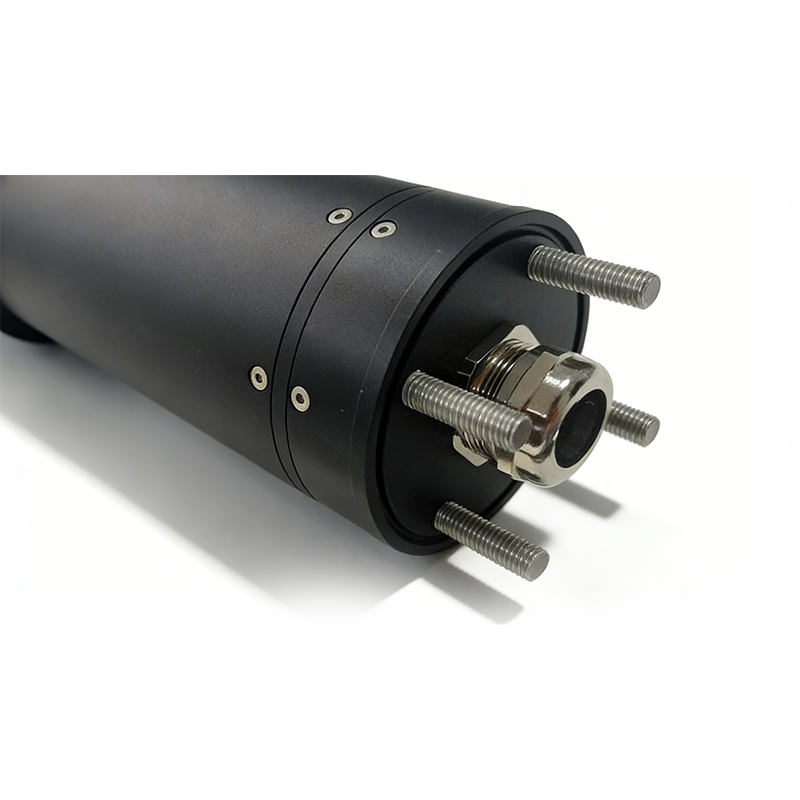

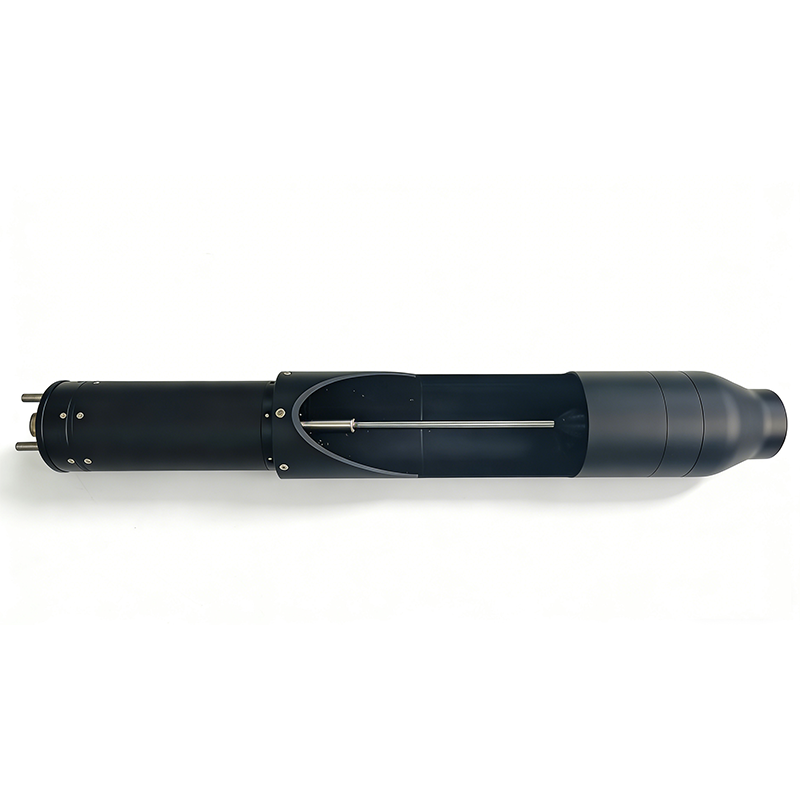

The Hobiba eJet95-10.0 is a compact, high-performance integrated waterjet propulsion system, engineered for the next generation of personal watercraft and light marine vehicles. Utilizing an innovative linear design, it seamlessly merges a high-efficiency permanent magnet brushless motor with a precision jet pump into a single, robust IP68-rated unit. Delivering up to 81 kgf of thrust and speeds capable of exceeding 50 km/h, it provides exhilarating acceleration and top-end performance for applications like electric jetboards and karting boats. Its fully-submerged motor design ensures efficient cooling and quiet operation, while the all-aluminum 6061-T6 construction guarantees durability in saltwater environments. The eJet-10.0 represents a turnkey, high-power density solution that simplifies integration and unleashes powerful, electric propulsion on the water.

Max. Speed:50km/h
Max. Thrust:81 kgf
Max. Speed:10,920 rpm

Quantity:
Availability:





Inquire Add to Basket

System Types:
Waterjet Pump
Kv:
<100
Controller Type:
Sensorless
Maximum Voltage:
72V
Maximum Continuous Current:
< 120A

electric waterjet PWC waterjet propulsion System High-Thrust Waterjet personal watercraft motor

Features

Specification

Dyno Tested Data

Dimension

Key Features

All-in-One Linear Jet Design: Motor and jet pump are fully integrated into a compact, lightweight (8.8 kg) unit for easy installation.
High Power & Thrust: Delivers up to 10kW input power, generating a maximum thrust of 81 kgf for powerful acceleration.
Wide Voltage Operation: Compatible with 60V, 72V, and 84V battery systems (14S-20S LiPo), offering design flexibility.
IP68 Fully Submersible: The entire unit is rated for continuous underwater operation, perfect for jet-driven applications.
High-Speed Capability: Engineered for high-RPM operation, supporting craft speeds over 50 km/h.
Real-World Validated Performance: Extensive underwater testing provides verified data on thrust, efficiency, and power across the entire throttle range.

Parameter	Specification
Model Number	eJet95-10.0
Jet Type	Motor-Integrated Axial Flow Waterjet
Voltage Range	60 - 84 VDC
Rated Current	120 A
Peak Current	240 A
Maximum Thrust	81 kgf
Maximum Speed	10,920 rpm
Max. Speed	50km/h
Impeller Diameter	95 mm
Motor Type	Permanent Magnet Brushless DC (12S10P)
Motor KV	130
Waterproof Rating	IP68
Housing Material	Aluminum 6061-T6
Dry Weight	8.8 kg
Dimensions (LxDia)	642 mm x 102 mm

Under water testing
Voltage (V)	Current (A)	Input Power (W)	Motor speed (RPM)	Thrust (kgf)	Throttle (%)	Thrust/Power (Kgf/kw)
60	2	120	1441	3.1	20	25.83
60	5	300	2173	7.1	30	23.67
60	9	540	2883	10.9	40	20.19
60	16	960	3571	16.7	50	17.40
60	28	1680	4225	24.6	60	14.64
60	36.6	2196	4800	30.2	70	13.75
60	52	3120	5454	38.9	80	12.47
60	70	4200	6000	47.2	90	11.24
60	99	5940	6493	57.2	100	9.63
72	3	216	1760	5.5	20	25.46
72	9	648	2598	11.5	30	17.75
72	15	1080	3259	15.7	40	14.54
72	20	1440	4068	18.4	50	12.78
72	40	2880	5130	30.5	60	10.59
72	60	4320	5785	42.6	70	9.86
72	92	6624	6238	55.5	80	8.38
72	118	8496	6946	64.6	90	7.60
72	140	10080	7872	74.3	100	7.37
84	3.4	285.6	1876	6.5	20	22.76
84	9.2	772.8	2745	13.6	30	17.60
84	16.1	1352.4	3565	20.2	40	14.94
84	23	1932	4366	25.6	50	13.25
84	45.3	3805.2	5537	41.9	60	11.01
84	66.9	5619.6	6189	51.5	70	9.16
84	93.6	7862.4	7006	65.9	80	8.38
84	128.7	10810.8	7908	75.6	90	6.99
84	158	13272	8385	81.1	100	6.11

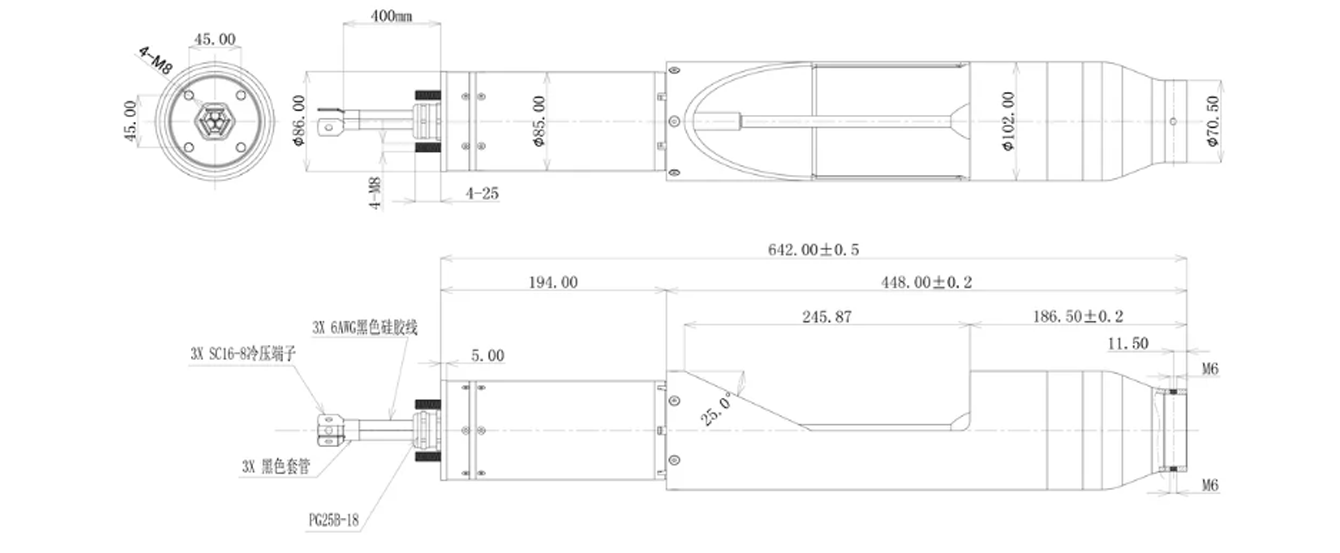

Compact and streamlined: Total length 642 mm with a 102 mm diameter housing. The linear design and standard mounting interfaces allow for straightforward installation in various hull types.

(Detailed CAD drawings with mounting specifications are available upon request.)
