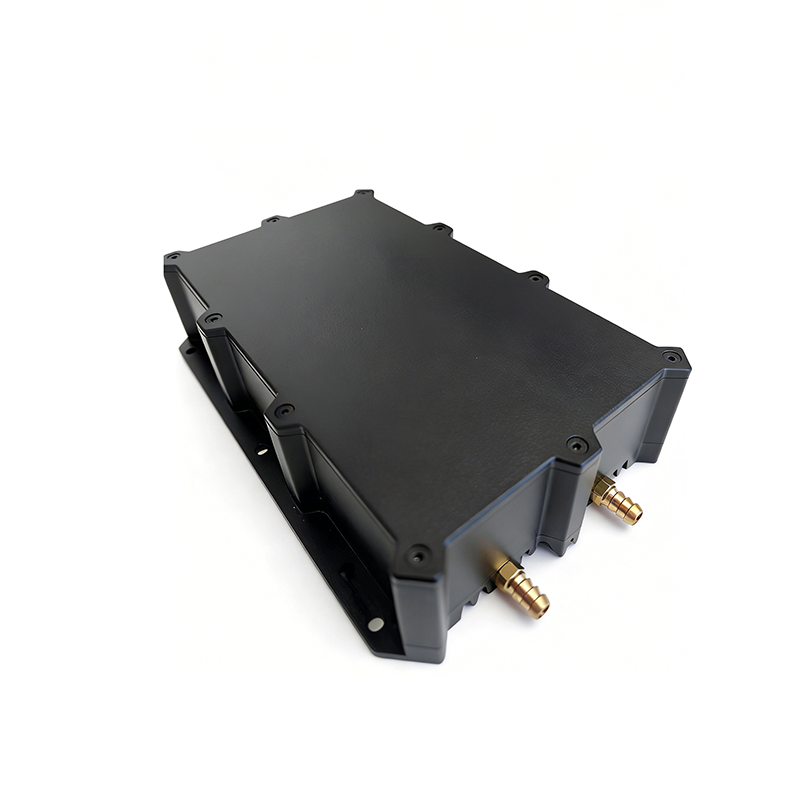

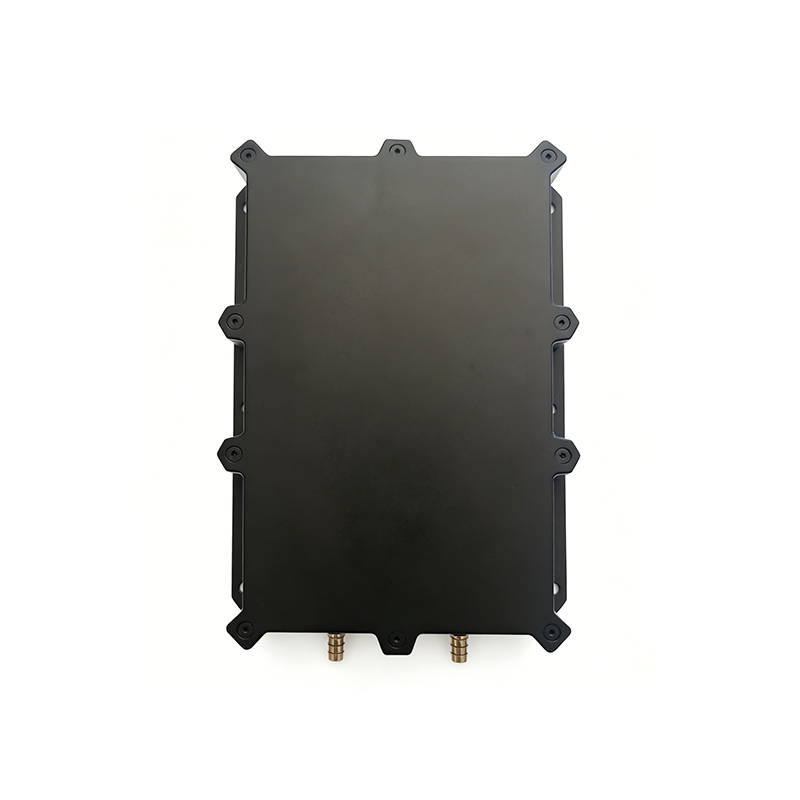

Quanly 84V 300A Brushless ESC Motor PWM Controller

The Hobiba HB-300A-84V-SL-WP-WC represents the pinnacle of high-voltage, high-current marine propulsion control, engineered for extreme applications. It is the definitive power solution for high-performance electric surfboards, jet boats, racing go-kart boats, and unmanned underwater vehicles (UUVs) that demand uncompromising reliability and brute force.
This controller delivers unprecedented power, combining an 84V operating voltage with a massive 300A continuous and a staggering 1000A burst current. Its core innovation is a sophisticated dual-cooling system, integrating efficient water-cooling channels within a rugged, hard-anodized 6061 aluminum IP67 waterproof housing. This design ensures sustained, full-power output without thermal limitations. Beyond raw power, it offers extensive programmability—including adjustable motor timing, throttle curves, and configurable protection thresholds—allowing precise tuning to match any high-performance motor and application. With comprehensive safeguards and CAN bus communication, it is built to dominate in the most demanding marine environments.

Max. Voltage:84V
Max. Continuous Current:300A
Protection Rating:IP67

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
<100
Controller Type:
Sensorless
Maximum Voltage:
84V
Maximum Continuous Current:
>160A

Electric Motor Controller ESC Electric Speed Controller PWM Brushless Controller Water-cooled Controller

Features

Specification

Wiring Diagram

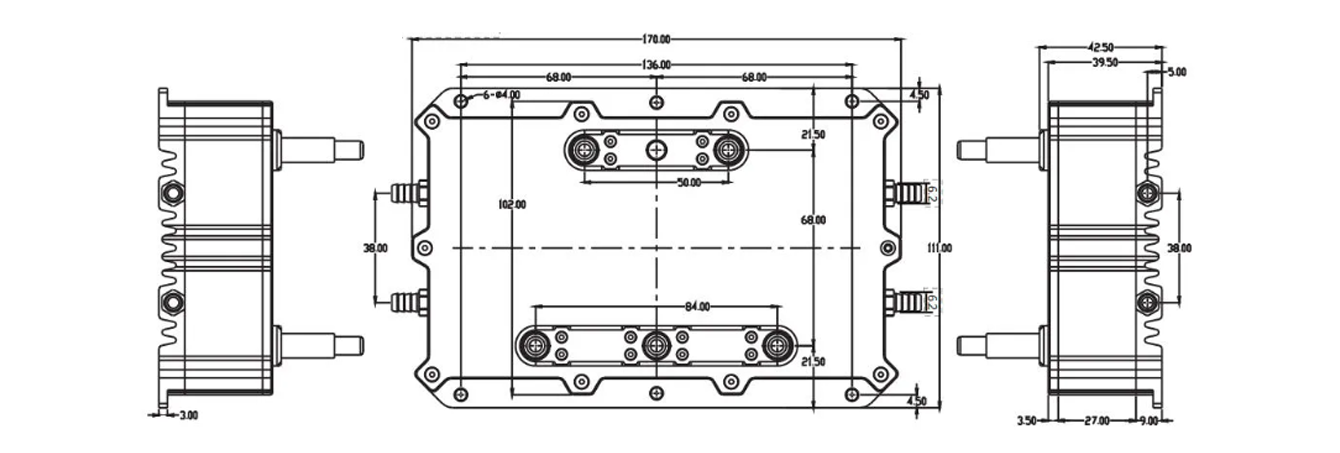

Dimension

Key Features

300A Continuous / 1000A Burst: Extreme power output for 10-20S LiPo systems (42-84V).

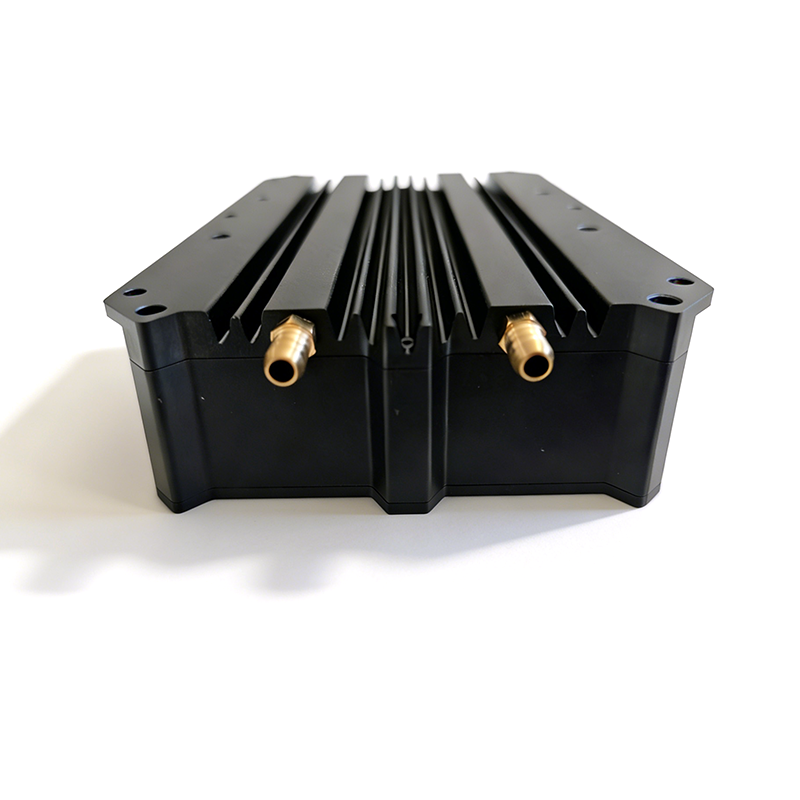

Integrated Water-Cooling Design: Hard-anodized 6061 aluminum housing with built-in cooling pipes for sustained high-load performance.
High-Voltage Operation (84V): Enables high power with lower current for increased system efficiency.
IP67 Waterproof & Rugged: Fully submersible and built to withstand harsh marine environments.
Comprehensive Protection Suite: Includes stall, over-current, short-circuit, and over/under-voltage protection.
CAN Bus Support: For advanced telemetry and system integration.
Fully Programmable: Adjust operation mode, timing, acceleration, and protection via programming tools.

Specification	Detail
Part Number	HB-300A-84V-SL-WP-WC
Controller Type	Brushless, Sensorless (FOC)
Max. Continuous Current	300A
Max. Burst Current	1000A (for 10 seconds)
Input Voltage Range	42 - 84 VDC
LiPo Cell Count	10S - 20S
BEC Output	5V / 1A
PWM Signal Input	3.3V / 5V; 50-500Hz
Communication	CAN Bus
Protection Rating	IP67
Cooling Solution	Integrated Water Cooling + Aluminum Heatsink Case
Housing Material	Black Hard-Anodized 6061 Aluminum
Weight	1145 g
Dimensions	136 x 96 x 51 mm (approx.)

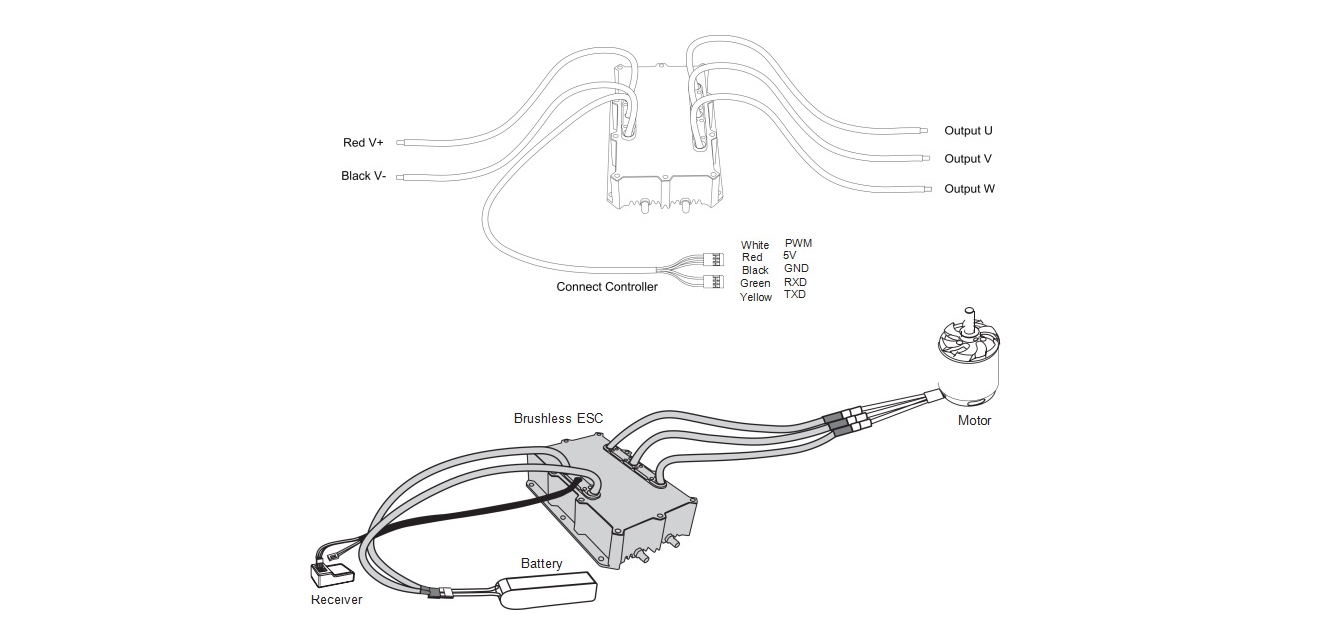

Refer to the included diagram for correct connection of battery, motor, water-cooling lines, and control signals to ensure safe operation and unlock full performance.
