Key Features
300A Continuous / 500A Burst Current
Advanced 16-bit FOC Processor
IP67 Full Waterproof & Dustproof
Wide 30-60V (10-14S LiPo) Input
Flexible Forward or Forward/Brake Modes
User-Friendly Throttle Calibration & Programming
Multi-Cooling Ready (Heatsink/Fan/Water)
Comprehensive Protection Suite
Dual Switch Mode BEC (5V/1.5A & 14V/200mA)
Specification | Detail |
Part Number | HB300A60V-SL-WP |
Max. Continuous Current | 300A |
Max. Burst Current | 500A |
Input Voltage | 30 - 60 VDC |
LiPo Cell Count | 10S - 14S |
BEC Output | 5V / 1.5A & 14V / 200mA (Switch Mode) |

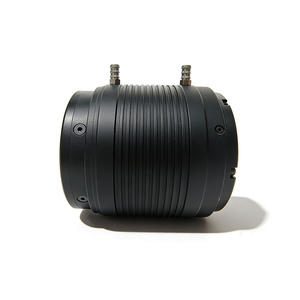

Compatible Motors | D85L165, D107L125, D107L165, D126L200 |
Motor Wire Gauge | 4 AWG |
Dimensions (LxWxH) | 136 x 96 x 51 mm |
Weight | 1.0 kg |
Protection Rating | IP67 |

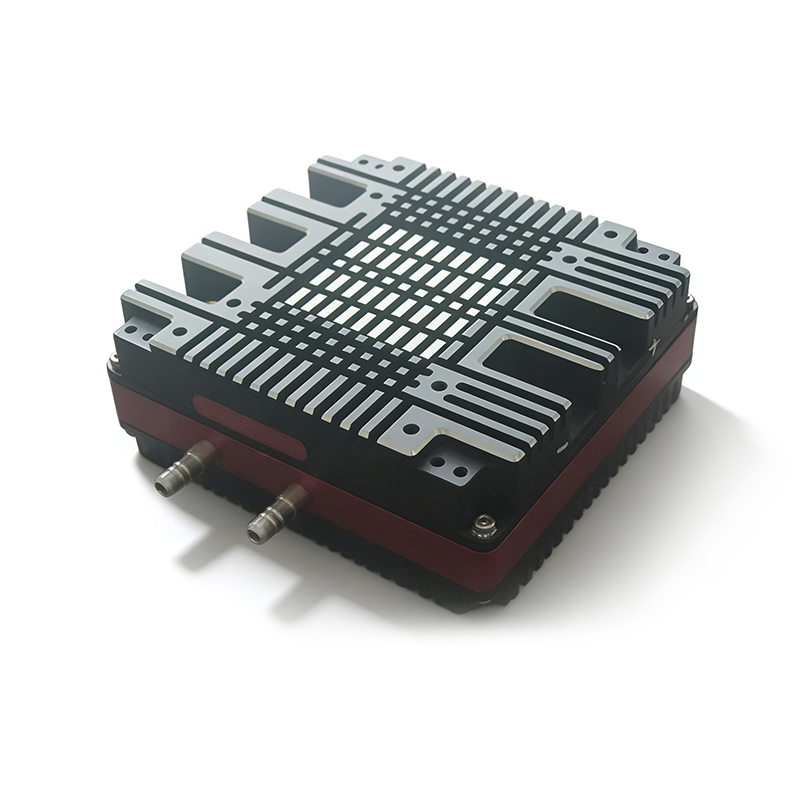

Cooling | Heatsink Plate (Fan/Water Cooling Optional) |
Signal Input | PPM (1-2ms) |

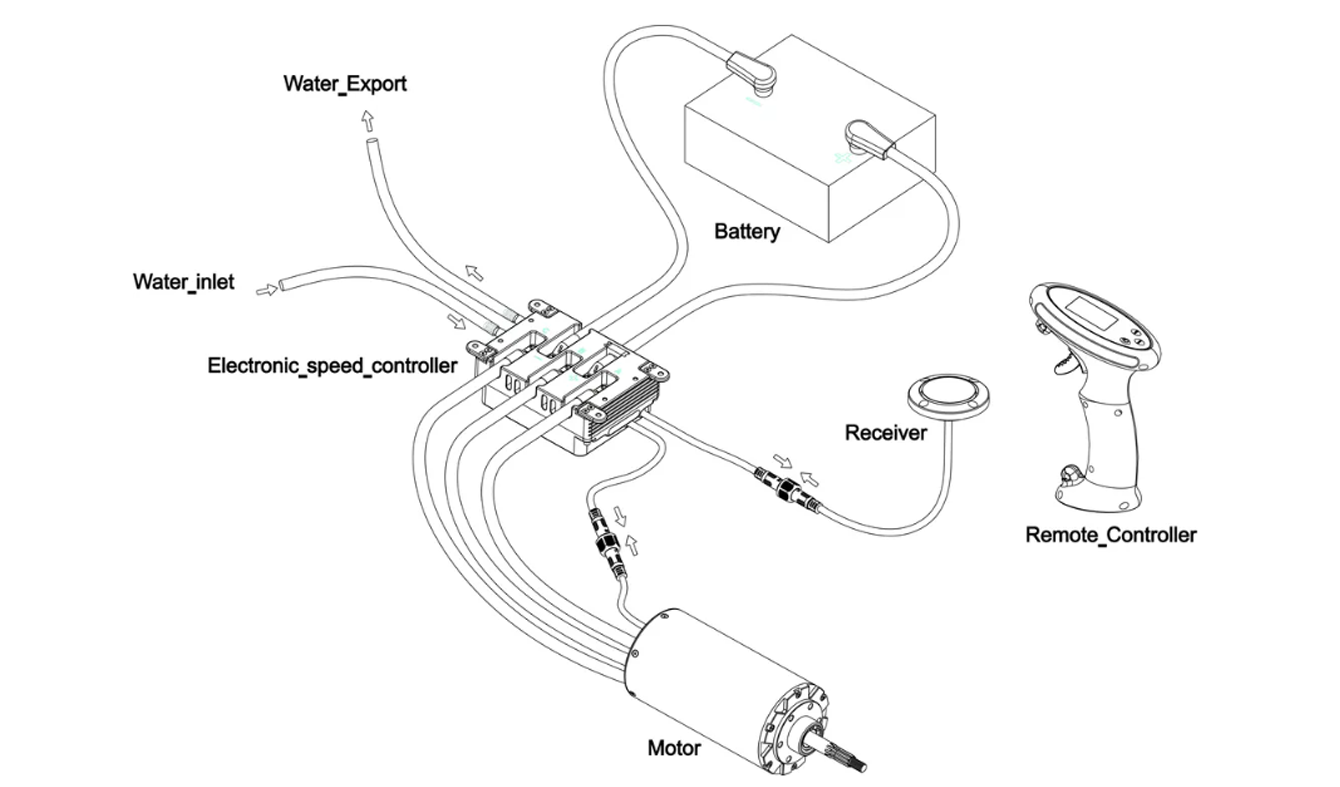

Refer to the diagram below for the correct connection of battery, motor, and receiver to ensure safe and optimal performance of the 300A system.

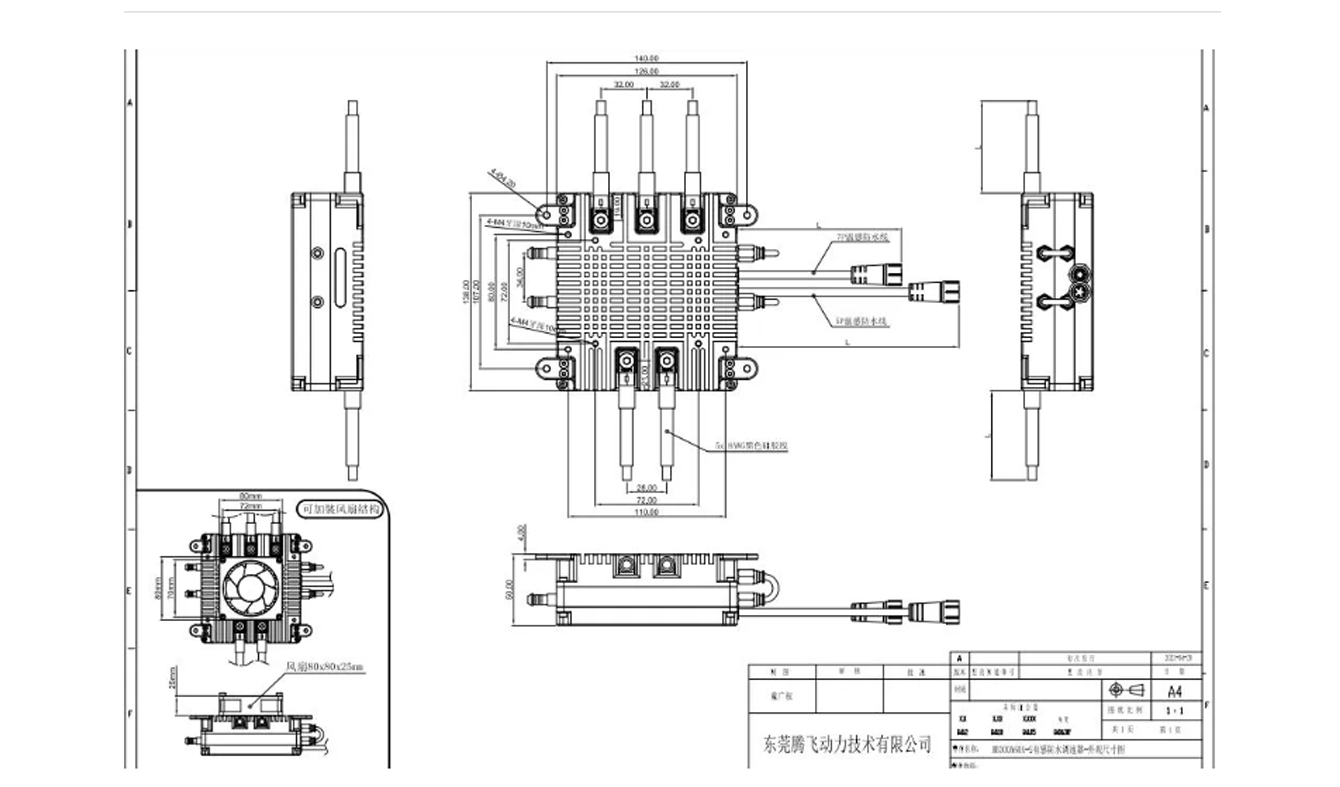

136 x 96 x 51 mm
