Hobiba ePod-8.0 Integrated Electric Propulsion System High-Efficiency 6000W Shaft Power All-in-One Outboard Drive

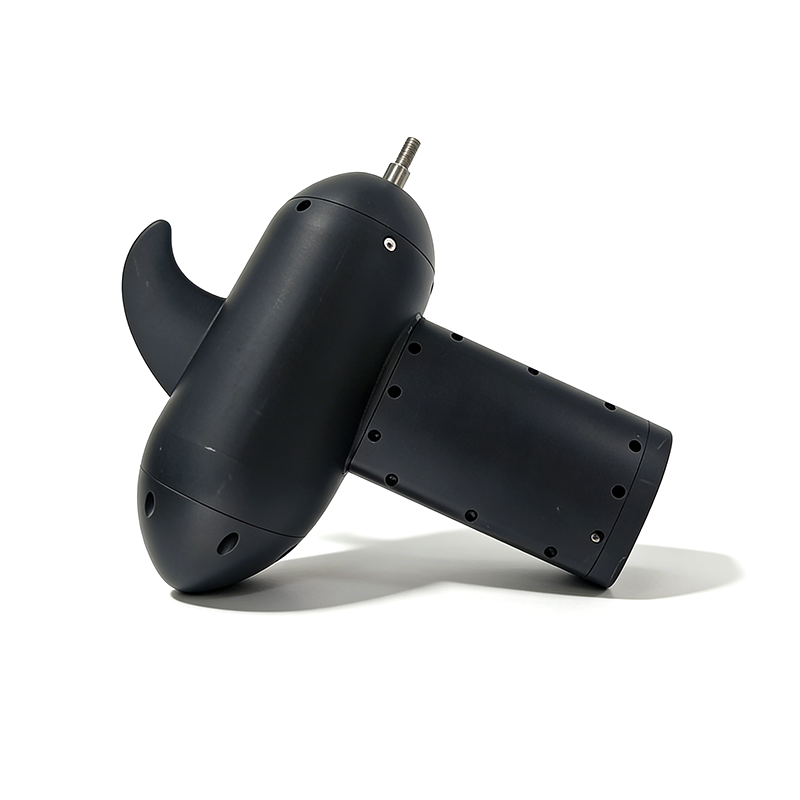

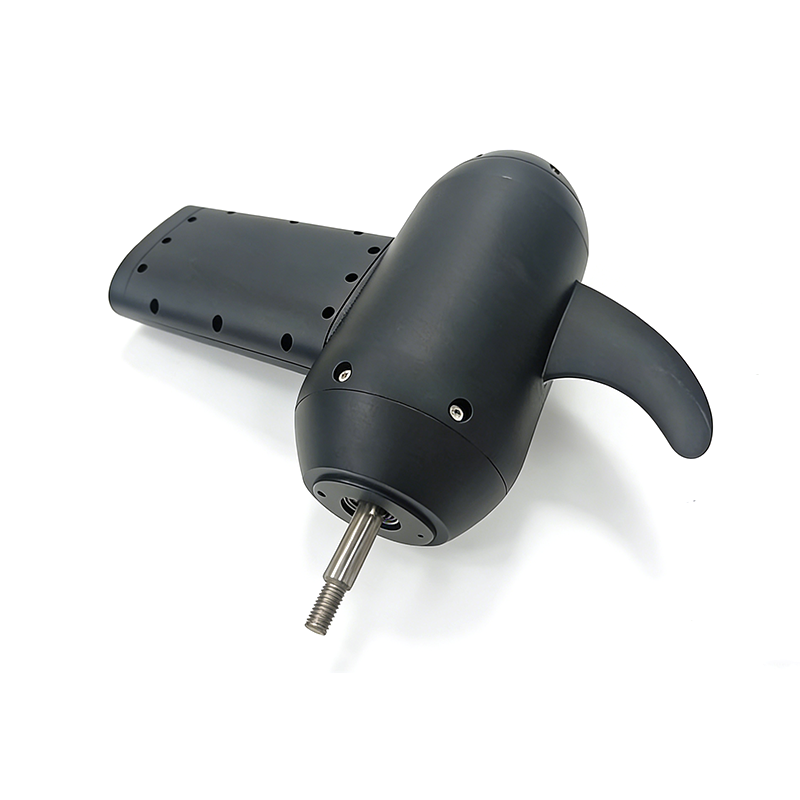

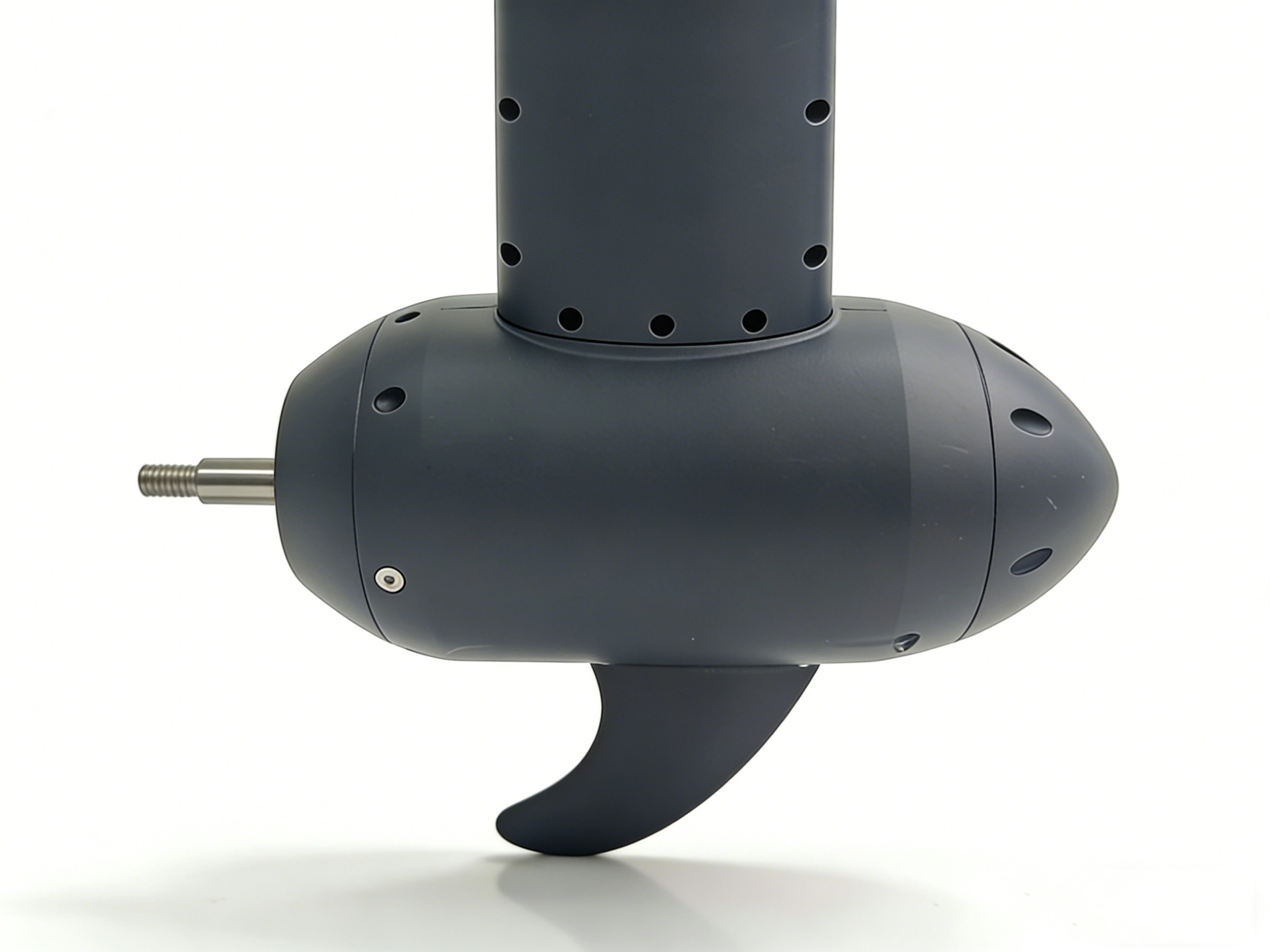

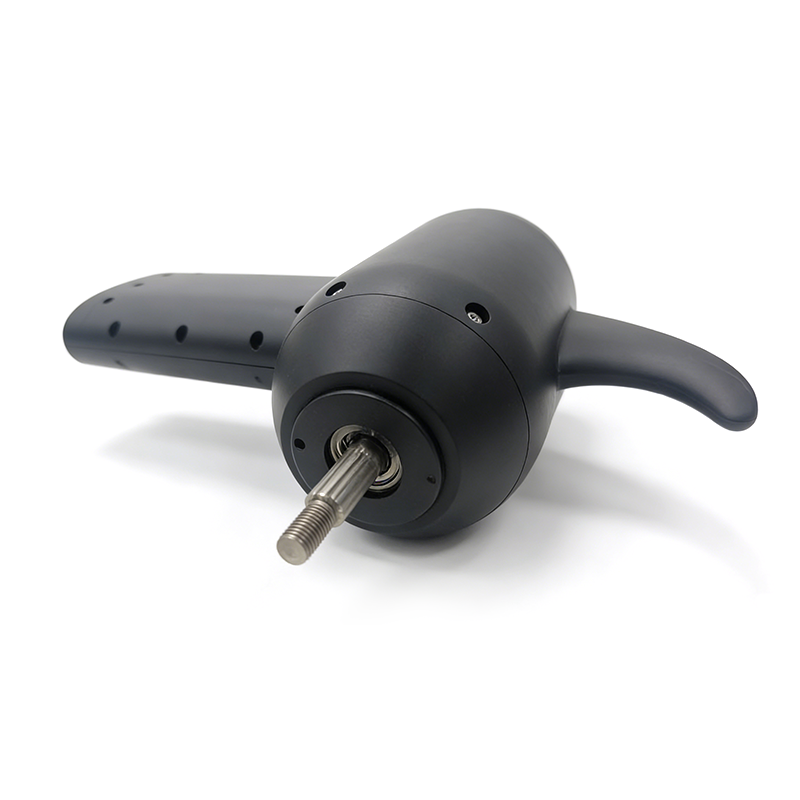

ePod-8.0 8000W High-Efficiency Integrated Electric Outboard Motor

The Hobiba ePod-8.0 is a complete, high-performance integrated propulsion unit engineered for the marine industry. Merging a high-efficiency permanent magnet brushless motor, a dedicated marine ESC, and a optimized 5-blade propeller into a single, compact IP68 waterproof housing, it delivers a robust 6000W of shaft power. Designed for seamless integration, it is the ideal drop-in solution for building new electric outboard motors or converting existing 20-25HP gasoline outboards. With a remarkable motor efficiency up to 88% and a maximum static thrust of 180kg, the ePod-8.0 offers powerful, quiet, and environmentally friendly propulsion, enabling longer range and superior performance for electric boats.

Max. Static Thrust:180 kg
Input Power:8000W
Rated Speed:1500 rpm

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
<100
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Electric Outboard Motor eFoil Motor Underwater Pod Drive Underwater Thruster Electric Propulsion System Outboard Drive

Features

Specification

Dyno Tested Data

Dimension

Key Features

All-in-One Integrated Design: Combines motor, ESC, and propeller in a single unit for simplified installation and reliability.
High Efficiency & Power: Delivers 6000W shaft power with motor efficiency up to 88%, maximizing runtime and performance.
High Static Thrust: Generates up to 180kg of static thrust for strong acceleration and handling.
Robust Marine Construction: Features IP68 submersible rated housing made of anodized aluminum 6061-T6 for saltwater corrosion resistance.
Optimized Propeller: Includes a matched 5-blade, 12.7-inch diameter propeller for balanced thrust and efficiency.
Compact & Lightweight: Complete unit weighs only 14.5kg, facilitating easy integration and handling.
Quiet Operation: Produces low noise levels below 50 dB for a peaceful boating experience.

Parameter	Specification
Model Number	ePod-8.0
Motor Type	Permanent Magnet Brushless DC Motor
Input Power	8000W
Shaft Output Power	6000W @ 1360 rpm
Max. Static Thrust	180 kg
Working Voltage	50 VDC (10S-14S LiPo Typical)
Max. Current	172 A
Rated Speed	1500 rpm
Motor Efficiency	Up to 88%
Propeller	5-Blade, 12.7 inch (322.6 mm) Diameter
Protection Rating	IP68
Housing Material	Anodized Black Aluminum 6061-T6
Net Weight	14.5 kg
Package Dimensions	75 x 60 x 45 cm

First Data (Bench Test):

Measures the motor's electrical efficiency and power output under controlled lab conditions without water.

Item	C_Voltage (V)	C_Current (A)	C_Input Power (W)	M_Current (A)	M_Input Power (W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power (W)
0	50.099998	33.16	1570.709961	30.02	1538.900024	92.484047	1925	7.059995	1423.237061
1	50.02	49.200001	2347.5	41.400002	2305.800049	93.179276	1855	11.059996	2148.527832
2	49.939999	65.029999	3103.219971	53.779999	3054.350098	92.588356	1786	15.119995	2827.972656
3	49.860001	80.32	3824.5	66.410004	3759.22998	91.411247	1718	19.099995	3436.358887
4	49.799999	95.110001	4517.680176	79.269997	4431.540039	90.179817	1652	23.099995	3996.354736
5	49.720001	110.279999	5219.169922	92.940002	5106.430176	88.386314	1588	27.139996	4513.385254
6	49.650002	125.07	5895.850098	106.57	5757.669922	86.376328	1527	31.099995	4973.263672
7	49.580002	140.600006	6602.810059	121.080002	6431.359863	84.102699	1469	35.159996	5408.947266
8	49.529999	155.759995	7290.870117	135.470001	7084.430176	81.884033	1416	39.119995	5801.01709
9	49.459999	172.350006	8038.859863	151.460007	7791.350098	78.888527	1358	43.219994	6146.481445
10	49.400002	189.600006	8808.969727	168.419998	8512.660156	75.421288	1300	47.159996	6420.35791

Second Data (Underwater Test):
Shows the thruster's real-world thrust and speed in water, plus thrust per kilowatt for practical performance.

Voltage（V）	Current （A）	Input Power （W）	Motor speed（RPM）	Thrust （kgf）	（Throttle）	Thrust/Power(Kgf/kw)
50	1	50	311	8.1	20	162.00
50	6	300	476	15.5	30	51.67
50	15	750	679	30.5	40	40.67
50	26	1300	811	54.2	50	41.69
50	46	2300	947	69.7	60	30.30
50	66	3300	1049	84.2	70	25.52
50	88	4400	1172	109.3	80	24.84
50	126	6300	1219	130.2	90	20.67
50	162	8100	1357	152.6	100	18.84

Voltage （V）	Current （A）	Input Power （W）	Motor speed（RPM）	Thrust （kgf）	（Throttle）	Thrust/Power(Kgf/kw)
60	2	120	380	8.9	20	74.17
60	8	480	600	25.8	30	53.75
60	21	1260	769	49.1	40	38.97
60	39	2340	955	68.6	50	29.32
60	65	3900	1111	98.1	60	25.15
60	96	5760	1271	124.4	70	21.60
60	125	7500	1456	140.5	80	18.73
60	176	10560	1578	178.5	90	16.90
60	206	12360	1666	198.3	100	16.04

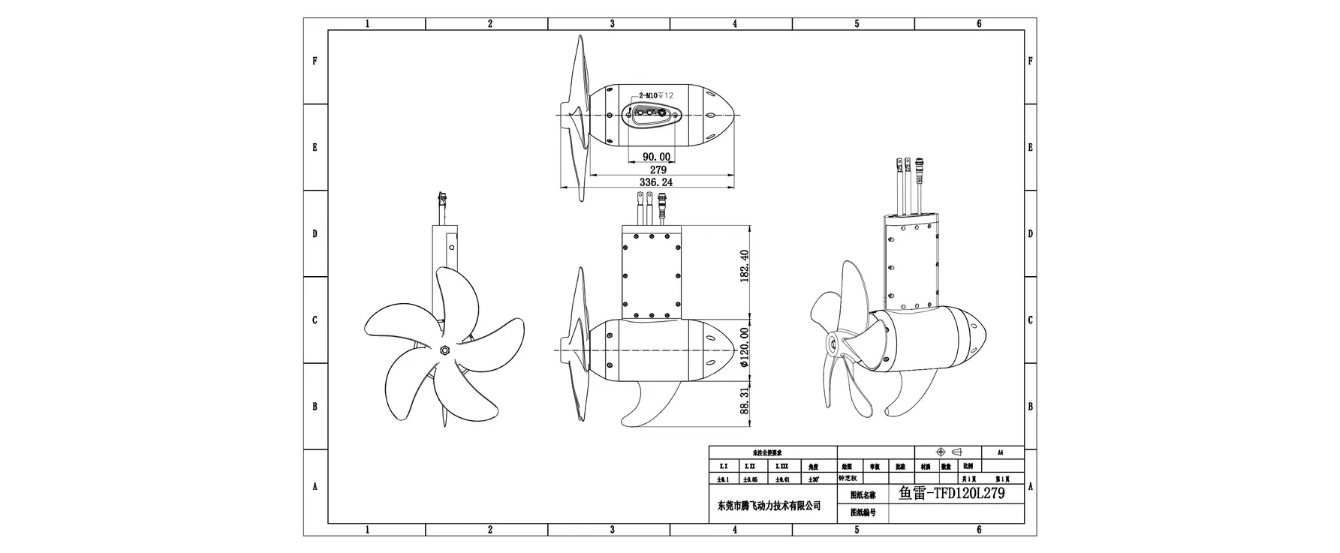

*Overall unit dimensions are approximately 75 x 60 x 45 cm (package). The integrated design features a standard outboard lower unit interface for straightforward mechanical mounting. Electrical connection requires a 50V DC power source (typical 10S-14S LiPo battery) and a standard PWM throttle signal.*

(Technical drawings with precise mounting interfaces are available upon request.)
