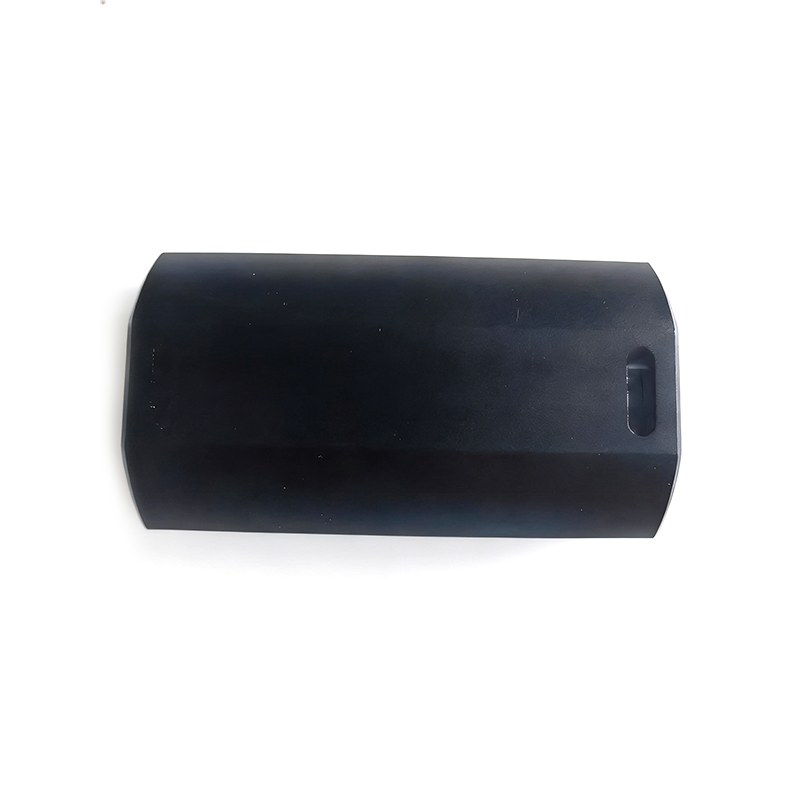

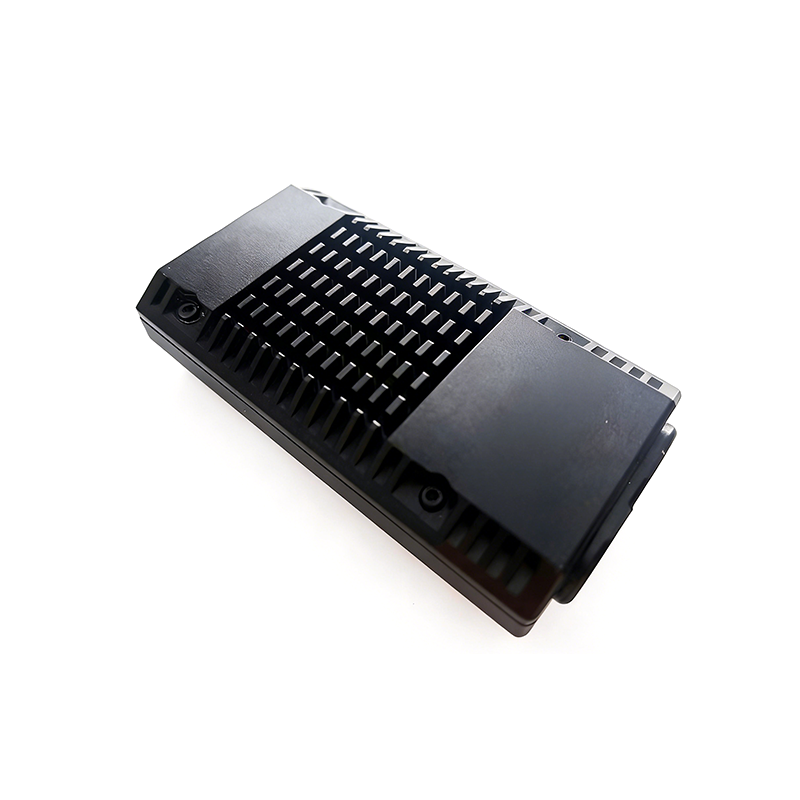

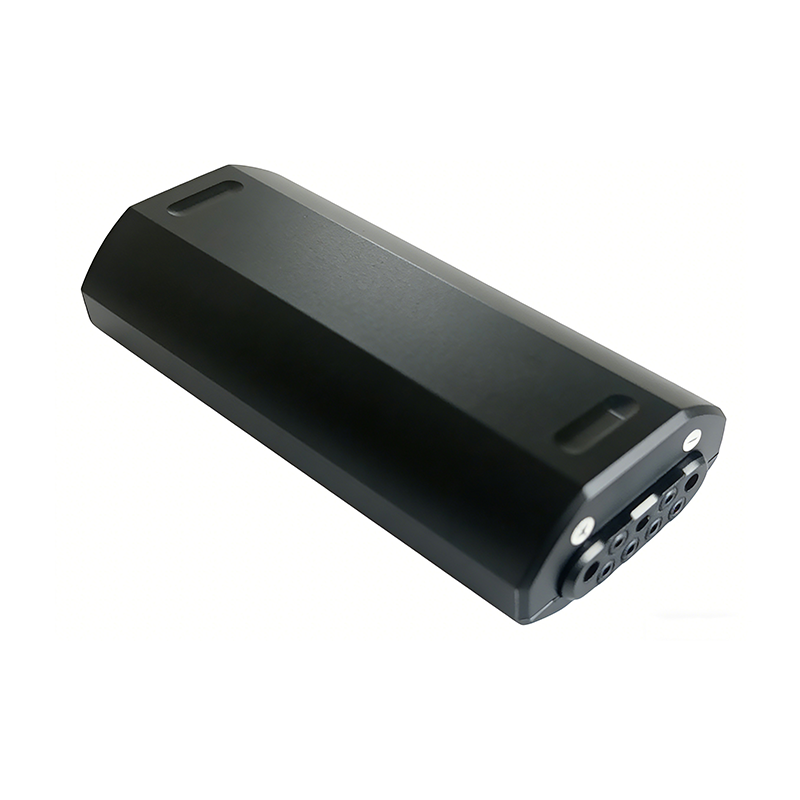

Hobiba Marine ESC HB-160A-60V-SL-WP Efficient & Compact 160A 60V Waterproof ESC

Hobiba Marine Efficient & Compact 160A 60V Waterproof PWM ESC

The Hobiba HB-160A-60V-SL-WP is a high-performance, compact brushless ESC designed for reliability and efficiency in demanding marine applications. Utilizing a powerful 32-bit processor and featuring a robust nano-coated aluminum housing with an IP67 waterproof rating, it delivers 160A of continuous current in a lightweight, durable package. Its intelligent design includes automatic motor timing identification for broad compatibility and high-efficiency synchronous rectification for longer runtimes. Ideal for electric surfboards, fishing bait boats, and underwater thrusters, this ESC combines essential protection features with simple programmability via mobile app or LCD programmer, making it a versatile and dependable choice for advanced electric marine systems.

Max. Voltage:60V
Max. Continuous Current:160A
Protection Rating:IP67

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
<100
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
120A-160A

Electric Motor Controller ESC Electric Speed Controller PWM Waterproof ESC

Features

Specification

Wiring Diagram

Dimension

Key Features

32-bit Processor & IP67 Housing: Powerful control in a fully waterproof, nano-coated aluminum case.
Lightweight & Compact: Weighs only 487g with a 90x49x23mm footprint for easy integration.
Forward/Forward&Reverse Modes: Configurable operation to suit various marine applications.
High-Efficiency Synchronous Rectification: Reduces energy loss for longer runtimes.
App/LCD Programmable: Easy setup and data viewing via mobile app or programming card.

Specification	Detail
Part Number	HB-160A-60V-SL-WP
Controller Type	Brushless, Sensorless
Max. Continuous Current	160A
Peak Current (10s)	180A
Max. Input Voltage	60 VDC
Recommended Battery	6-14S LiPo
BEC Output	None
PWM Signal Input	3.3V / 5V; 50-500Hz
Programming Interface	LCD Program Card G2 / Mobile App
Cooling Solution	Passive (Aluminum Housing)
Protection Rating	IP67
Weight	487 g
Firmware Upgrade	Supported

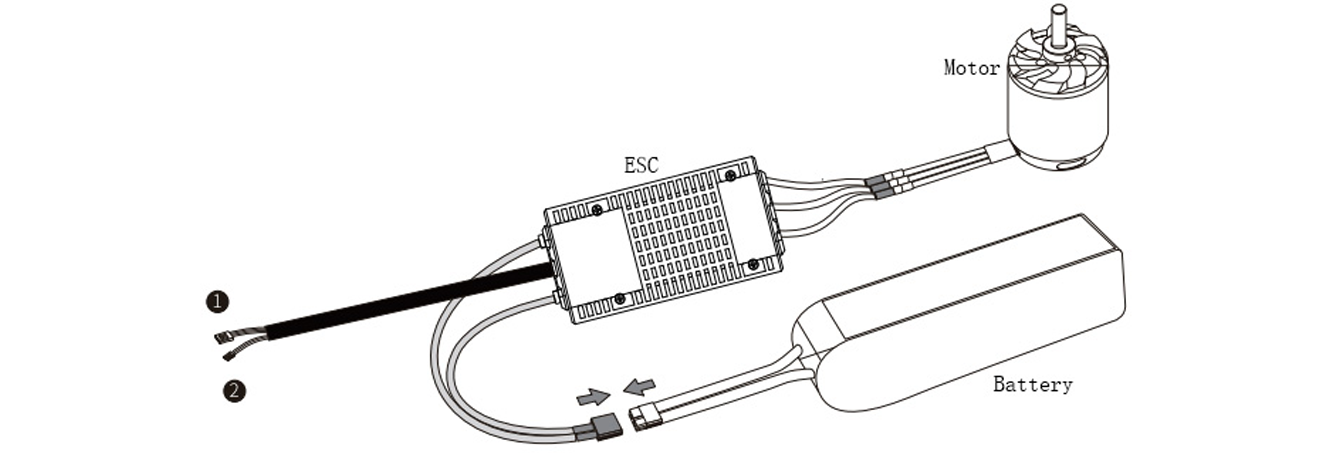

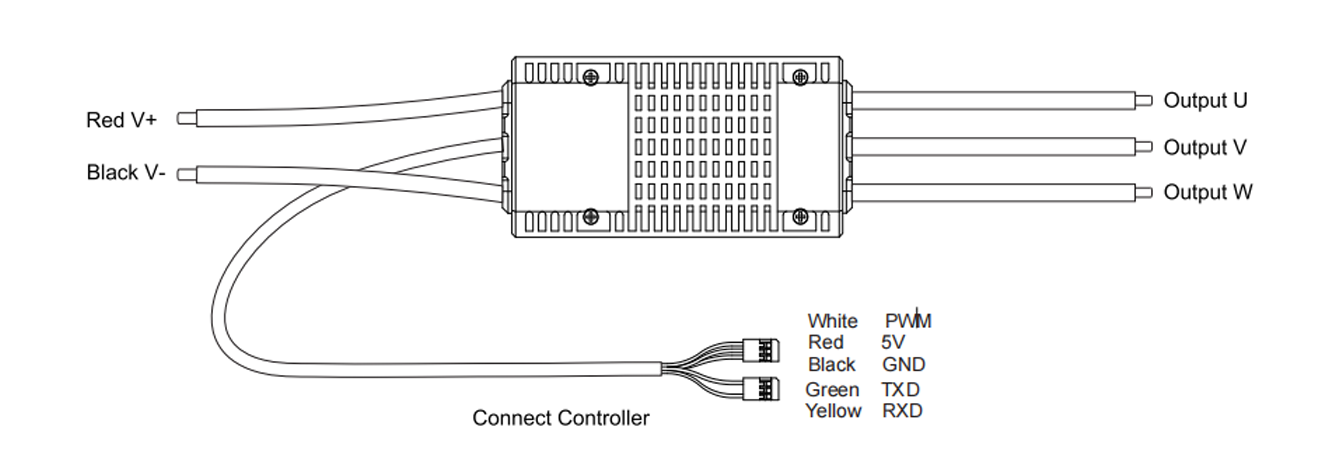

*Follow the provided wiring schematic for correct installation. Key connections: Red/Black (8AWG) for battery input, three Black wires (10AWG) for the motor, and the shielded signal cable for control and data (PWM, 5V, GND, TXD, RXD).*

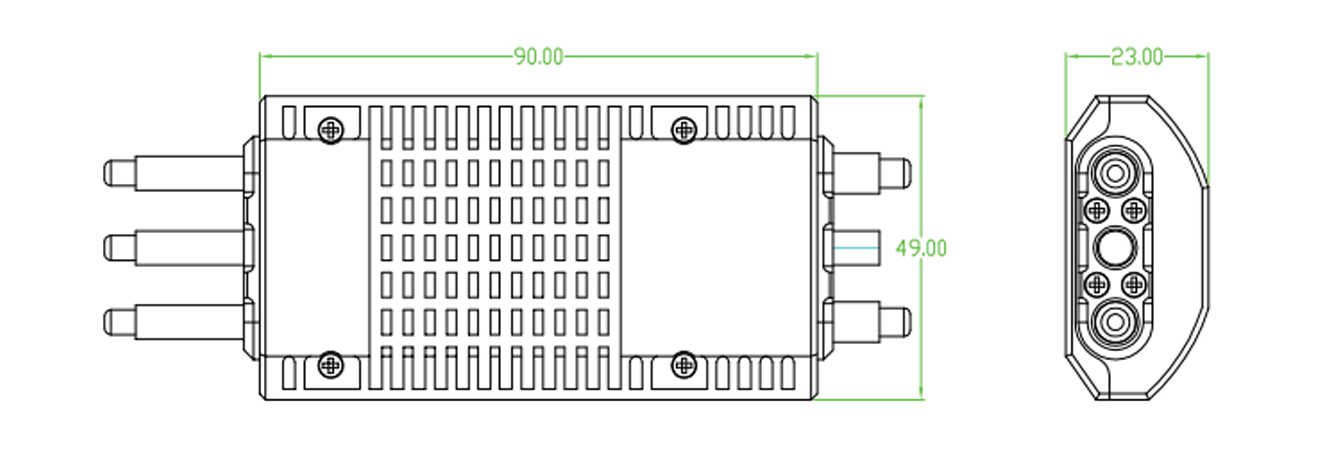

*Compact Size: 90 x 49 x 23 mm. Designed for easy integration into space-constrained applications while providing effective passive cooling through its aluminum casing.*
