D85L165 Waterproof 48V 10kw 160kv Electric Motor

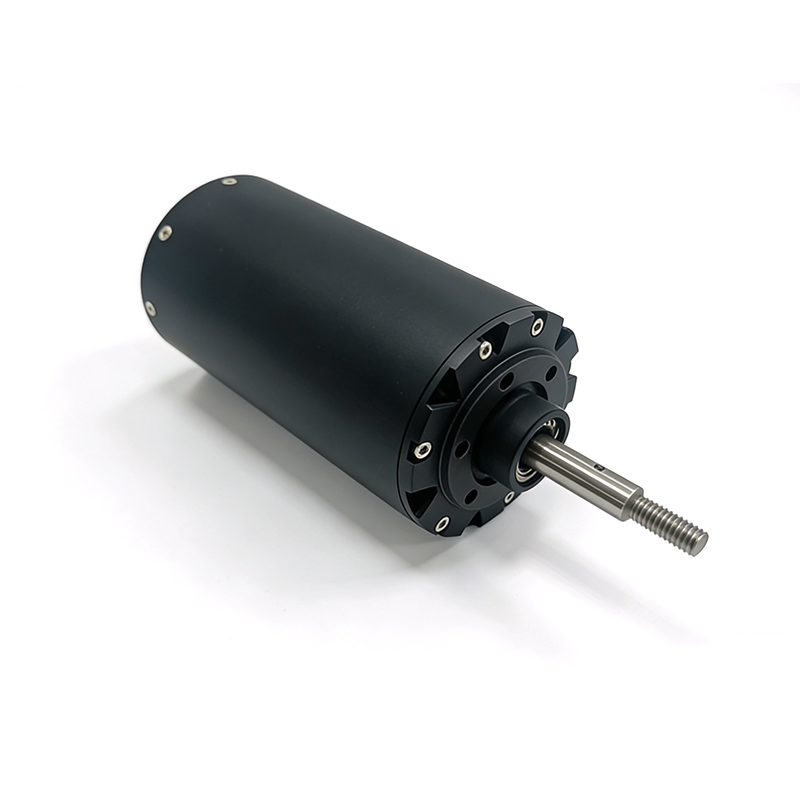

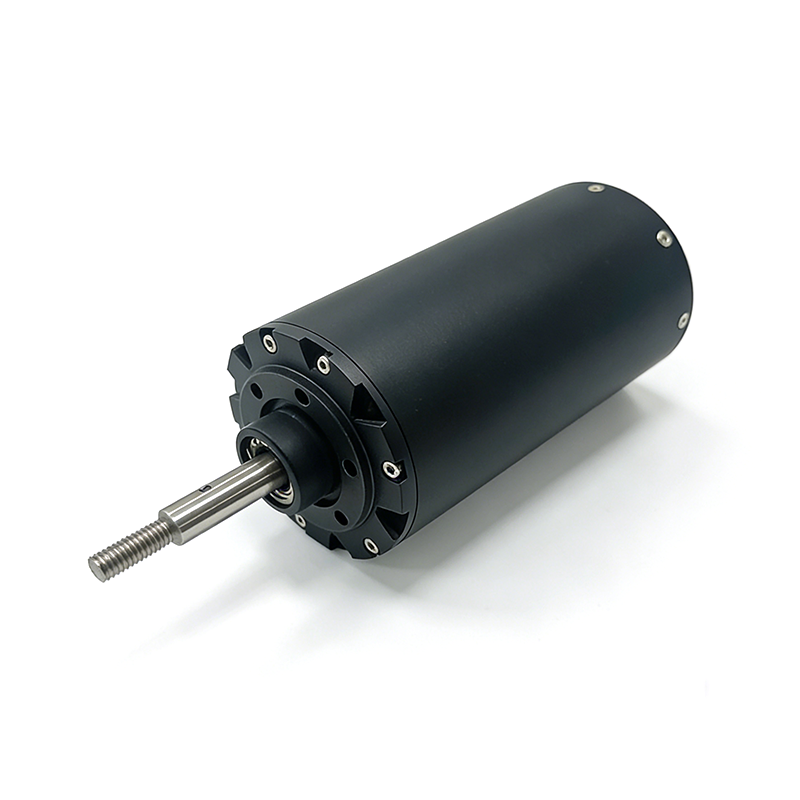

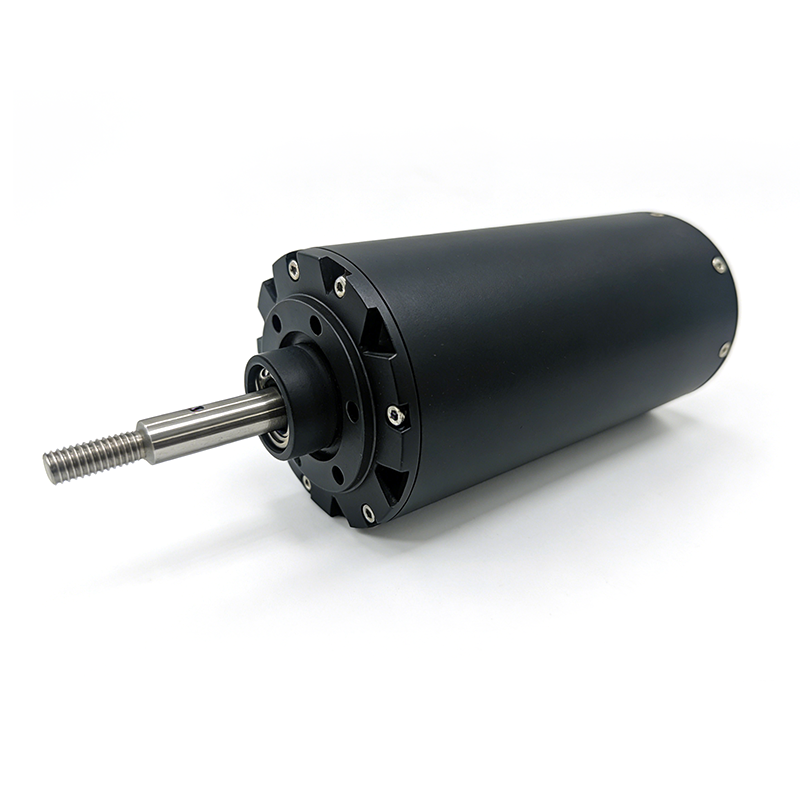

Engineered for robust performance in personal watercraft and demanding marine applications, the D85L165-WP-160KV motor combines high torque output with a compact design. Featuring a durable 7075 aluminum alloy housing and a 10-pole encapsulated core, it delivers up to 20 kW of peak power and 30 N·m of torque, optimized for efficient propulsion at speeds up to 7,680 RPM. Its fully potted IP68 construction ensures reliable operation in permanent underwater environments, making it a versatile power solution for direct-drive or integrated systems.

• Peak Power: 20.0 kW • Peak Torque: 30.0 N·m • Max Speed: 7,680 RPM
• Protection Rating: IP68 • Weight: 4.0 kg

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
151-200
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Waterproof Electric Motor eFoil Motor eSurf Motor Outboard Motor 48V 10kw Motor

Features

Specification

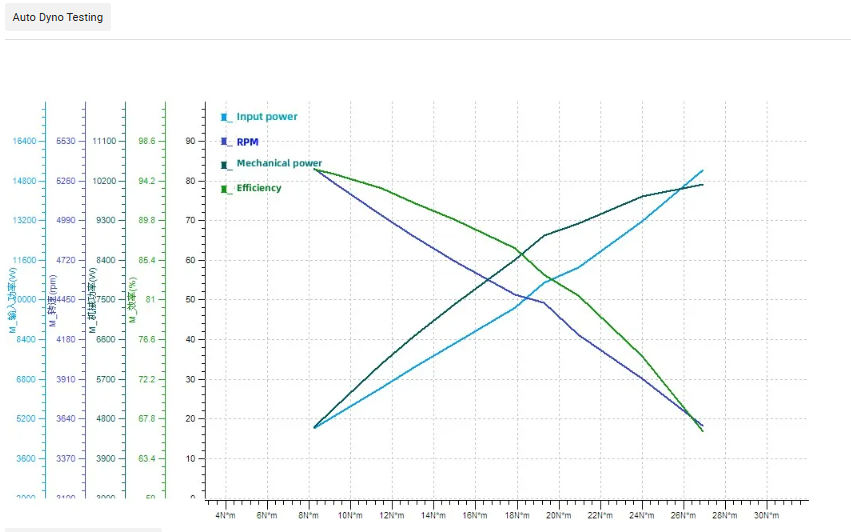

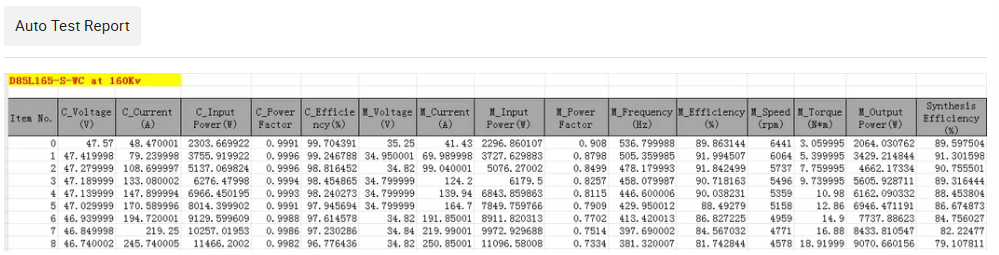

Dyno Tested Data

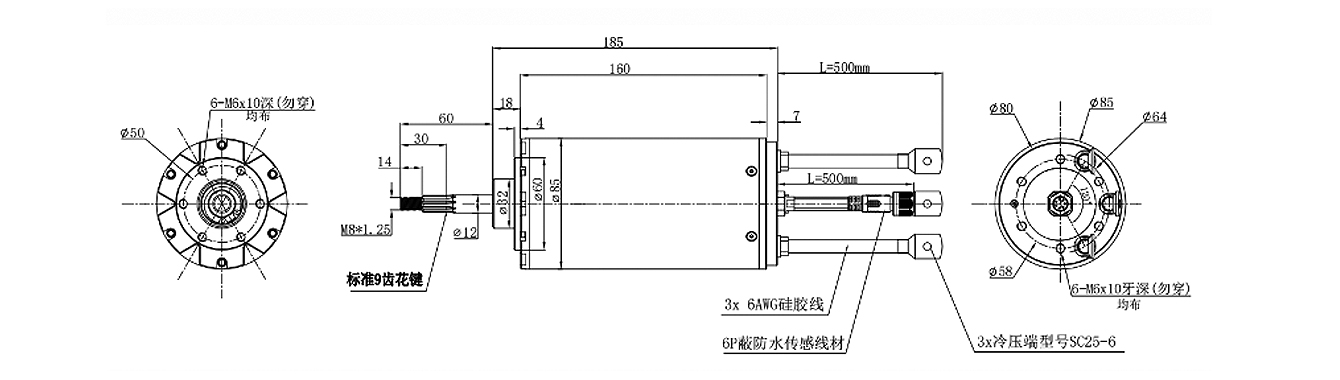

Dimension

Key Features

High Strength & Corrosion Resistance: Housing made from hard-anodized 7075 aluminum alloy for durability in marine environments.
High Power & Torque Density: Compact design delivers exceptional power and torque relative to its size and weight.
Smooth & Reliable Operation: Features a dynamically balanced rotor and high-quality bearings for low vibration and noise.
Fully Submersible Protection: IP68 rated with a potted core for permanent underwater use.

Item	Specification
Model	D85L165-160Kv
Working Voltage Range	8-16S (28-67.2V)
Max. Free Speed	Not specified in provided data
Speed Constant (Kv)	160 (Estimated from model)
Torque Constant (Kt)	Not specified in provided data
No Load Current	Not specified in provided data
Max. Output Power	20 kW
Peak Torque	30 N·m
Peak Current	Not specified in provided data
Continuous Current	up to 220 A
Max. Motor Efficiency	Not specified in provided data
Weight	4.0 kg
Configuration	10 Slots/10 Poles
Cooling Solution	Water-cooling (implied by product description)
Dimension (Dia. x Length)	D85 x L165 mm
Max. Working Temperature	Not specified (Magnets rated to 150°C)
Insulation Voltage & Leak Current	Not specified in provided data
Shaft Output	SS316 Stainless Steel (type not specified)
Lead Wires Extension	Not specified in provided data
Connector	Not specified in provided data
Life Span	10,000 H
