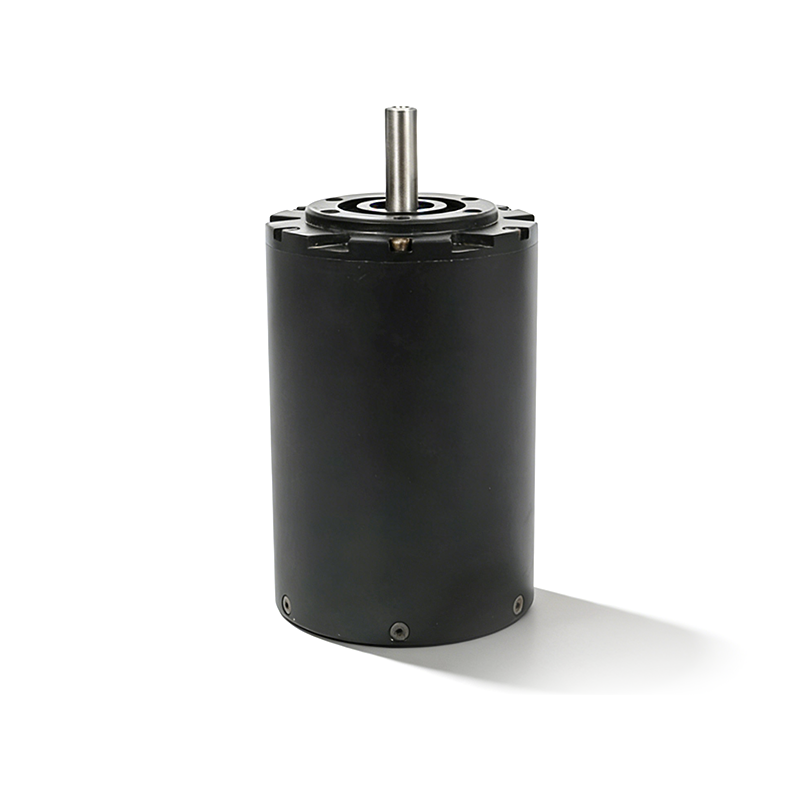

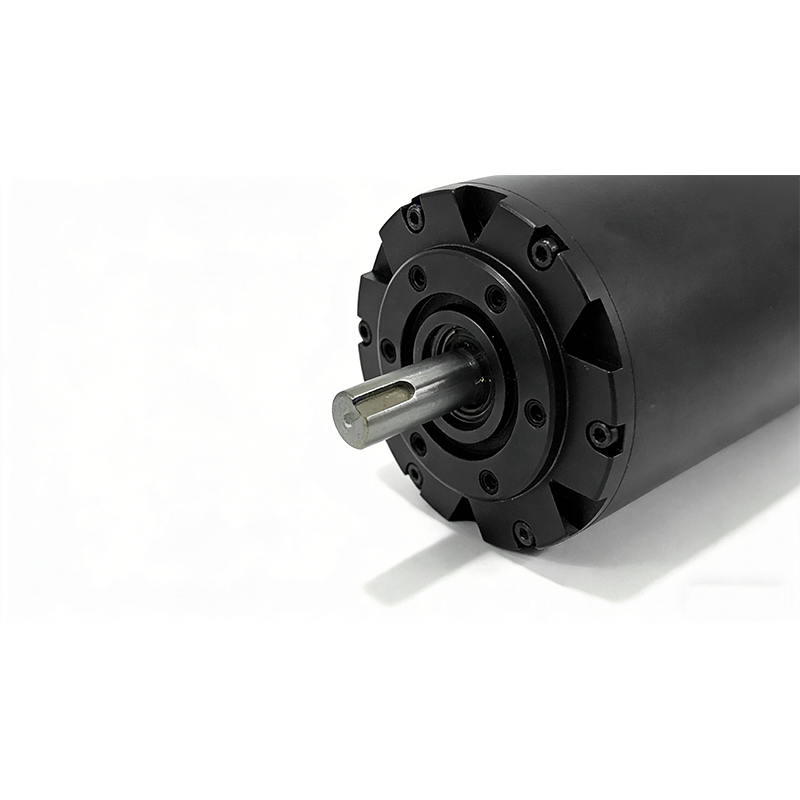

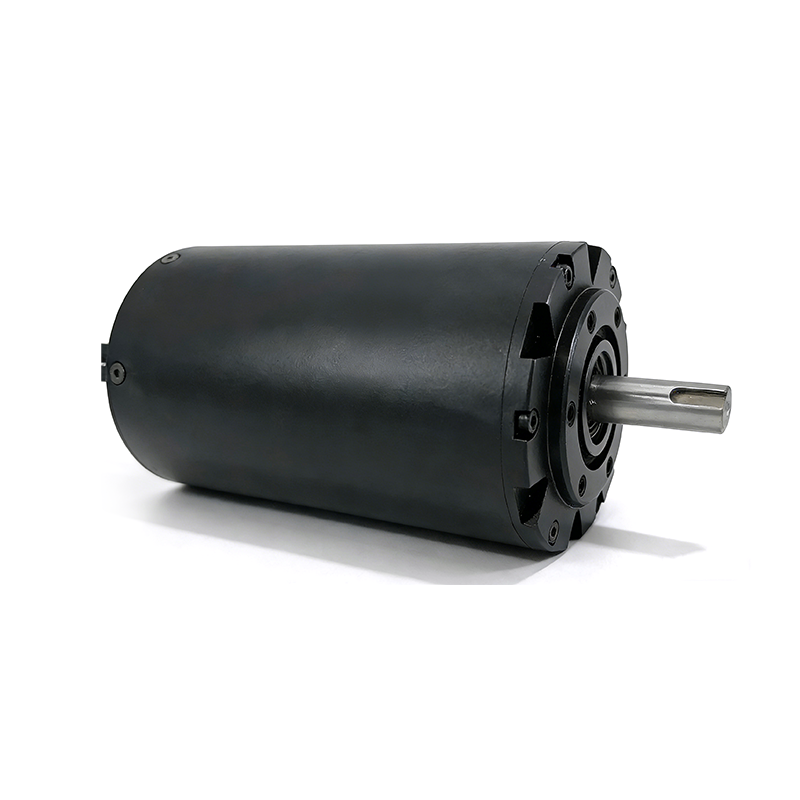

D85L134 Waterproof 210kv 10kw Electric Motor


Balancing high speed with substantial torque, the D85L134-WP-210KV motor is engineered for dynamic marine applications. Its 12N10P design delivers up to 11.5 kW of power and 19.5 N·m of torque, capable of reaching 12，348 RPM on a common 6-14S (20-58.8V) voltage range. This makes it an excellent power plant for agile personal watercraft, high-performance surfboards, and compact underwater thrusters that demand quick acceleration and top-end speed.

• Peak Power: 11.5 kW       • Peak Torque: 19.5 N·m      • Max Speed: 12,348 RPM
• Protection Rating: IP68     • Weight: 2.8 kg

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • >200

  • Sensorless

  • 60V

  • < 120A

Waterproof Electric Motor personal watercraft motor Surfboard Motor BLDC Motor Brushless DC Motor
Features
Specification
Dyno Tested Data

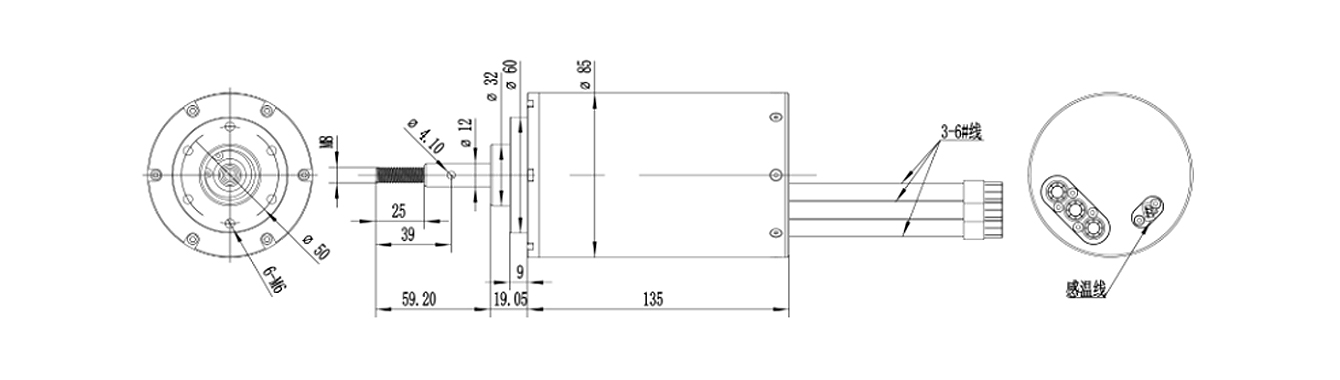

Dimension


Key Features


  • Dynamic Performance Profile: High KV (210) for swift acceleration and strong mid-range torque.

  • Optimized for Common Voltage: Perfectly matched for 20-58.8V lithium battery packs.

  • Efficient & Cool Running: 90% efficiency with effective waterproof for sustained performance.

  • Compact Powerhouse: Delivers over 11 kW in a lightweight, IP68-rated 85mm package.


    Applications:

Electric Propulsion for various watercrafts


  • Efoil / Waterbike

  • Jet Surf/Surboard

  • Underwater thruster

  • Small boat /SUP / Kayak

  • POD drive

  • Jetski / Speed Boat

  • Yacht

Either work with propeller directly or as an integrated part in

a airtight cabin of trolling motor/outboard motor / POD



Inner-runner Motor D85L134 Specification
Model P/ND85L134-100
Winding Turn & Connection8T
LiPO/Voltage Range12-28S (40-117.6V)
Max RPM12,348
kV(RPM/V)105
Kt(N*M/A)0.12108
No Loading Current at 8.4V (A)1.2
Max Power(W)11,300
Peak Current(A)143
Effeciency90%
Max torque at 60% (N*M)21.0
Weight(kg)2.2
Construction12N/10P
Cooling SolutionWaterproof
Max Working Temperature120ºC
DimensionD85*L134 mm
Shaft ExtensionD12mm*L30
Lead Wires Extension150±5MM
Insulation Voltage & Leak CurrentAC500V/10MA/3S
Plug10mm golden plug
Life Span10000h



D85L134-WC-S at 93Kv-58Vdc
Item
No.		C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
057.83000219.1399991107.2700243.130001161088.80004992.67174551691.8640041009.01001
157.70000132.8699991896.43005442.86000128.571868.2399994.2992148793.4480041761.735474
257.56000146.4500012672.16992242.77999941.8100012631.92993293.90145946315.0960042471.420654
357.45000158.3499983349.86010742.7753.9399993297.2299892.76293944366.5840043058.607422
457.29999971.5299994095.7299842.77999967.7799994020.9799891.30012542428.2640043671.159668
557.20000182.8000034732.49023442.82804639.72021589.56629240969.6880044155.625488
657.09999893.7600025348.83007842.84999892.0100025235.12011787.583717396311.0480044585.112793
D85L134 at 105Kv-50Vdc
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
049.6627.071337.71997136.72000122.841306.11999588.76307737102.9840041159.352295
149.54000138.7599981898.93994136.5933.571857.36999589.5161935254.5040041662.646851
249.43999950.7799992459.07006836.56000144.912407.62988389.39938433546.1280042152.40625
349.3462.0999982965.69995136.52999955.5999982899.62988388.28379832137.6080042559.90332
449.2375.5400013540.67993236.54999968.1200033450.69995186.44298630729.2720042982.887939
549.15000286.2799993979.78002936.56000177.8600013867.9899984.556099297110.5120043270.621338
649.049999100.1900024522.41992236.59999890.2300034388.77978582.04789285412.0480043600.901123
748.939999114.9499975076.83984436.59103.0199974913.9799878.820831273413.5280053873.239746
848.799999131.2599955677.24023436.549999117547874.943062260115.0720044105.380859
