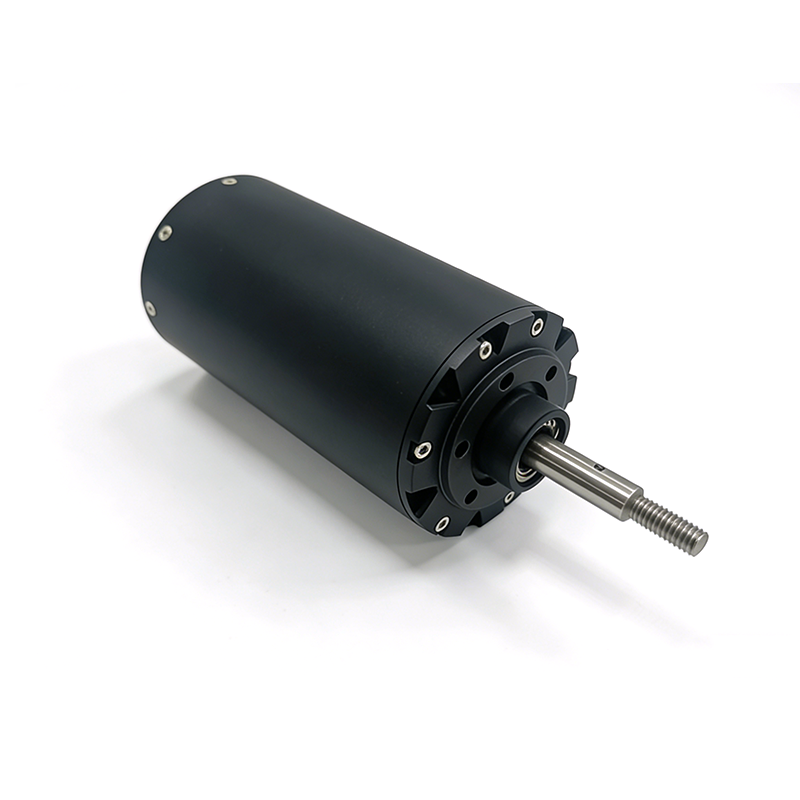

D85L165 Waterproof Quanly 50kv 20kw Marine Electric Motor


Engineered for powerful and efficient electric marine propulsion, the D85L165-WP-50KV motor combines an advanced 12-slot 10-pole design with a compact 85mm diameter. Operating on a wide 14-38S voltage range (44.8-159.6V), it delivers substantial low-RPM thrust with a peak torque of 35 N·m and a maximum power output of 20 kW. Its fully potted and sealed construction achieves an IP68 rating, making it perfectly suited for direct-drive applications or integration into sealed units where permanent submersion and reliable performance are essential.

• Peak Power: 20.0 kW       • Peak Torque: 35.0 N·m      • Max Speed: 8,000 RPM
• Protection Rating: IP68     • Weight: 3.9 kg

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • <100

  • Sensorless

  • 60V

  • < 120A

Underwater Thruster Motor Marine Motor Brushless Motor Waterproof Motor 50KV Motor
Features
Specification
Dyno Tested Data
Dimension


Key Features


  • High Torque, Low KV Design: Optimized for powerful thrust and efficient operation at lower rotational speeds.

  • Wide Voltage Operation: Compatible with 14-38S battery systems, offering flexibility for high-voltage setups.

  • Fully Submersible (IP68): Potted and sealed for reliable, permanent underwater operation.

  • High Efficiency: Achieves up to 92% efficiency for optimal power conversion and runtime.

  • Compact & Durable: Robust CNC-machined aluminum housing in a space-saving D85xL165mm package.


Applications:

Electric underwater Propulsion for various watercrafts


  • Efoil / Waterbike

  • Jet Surf/Surboard/ JetBoard

  • Underwater thruster

  • Small boat /SUP / Kayak

  • POD drive

  • Jetski / Speed Boat

  • Yacht










VariantsD85L165-50Kv
Winding turn & connection3T-Y
LiPO/voltage Range14-38S (44.8-159.6V)
Maximum Output Power (KW)20Kw
Peak Current160A
Effeciency92.00%
Max Torque at60% (N*M)35.0
Continuous working current65A
Weight(kg)3.85
Configuration12 Slots/10 Poles
DimensionD85*L165 mm
Shaft extensionD12
Lead wires extension150±5MM
Insulation voltage & leak currentAC500V/10MA/3S
Plug10mm golden plug
Life Span(hrs)10,000



D85L165-WP-50Kv at 68V
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
068.3600019.08614.14001550.3899997.35610.39001598.39437130901.855996600.589417
168.29000123.5599991560.43005450.2519.7999991549.7600196.72869128864.9599961499.062622
268.22000137.1300012413.7700250.3231.822390.69995195.10210427227.9759962273.605957
368.16999850.6500023235.4799850.54999943.913197.69995192.680893258410.9519972963.656982
468.12000364.8799974067.62988350.7556.7599984007.37988389.942047245714.0079973604.31958
568.0779.8000034898.74023450.95000169.8600014810.586.796112234217.0239964175.327148
668.02999996.255762.91992251.11000183.6299975636.45996183.266808223120.0879974693.300293
768115.3099986673.85009851.1898.1500026500.18017678.824287211423.1439975123.720703

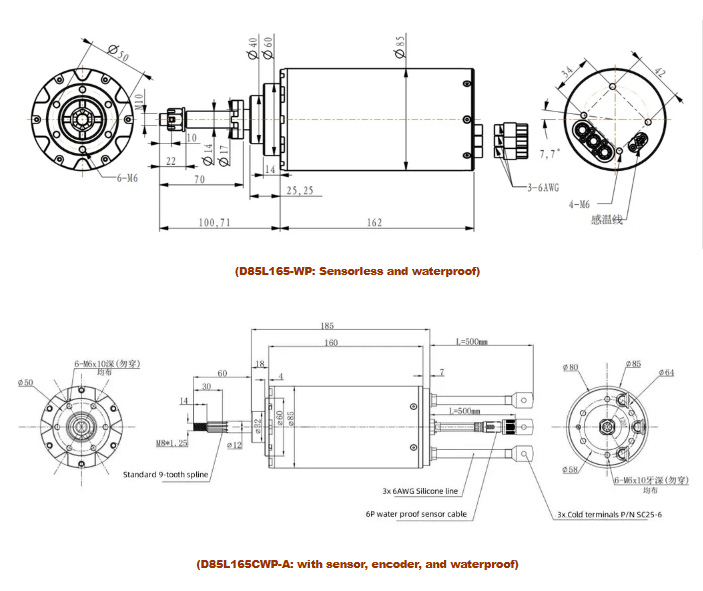

D85L165-WP图纸
