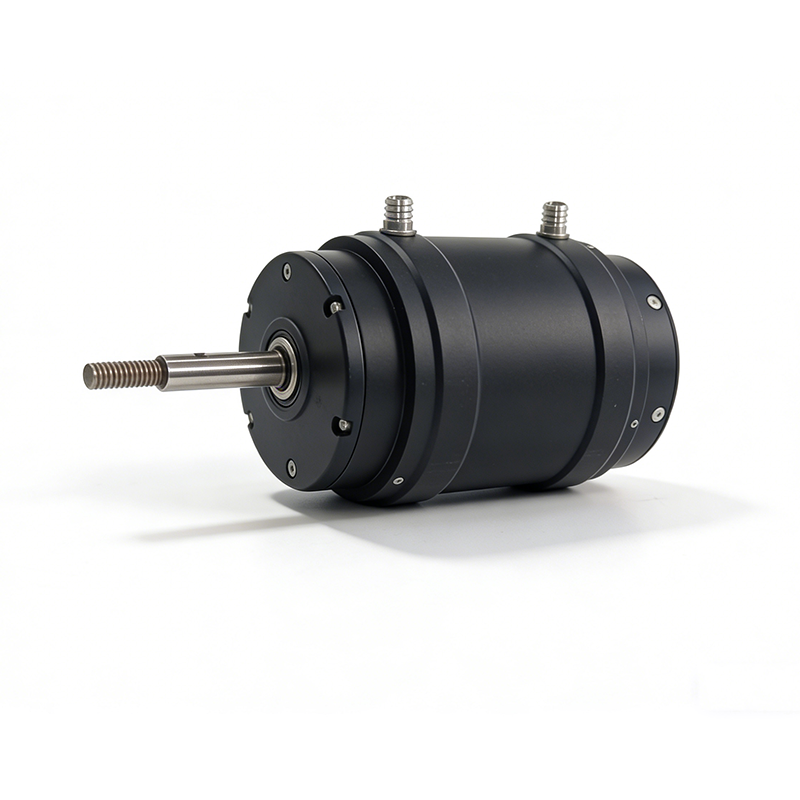

D85L134 Water-cooled Quanly 240kv 10kw Engine Brushless DC Motor


Engineered for high-speed, lower-voltage marine propulsion systems, the D85L134-WC-240KV motor offers impressive power density. Its 12N10P internal rotor design with water cooling enables up to 11.5 kW of peak power and 18.8 N·m of torque, reaching 11，520 RPM on common 6-12S (20-48V) battery systems. This combination of high RPM and compact size makes it an excellent choice for performance jetboards, surfboards, and other applications requiring agility and swift acceleration in a small form factor.

• Peak Power: 11.5 kW         • Peak Torque: 18.8 N·m      • Max Speed: 11,520 RPM
• Waterproof Rating: IP68    • Weight: 2.8 kg

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

  • All

  • >200

  • Sensorless

  • 60V

  • < 120A

Jetboard Motor Water-Cooled Motor 240KV Motor Marine Motor
Features
Specification
Dyno Tested Data
Dimension


Key Features


  • High-Speed, Low-Voltage Operation: Ideal for 20-48V systems, delivering high RPM for agile performance crafts.

  • Internal Rotor Water-Cooled Design: Efficient heat dissipation in a compact internal rotor configuration.

  • High Power Density: Delivers over 11 kW from an 85mm diameter motor.

  • Robust & Submersible: IP68 rated for integration into sealed propulsion units.

  • Applications

  • eFoil

  • Waterbike/jetski

  • Surfboard/jetboard

  • Pod Drive

  • Underwater Thruster

  • Sea Scooter



Inner-runner Motor D85L134 Specification
Model P/ND85L134-240
Winding Turn & Connection3.5T
LiPO/Voltage Range6-12S (20-48.0V)
Max RPM11,520
kV(RPM/V)240
Kt(N*M/A)0.05297
No Loading Current at 8.4V (A)2.3
Max Power(W)11,520
Peak Current(A)330
Effeciency90.0%
Max torque at 60% (N*M)18.8
Weight(kg)2.8
Construction12N/10P
Cooling SolutionWater Cooling
Max Working Temperature120ºC
DimensionDiam.at 85mm*Length at 134mm
ShaftM8 threaded 12mm
Lead Wires Extension150±5MM
Insulation Voltage & Leak CurrentAC500V/10MA/3S
Plug10mm golden plug
Life Span10000h



D85L134 at 240Kv at 35Vdc
Item No.C_Voltage
(V)		C_Current
(A)		C_Input Power(W)M_Voltage
(V)		M_Current
(A)		M_Input Power(W)M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power(W)
035.70000164.523002655.8300022250.04003996.08937169282.9799952162.049316
135.450001118.434194.85986325.67107.9700014048.05004992.74331761815.7999953754.295898
235.310001152.3500065372.25976625.549999142.9600075127.7700290.40548757797.6599964635.785645
335.139999193.3699956779.97021525.4699991876389.43994187.01755553529.9199955559.93457
435.040001216.4600077566.14013725.42212.4299937072.7700284.672005511511.1799965988.65625
534.7999992739464.70019525.280001276.6799938653.66015678.712677461314.0999966811.527832
