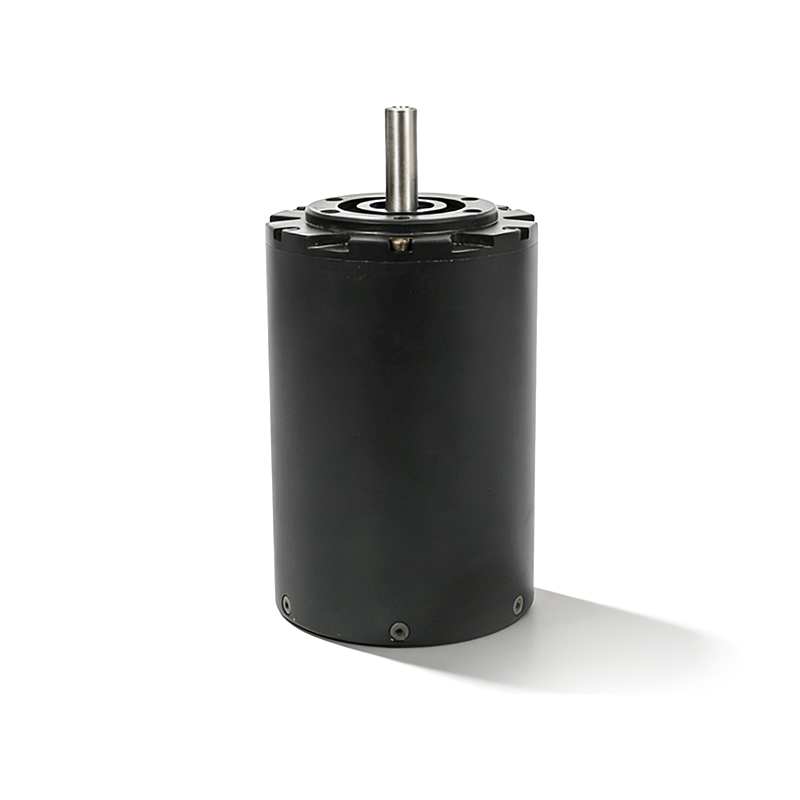

D85L134 Waterproof 100kv 10kw Brushless Motor

The D85L134-WP-100KV motor is a versatile and robust solution for medium-voltage marine applications requiring high torque. With its optimized 8T winding supporting a wide 12-28S (40-117.6V) range, it delivers up to 11 kW of power and 21 N·m of torque. Its 100 KV rating provides strong, efficient low-end thrust, making it well-suited for trolling motors, larger underwater thrusters, and auxiliary drives where smooth, powerful propulsion is needed.

• Peak Power: 11.0 kW • Peak Torque: 21.0 N·m • Max Speed: 12,350 RPM
• Protection Rating: IP68 • Weight: 2.2 kg

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
100-150
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Brushless Motor Waterproof Motor Trolling Motor BLDC Motor

Features

Specification

Dyno Tested Data

Dimension

Key Features

Wide Voltage & High Torque: Operates from 40V to 117.6V, optimized for strong, low-RPM thrust.
High Efficiency Operation: Achieves 90% efficiency for extended range and reduced thermal load.
Lightweight & Durable: Weighs only 2.2 kg with a rugged IP68 potted construction.
Versatile Application: Ideal for trolling motors, thrusters, and auxiliary marine propulsion.

Applications:

Electric Propulsion for various watercrafts

1. Efoil / Waterbike

2. Jet Surf/Surboard

3. Underwater thruster

4. Small boat /SUP / Kayak

5. POD drive

6. Jetski / Speed Boat

7. Yacht

Either work with propeller directly or as an integrated part in

a airtight cabin of trolling motor/outboard motor / POD

Inner-runner Motor D85L134 Specification
Model P/N	D85L134-100
Winding Turn & Connection	8T
LiPO/Voltage Range	12-28S (40-117.6V)
Max RPM	12,348
kV(RPM/V)	105
Kt(N*M/A)	0.12108
No Loading Current at 8.4V (A)	1.2
Max Power(W)	11,300
Peak Current(A)	143
Effeciency	90%
Max torque at 60% (N*M)	21.0
Weight(kg)	2.2
Construction	12N/10P
Cooling Solution	Water Cooling
Max Working Temperature	120ºC
Dimension	D85*L134 mm
Shaft Extension	D12mm*L30
Lead Wires Extension	150±5MM
Insulation Voltage & Leak Current	AC500V/10MA/3S
Plug	10mm golden plug
Life Span	10000h

D85L134-WC-S at 93Kv-58Vdc
Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	M_Voltage (V)	M_Current (A)	M_Input Power(W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power(W)
0	57.830002	19.139999	1107.27002	43.130001	16	1088.800049	92.671745	5169	1.864004	1009.01001
1	57.700001	32.869999	1896.430054	42.860001	28.57	1868.23999	94.29921	4879	3.448004	1761.735474
	57.560001	46.450001	2672.169922	42.779999	41.810001	2631.929932	93.901459	4631	5.096004	2471.420654
3	57.450001	58.349998	3349.860107	42.77	53.939999	3297.22998	92.762939	4436	6.584004	3058.607422
4	57.299999	71.529999	4095.72998	42.779999	67.779999	4020.97998	91.300125	4242	8.264004	3671.159668
5	57.200001	82.800003	4732.490234	42.82	80	4639.720215	89.566292	4096	9.688004	4155.625488
6	57.099998	93.760002	5348.830078	42.849998	92.010002	5235.120117	87.583717	3963	11.048004	4585.112793

D85L134 at 105Kv-50Vdc
Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	M_Voltage (V)	M_Current (A)	M_Input Power(W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power(W)
0	49.66	27.07	1337.719971	36.720001	22.84	1306.119995	88.763077	3710	2.984004	1159.352295
1	49.540001	38.759998	1898.939941	36.59	33.57	1857.369995	89.51619	3525	4.504004	1662.646851
2	49.439999	50.779999	2459.070068	36.560001	44.91	2407.629883	89.399384	3354	6.128004	2152.40625
3	49.34	62.099998	2965.699951	36.529999	55.599998	2899.629883	88.283798	3213	7.608004	2559.90332
4	49.23	75.540001	3540.679932	36.549999	68.120003	3450.699951	86.442986	3072	9.272004	2982.887939
5	49.150002	86.279999	3979.780029	36.560001	77.860001	3867.98999	84.556099	2971	10.512004	3270.621338
6	49.049999	100.190002	4522.419922	36.599998	90.230003	4388.779785	82.04789	2854	12.048004	3600.901123
7	48.939999	114.949997	5076.839844	36.59	103.019997	4913.97998	78.820831	2734	13.528005	3873.239746
8	48.799999	131.259995	5677.240234	36.549999	117	5478	74.943062	2601	15.072004	4105.380859
