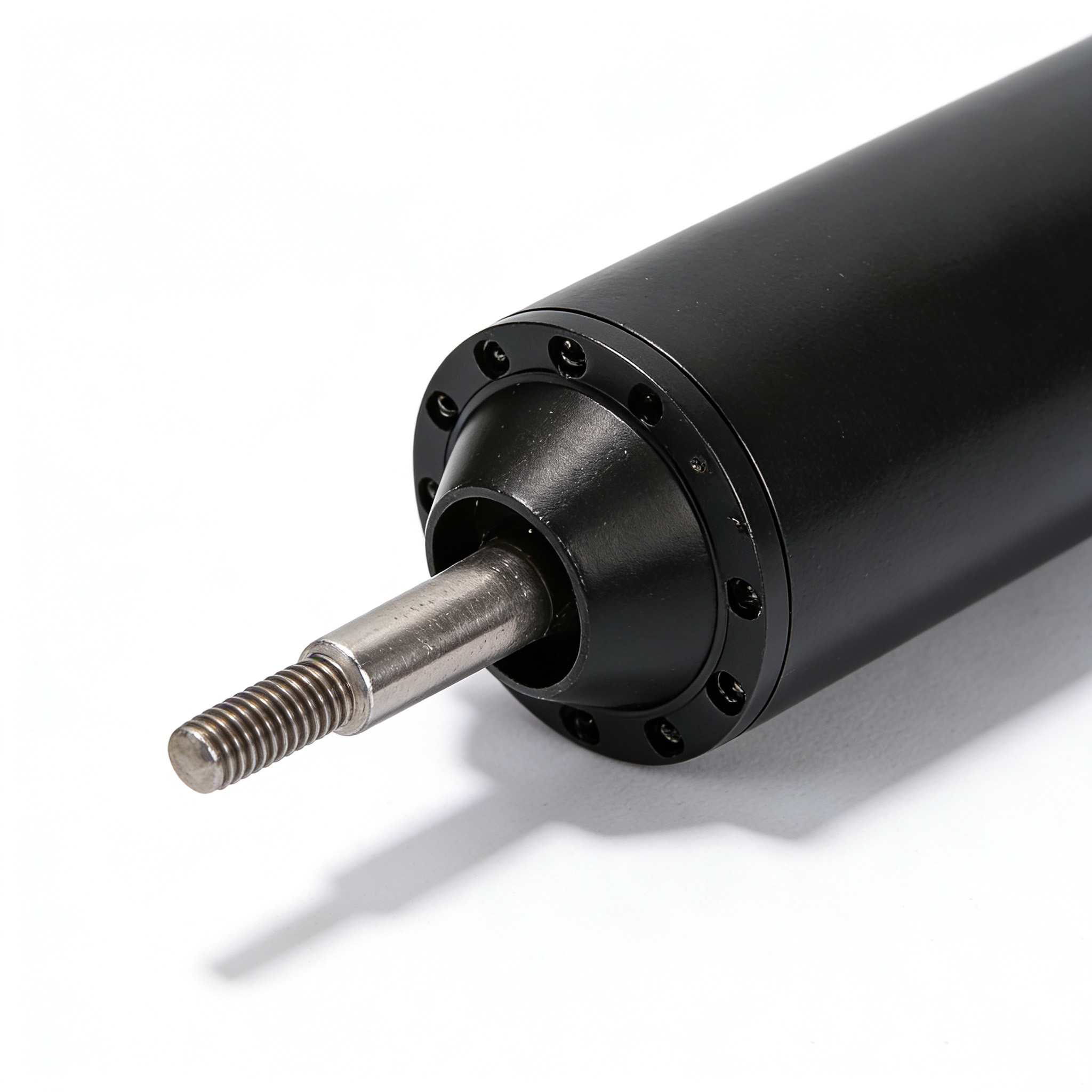

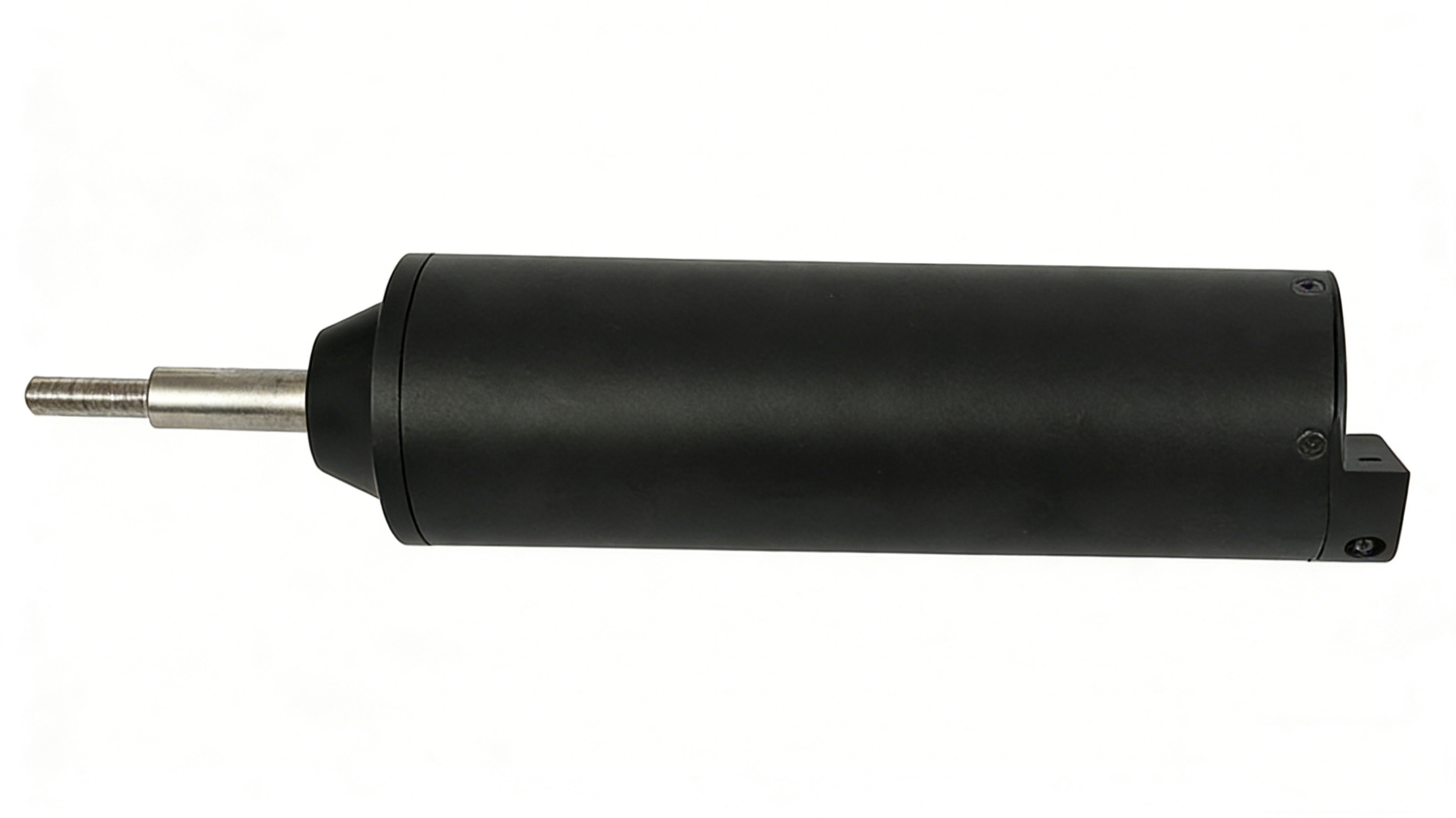

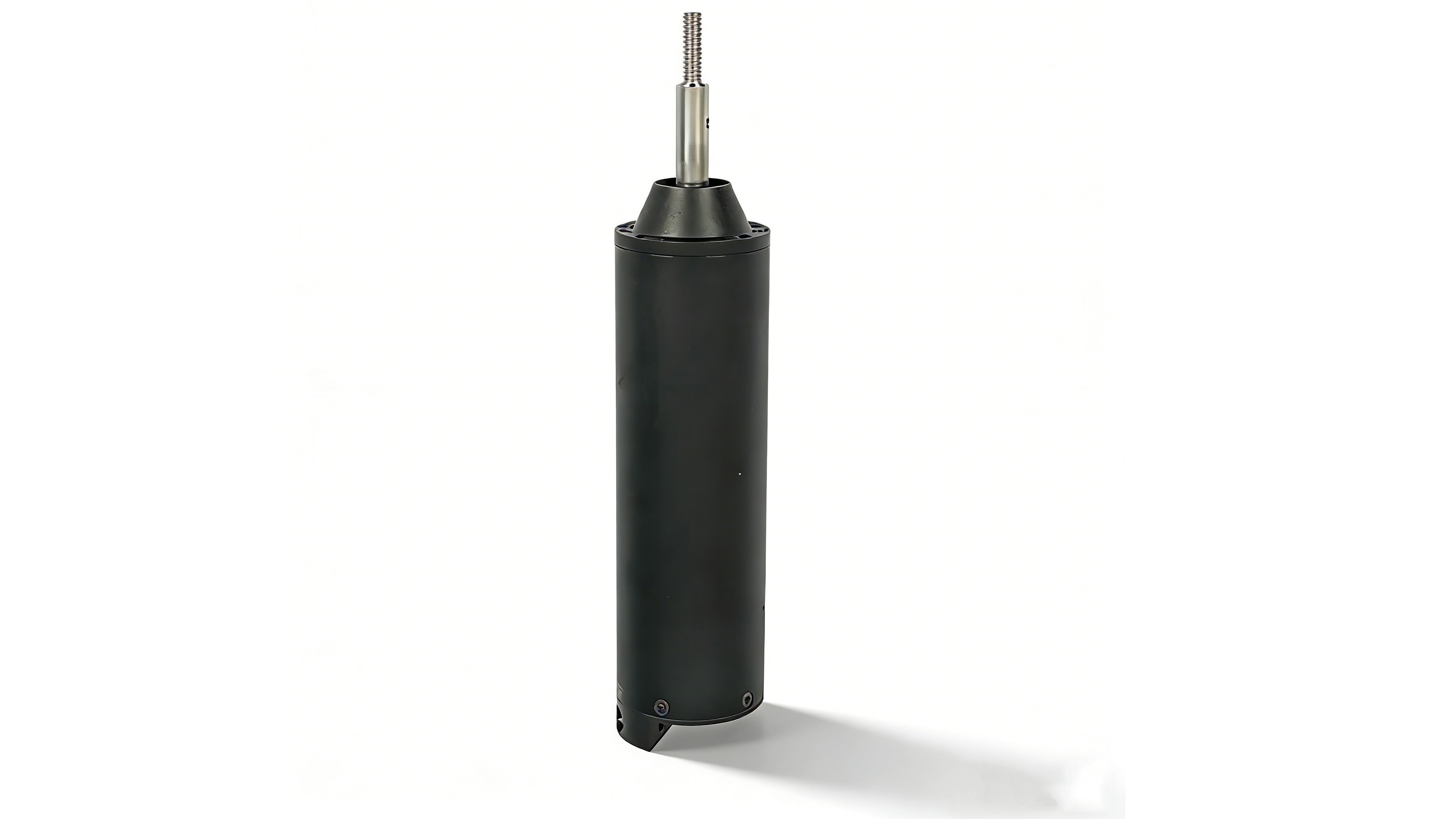

D60L180 120kv Waterproof Electric Motor 6000W for Efoil / Hydrofoil

The Hobiba D57L180-120KV is a compact, high-performance brushless motor engineered for marine propulsion systems where space and weight are at a premium. Featuring a slim 57mm diameter design with an 18N6P internal rotor configuration, it delivers up to 6kW of power and 10 N·m of torque within a remarkably small footprint. Its optimized magnetic circuit with a reduced air gap ensures higher flux density, resulting in more effective torque production and efficiency exceeding 85%. Fully rated IP68 for permanent submersion, this motor is the ideal power solution for integrating into sleek electric surfboards (eFoils), water bikes, compact pod drives, and underwater thrusters, offering a perfect blend of power, efficiency, and minimalist design.

Peak Power: 6.0 kW
Peak Torque: 10.0 N·m
Max Speed: 11,520 RPM
Protection Rating: IP68 (Submersible)
Weight: 2.5 kg

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
100-150
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Waterproof Electric Motor Marine Motor eFoil Motor Brushless DC Motor

Features

Specification

Dyno Tested Data

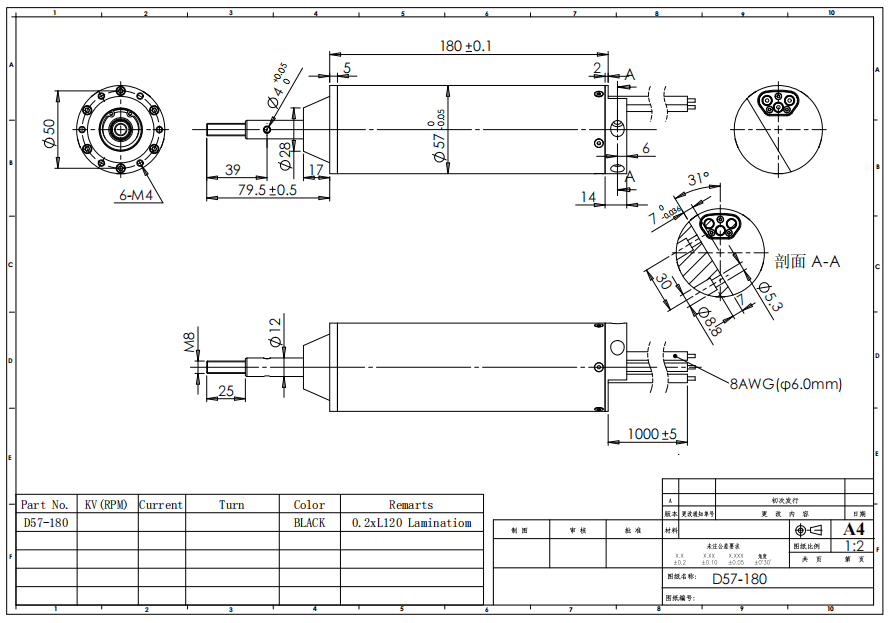

Dimension

Key Features

Ultra-Compact 57mm Diameter: Slim profile ideal for integration into space-constrained hulls and mast systems.
High-Efficiency Design: Reduced air gap and optimized 18N6P construction deliver high flux density and efficiency, with dyno tests showing over 85% efficiency under load.
Wide Voltage Range: Compatible with 24-96V DC systems, offering exceptional flexibility for various battery configurations.
IP68 Waterproof Protection: Built for reliable, permanent underwater operation in all marine environments.
High Power Density: Generates up to 6kW from a lightweight 2.5kg package, offering an outstanding power-to-weight ratio.
Rugged & Effective Cooling: Aluminum alloy housing provides excellent heat dissipation for sustained performance.

Parameter	Specification
Model Number	D57L180-120KV
Motor Type	Brushless DC (Internal Rotor)
Construction	18N6P
Kv (RPM/V)	120
Voltage Range	24 - 96 VDC
Max. Output Power	6.0 kW
Max. Torque	10.0 N·m
Peak Current	150 A
Max. Speed	11,520 RPM
Weight	2.5 kg
Dimensions (Dia. x Length)	D57 x L180 mm
Housing Material	Aluminum Alloy
Protection Rating	IP68
Design Life	10,000 hours

D57L180-WP-120Kv at 60V
Item No.	C_Voltage (V)	C_Current (A)	C_Input Power(W)	M_Voltage (V)	M_Current (A)	M_Input Power(W)	M_Efficiency (%)	M_Speed (rpm)	M_Torque (N*m)	M_Output Power(W)
0	59.810001	28.35	1696.400024	45.82	25.040001	1667.930054	77.672516	6280	1.832004	1295.523193
1	59.68	41.48	2474.949951	45.68	36.68	2438.97998	83.694763	5901	3.072004	2041.298584
2	59.59	51.700001	3079.01001	45.540001	46.439999	3039.139893	85.003036	5601	4.096004	2583.361084
3	59.5	62.009998	3686.129883	45.419998	56.75	3634.26001	84.380768	5319	5.120004	3066.616455
4	59.400002	73.709999	4371.140137	45.349998	68.739998	4305.720215	82.35202	5027	6.264004	3545.847656
5	59.299999	83.5	4941.310059	45.34	78.900002	4862.850098	79.477982	4799	7.152004	3864.89502
