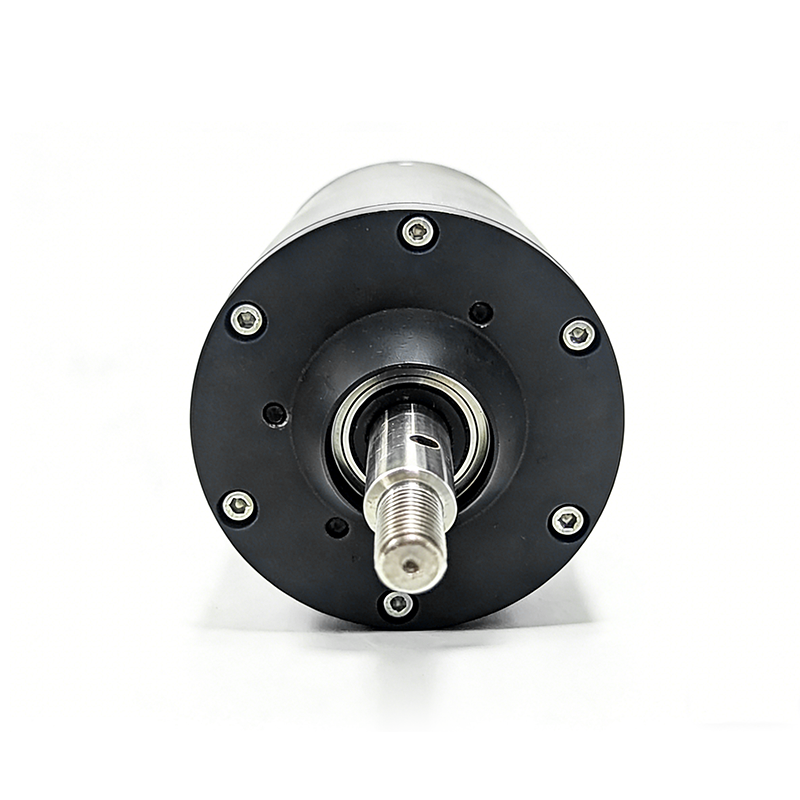

Designed for high-performance underwater applications demanding rapid acceleration and high speed, the D70L165-170KV motor features an advanced 12-slot 10-pole (12N10P) magnetic circuit structure and a 70mm diameter potted stator core, delivering exceptional power and reliability. Capable of a peak torque output of 20.0 N·m and a maximum power of 12.8 kW, with speeds reaching up to 12,852 RPM, this motor is the ideal choice for high-speed underwater propulsion units such as those used in eFoils, eSurfboards, Jetboards, electric paddle boards (eSUPs), underwater thrusters, and various marine propulsion systems. Its fully sealed design meets IP68 protection standards for permanent submersion, combining robust power, high reliability, and a compact form factor to excel in demanding marine environments.
• Peak Power: 12.8 kW • Peak Torque: 20.0 N·m • Max Speed: 12,852 RPM
• Protection Rating: IP68 • Weight: 3.2 kg
