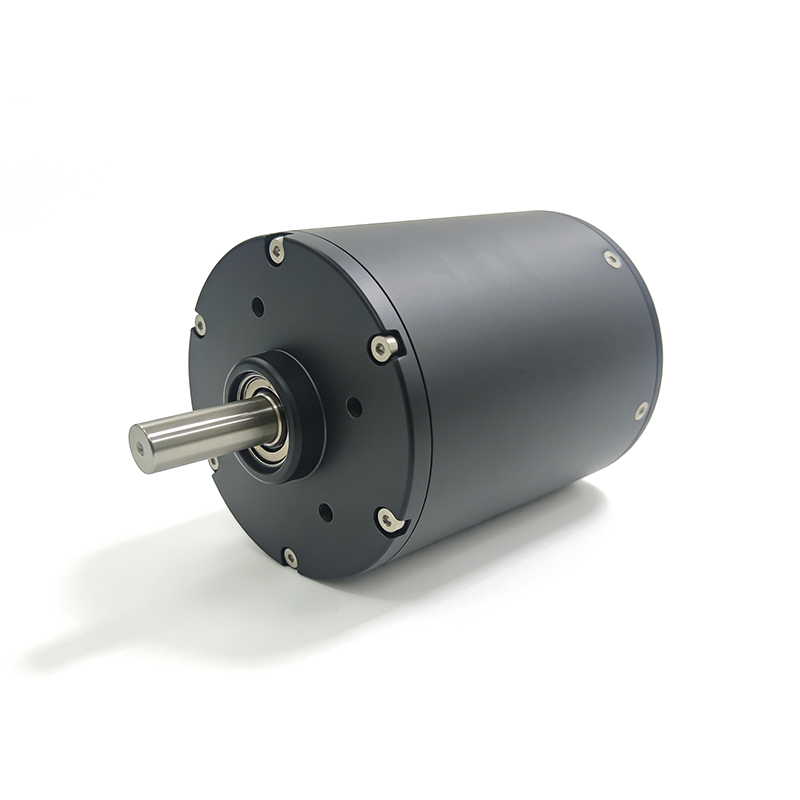

Engineered for demanding underwater and marine propulsion applications that require exceptional thrust and high efficiency, the D107L125S-WP-50KV motor integrates an advanced 12-slot 10-pole (12N10P) magnetic circuit within a 107mm diameter potted core. It delivers superior torque density and smooth operation, producing up to 25 N·m of peak torque and 15 kW of maximum power at speeds up to 8,400 RPM. This makes it the ideal power core for applications demanding robust low-speed thrust, such as electric outboard motors, underwater thrusters, marine main propulsion systems, and POD drives.
Fully sealed to IP68 standards for permanent submersion, it combines powerful output with high reliability in a compact package, built to withstand challenging marine environments.
• Peak Power: 15 kW • Peak Torque: 25.0 N·m • Max Speed: 8,400 RPM
• Protection Rating: IP68 • Weight: 4.1 kg
