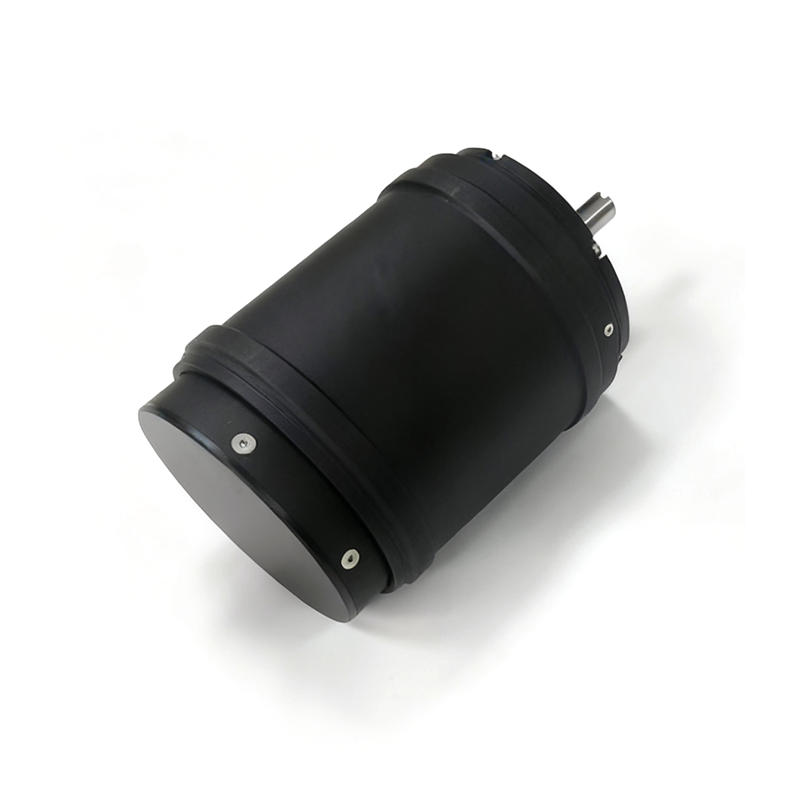

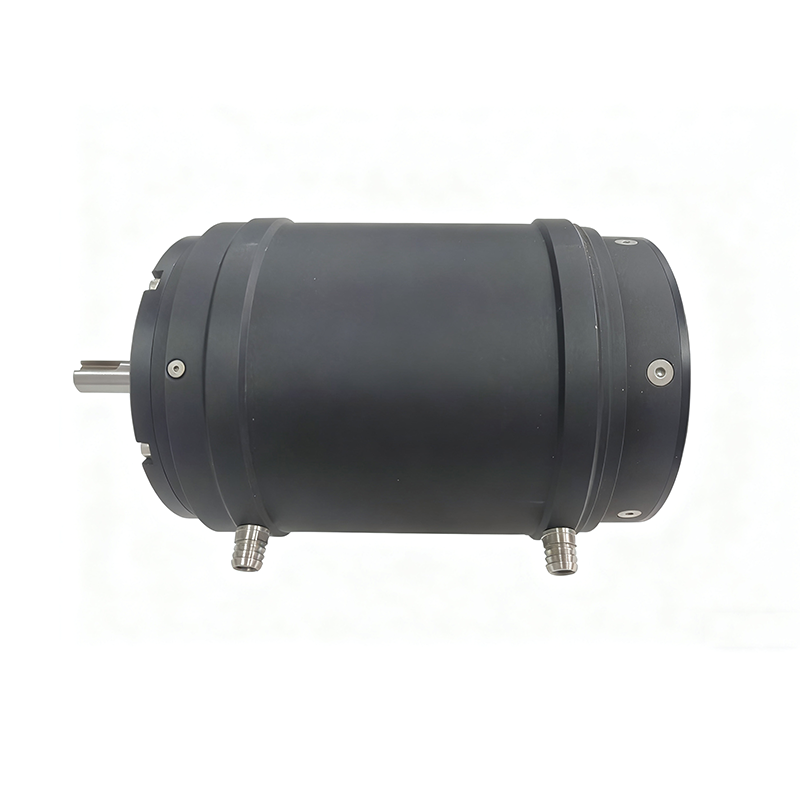

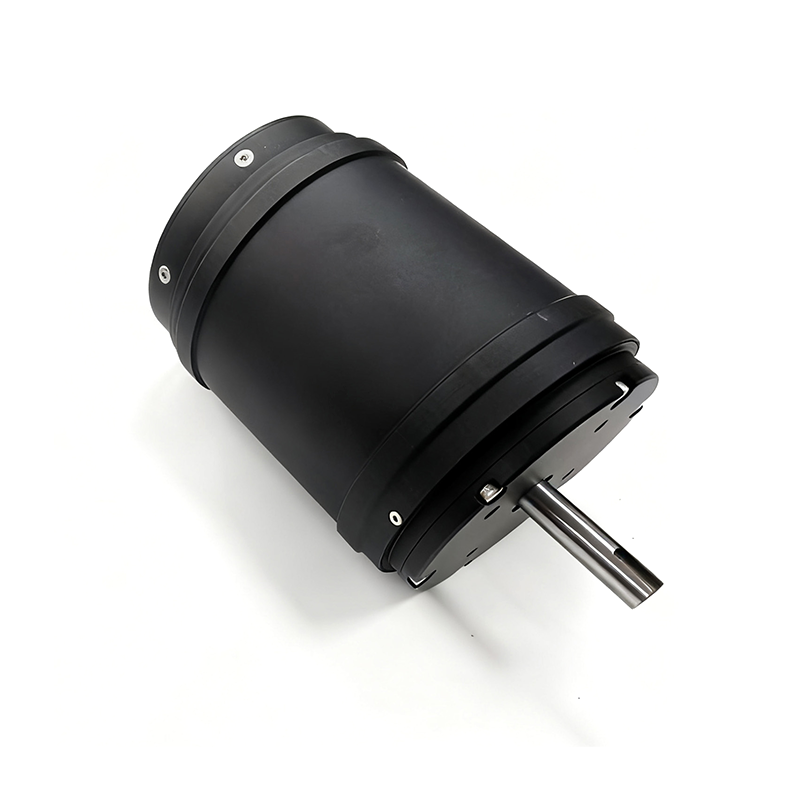

The D107L165-WC-85KV is a powerful water-cooled motor designed for high-torque, medium-to-low speed applications. Through optimized winding (5T) and magnetic circuit design, it achieves an impressive torque output at a low KV value, with peak torque up to 55.5 N·m and peak power of 30 kW. Designed to provide smooth and powerful direct-drive force for large electric outboard motors, heavy-duty underwater thrusters, and POD propulsion systems, it reaches a maximum speed of 9,282 RPM.
This motor also features an IP68 protection rating for integrated waterproof enclosure applications. Its efficient water-cooling system ensures stable and continuous operation at rated power. With its compact structure and high torque density, it serves as a reliable powerhouse for heavy-duty, high-efficiency propulsion solutions.
• Peak Power: 30.0 kW • Peak Torque: 55.5 N·m • Max Speed: 9,282 RPM
• Protection Rating: IP68 • Weight: 6.1 kg
