Brief: Engineered as the flagship model in its class, the D155L210-WP-38KV sets the standard for ultra-low-speed, high-torque marine propulsion. With its exceptionally low 38 KV rating and optimized windings for a wide high-voltage range (57.6-168V), it is purpose-built to deliver monumental torque exceeding 76 N·m and 45 kW of peak power at modest RPMs. This design philosophy makes it the ultimate solution for direct-drive systems in heavy-duty applications like large electric outboards and high-thrust commercial thrusters, eliminating the complexity and losses associated with gearboxes. Its robust water-cooled construction and full IP68 sealing ensure unwavering reliability and thermal management during continuous, high-load underwater operation.

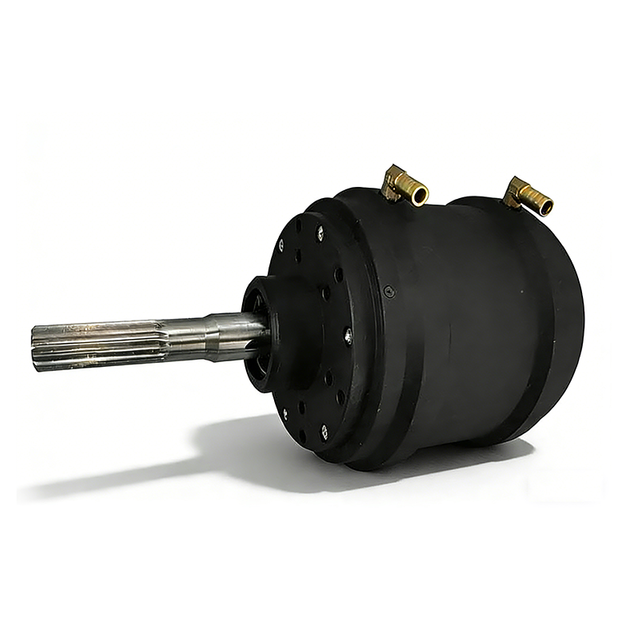

Brief: Engineered as a high-velocity powerhouse for demanding marine propulsion, the D155L210-WP+WC-76Kv motor leverages a substantial 155mm diameter core with an advanced 12N10P magnet structure. Delivering a formidable 75 N·m of peak torque and 46 kW of maximum power, with speeds reaching 6,384 RPM, it is designed to drive high-speed thrusters and powerful jet pumps for performance crafts and agile marine vessels. Integrating IP68 waterproof protection with efficient water-cooling, it is built for permanent submerged operation within sealed systems, ensuring reliable thermal management and sustained high-output performance.
Brief: Engineered for demanding underwater propulsion, the D70L165-140KV motor combines a 12N10P magnetic layout with a 70mm encapsulated core to deliver high torque and efficient power transfer. With a peak torque of 21 N·m and maximum output power of 10.5 kW, it reaches speeds up to 11,760 RPM, making it suitable for eFoil, hydrofoil, Jetboard, eSUP, and boat thruster applications. Rated IP68 for full submersibility, this motor ensures reliable operation in all water conditions.
Brief: Designed for high-dynamic-response marine applications that demand exceptional speed and agility, the D107L125S-WP-170KV motor integrates an advanced 12-slot 10-pole (12N10P) magnetic circuit within a precision-engineered 107mm diameter structure. It achieves an optimal balance of high efficiency and power density, delivering up to 21 N·m of peak torque and 17.5 kW of robust power, with a maximum speed of 12,852 RPM. This motor serves as the ideal power core for electric surfboards (eFoil, Jet Surfboard), water bikes, small watercraft (SUP, Kayak), high-speed boats (Jetski), and various high-performance underwater thrusters and POD systems.
Rated IP68 for complete protection, it ensures reliable and durable operation in demanding above-water and submerged environments, making it a key component for enhancing vessel performance and reliability.
Brief: Engineered for applications demanding exceptional low-speed torque and efficient, powerful propulsion, the D107L125-WC-150KV motor is a robust solution for heavy-duty marine and industrial uses. Leveraging an advanced 12-slot 10-pole (12N10P) design with optimized 4.5T winding, it delivers up to 22 N·m of peak torque and 17.8 kW of power within a compact 107mm diameter frame. Its low KV design is ideal for direct-drive systems requiring high thrust at moderate speeds, up to 12,600 RPM, making it perfectly suited for larger vessels and equipment where pulling power is critical.
Rated IP68 for complete protection, this motor is built for reliability in the most demanding environments, offering permanent submersion capability and durability against water and dust ingress for continuous, maintenance-free operation.
Brief: The D85L165-WC-100KV is a high-performance water-cooled inrunner motor designed for efficient, high-torque applications in surfboards, jetboards, and pump drives. Operating on a wide 12-28S voltage range (38-117.6V), it delivers up to 20 kW of power and 30 N·m of peak torque. Its advanced water-cooling system and sensored design ensure precise control and thermal management, while the IP64 rating makes it suitable for integration into protected, watertight marine propulsion systems where sustained performance is critical.
Brief: Engineered for robust performance in personal watercraft and demanding marine applications, the D85L165-WP-160KV motor combines high torque output with a compact design. Featuring a durable 7075 aluminum alloy housing and a 10-pole encapsulated core, it delivers up to 20 kW of peak power and 30 N·m of torque, optimized for efficient propulsion at speeds up to 7,680 RPM. Its fully potted IP68 construction ensures reliable operation in permanent underwater environments, making it a versatile power solution for direct-drive or integrated systems.
Brief: Engineered for powerful and efficient electric marine propulsion, the D85L165-WP-50KV motor combines an advanced 12-slot 10-pole design with a compact 85mm diameter. Operating on a wide 14-38S voltage range (44.8-159.6V), it delivers substantial low-RPM thrust with a peak torque of 35 N·m and a maximum power output of 20 kW. Its fully potted and sealed construction achieves an IP68 rating, making it perfectly suited for direct-drive applications or integration into sealed units where permanent submersion and reliable performance are essential.

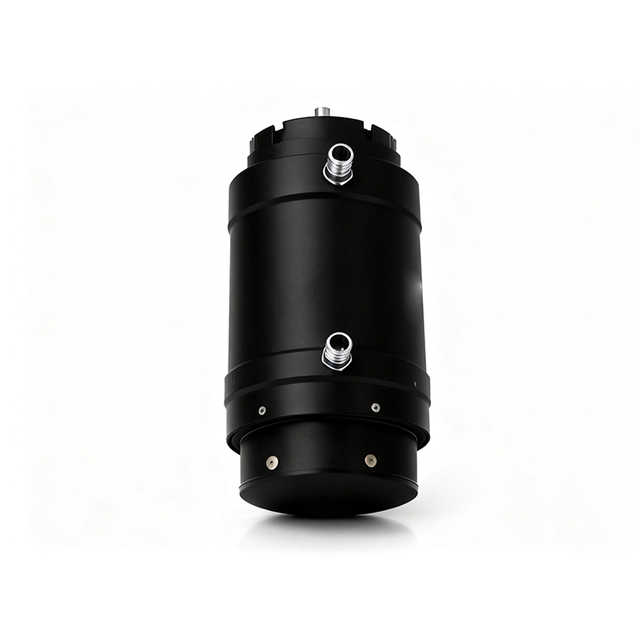

Brief: Built for torque-focused marine drive systems, the D85L165-WC-125Kv water-cooled motor leverages its 12N10P design to deliver the series' highest torque of 30.9 N·m, alongside 16.5 kW of power and speeds up to 12,600 RPM. It is tailored for applications where maximum thrust and pulling power are critical, such as in larger jet pumps or heavy-duty marine engines. This IP63-rated motor is configured for installation in a sealed chamber, utilizing water-cooling to manage heat during sustained high-load operation, ensuring durability and consistent performance.
