Brief: Balancing high speed with substantial torque, the D85L134-WP-210KV motor is engineered for dynamic marine applications. Its 12N10P design delivers up to 11.5 kW of power and 19.5 N·m of torque, capable of reaching 12，348 RPM on a common 6-14S (20-58.8V) voltage range. This makes it an excellent power plant for agile personal watercraft, high-performance surfboards, and compact underwater thrusters that demand quick acceleration and top-end speed.
Brief: The D85L134-WP-100KV motor is a versatile and robust solution for medium-voltage marine applications requiring high torque. With its optimized 8T winding supporting a wide 12-28S (40-117.6V) range, it delivers up to 11 kW of power and 21 N·m of torque. Its 100 KV rating provides strong, efficient low-end thrust, making it well-suited for trolling motors, larger underwater thrusters, and auxiliary drives where smooth, powerful propulsion is needed.
Brief: Engineered for high-speed, lower-voltage marine propulsion systems, the D85L134-WC-240KV motor offers impressive power density. Its 12N10P internal rotor design with water cooling enables up to 11.5 kW of peak power and 18.8 N·m of torque, reaching 11，520 RPM on common 6-12S (20-48V) battery systems. This combination of high RPM and compact size makes it an excellent choice for performance jetboards, surfboards, and other applications requiring agility and swift acceleration in a small form factor.
Brief: Designed for high-performance electric foil (eFoil) and compact marine applications, the D85L134-WC-120KV motor delivers a balance of speed and torque within an exceptionally compact 85mm diameter footprint. Featuring an advanced 12-slot 10-pole water-cooled design, it provides up to 11.5 kW of peak power and 21.5 N·m of torque, reaching speeds of 12，096 RPM. Its high efficiency (90%) and fully potted IP68 construction make it ideal for direct integration into demanding underwater propulsion systems where space, power, and reliability are critical.
Brief: Engineered for high-performance gearless direct-drive systems, the D107L165-WC-140KV is a water-cooled power core that combines high power with high speed. Featuring an advanced 12-slot 10-pole (12N10P) magnetic circuit within a compact 107x165mm footprint, it delivers up to 31 kW of peak power and 56 N·m of peak torque, reaching speeds of 9,408 RPM. With exceptional power density and efficiency up to 92%, it is the ideal choice for high-speed jet pumps, main marine propulsion, and high-performance underwater thrusters demanding instantaneous response and sustained output. Thanks to a unique sealing configuration rated IP64, the motor can be integrated into custom watertight enclosures for reliable operation in harsh marine environments. An advanced combined water and air cooling system ensures dependable performance and long service life under continuous high-load conditions.
Brief: The D107L125-WC-230KV motor is a high-performance power core designed specifically for high-speed water sports and compact marine propulsion systems. Featuring an advanced 12-slot 10-pole (12N10P) magnetic circuit design and precision winding (3T), it achieves exceptional power density within a compact 107mm diameter structure. Delivering up to 21 N·m of peak torque and 18 kW of robust power with a maximum speed of 13,524 RPM, it provides rapid acceleration and ultimate speed performance. Thanks to a unique sealing configuration, the motor is IP68 certified, ensuring reliable power delivery not only in permanent underwater operation but also in dusty environments, under various demanding conditions.
Brief: Engineered for demanding underwater and marine propulsion applications that require exceptional thrust and high efficiency, the D107L125S-WP-50KV motor integrates an advanced 12-slot 10-pole (12N10P) magnetic circuit within a 107mm diameter potted core. It delivers superior torque density and smooth operation, producing up to 25 N·m of peak torque and 15 kW of maximum power at speeds up to 8,400 RPM. This makes it the ideal power core for applications demanding robust low-speed thrust, such as electric outboard motors, underwater thrusters, marine main propulsion systems, and POD drives.
Fully sealed to IP68 standards for permanent submersion, it combines powerful output with high reliability in a compact package, built to withstand challenging marine environments.

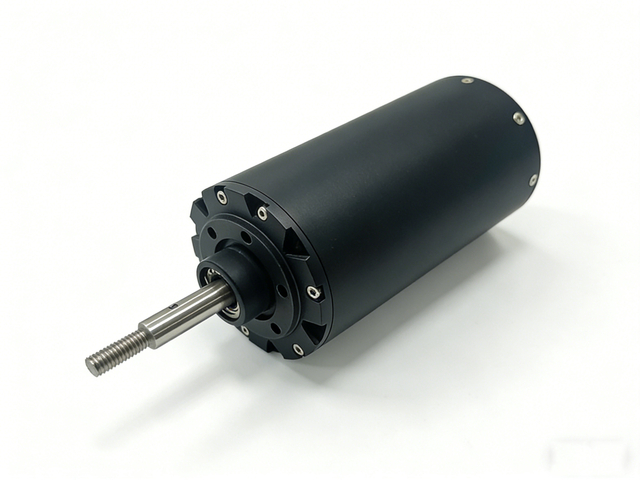

Brief:Designed for high-speed, gearless marine propulsion, the D85L165-WP-240KV motor delivers impressive power in a compact package. It provides up to 20 kW of peak power and 30 N·m of torque, capable of reaching 11,000 RPM. Ideal for jet propulsion systems in performance watercraft like jetboards and eFoils, its IP68-rated sealed construction ensures dependable operation when integrated into watertight drives, offering a blend of speed, power, and environmental resilience. Peak Power: 20 kW Peak Torque: 30 N·m Max Speed: 11,000 RPM Protection Rating: IP68 Weight: 3.9 kg

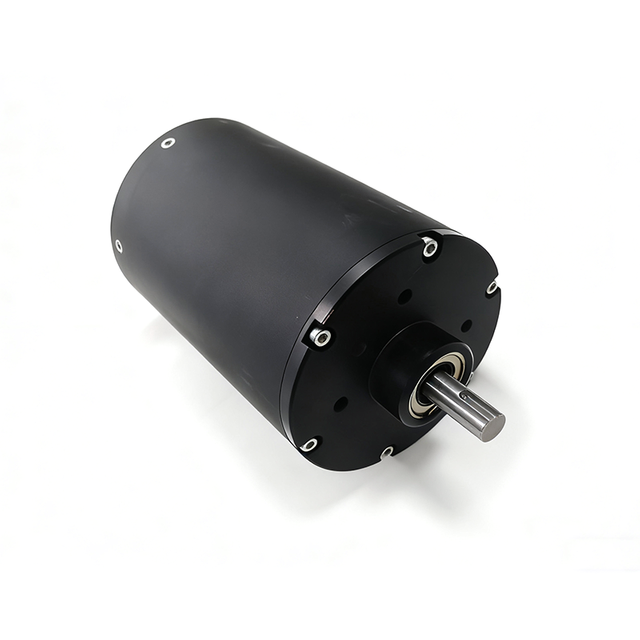

Brief: Designed for high-performance underwater applications demanding exceptional acceleration and speed, the D107L165-WP-160Kv motor features an advanced 12N10P magnet structure within a robust 107mm diameter core. Engineered to deliver the series' highest power output of 31.0 kW and a formidable peak torque of 56 N·m, with speeds reaching 9,400 RPM, it is the ultimate choice for high-speed thrusters in jetboards, performance e-surfboards, and agile marine propulsion systems. Rated IP68 for permanent submerged operation, its design prioritizes both immense power delivery and unwavering reliability in the most demanding saltwater environments.
