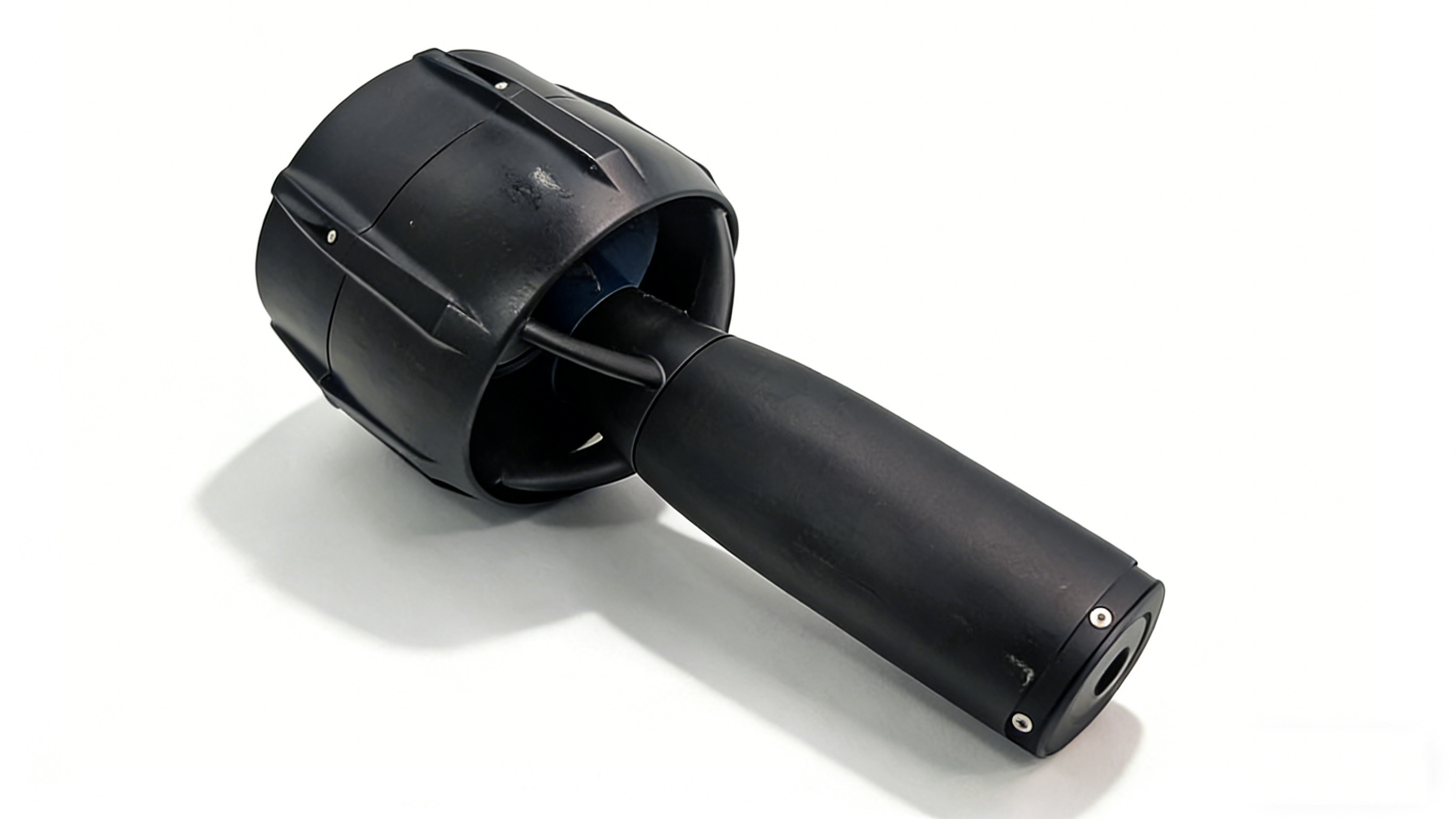

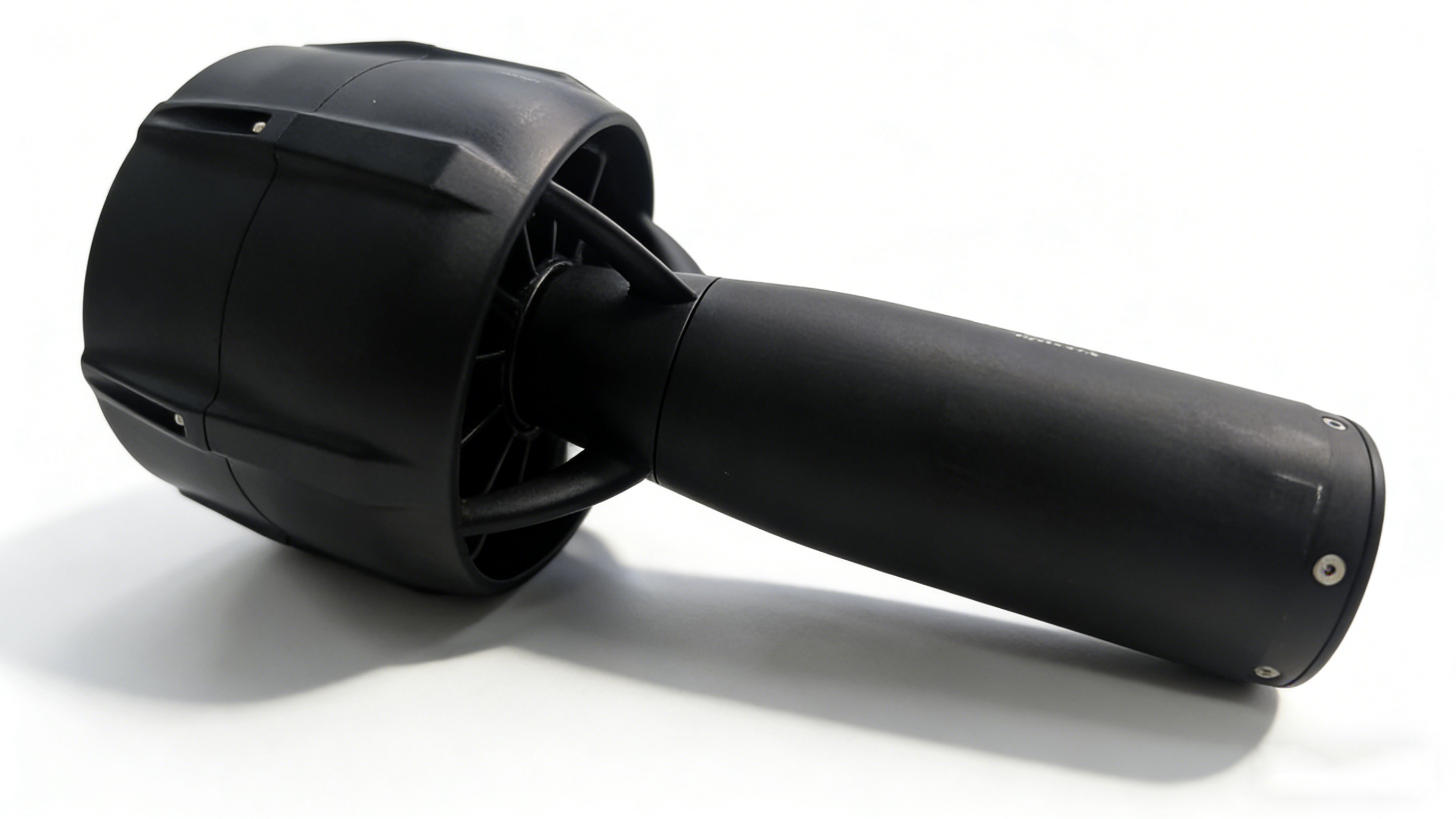

Electric Hydrofoil Motor Kit D65L161-120kv Waterproof Motor with 4-Blade Propeller

Electric Hydrofoil Motor Kit D65L161-120kv Waterproof Motor with 4-Blade Propeller

The Quanly D65L161-120Kv Motor Kit is optimized for speed and high-RPM efficiency. Featuring a responsive 120Kv motor and the same precision 124mm 4-blade propeller, it delivers excellent top-end performance and smoother cruising for experienced riders. While maintaining strong thrust, its higher Kv rating allows for greater rotational speed under load, making it the ideal choice for lighter builds and riders prioritizing velocity and efficient planing. Housed in rugged anodized aluminum, this integrated kit offers a perfect balance of speed, durability, and seamless integration for your high-performance eFoil.

Max. Static Thrust：40 kgf
Max. RPM：5,760
Max. Power：10 kW

Quantity:
Availability:





Inquire Add to Basket

System Types:
All
Kv:
100-150
Controller Type:
Sensorless
Maximum Voltage:
60V
Maximum Continuous Current:
< 120A

Efoil Motor Kit Electric Hydrofoil Motor Kit propulsion System 4-Blade Propeller thruster Waterproof Motor

Features

Specification

Dyno Tested Data

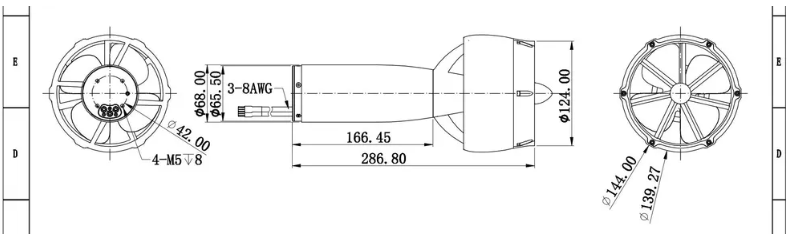

Dimension

Key Features

High-Speed Efficiency: The 120Kv motor is tuned for higher RPM operation, offering exceptional top-end speed and cruising efficiency for experienced riders.
Optimized Power Curve: Delivers strong performance with a slightly higher speed constant, potentially offering better efficiency at planing speeds.
Premium Integrated Propeller: Paired with the same efficient 124mm 4-blade propeller for smooth, cavitation-resistant thrust.
Robust Marine Construction: Shares the same durable, hard-anodized aluminum housing as the 100Kv model, built for saltwater use.
Complete Propulsion Package: A ready-to-install kit that eliminates compatibility guesswork between motor and propeller.

Parameter	Value
Model	D65L161-120Kv with 4-Blade Prop
Motor Type	Permanent Magnet Brushless DC (18N/6P)
Speed Constant (Kv)	120 RPM/V
Torque Constant (Kt)	0.07881 N·m/A
Recommended Voltage	48V DC (Compatible: 25.2-84V / 6S-20S)
Continuous Current	70A
Peak Current	200A
Max. Power	6 kW (Continuous) / 10 kW (Peak @ Max Voltage)
Max. Static Thrust	Up to ~40 kgf* (Est. based on Kv ratio)
Max. RPM	5,760 (Recommended) / 16,380 (Max)
Propeller	4-Blade, 124mm Diameter
Motor Weight	3.0 kg
Total Kit Weight	~5.2 kg (Est.)
Efficiency	>80% (Up to 91% max)
Protection Level	IP68

Underwater Performance Test: Full Load at Various Voltages

Item	Voltage (V)	Current (A)	Input Power (W)	Speed (RPM)	Thrust (kgf)	Throttle (%)	Thrust-to-Power (kgf/kW)
1	30	64	1,920	2,286	27.8	100	14.48
2	36	81	2,916	2,588	34.9	100	11.97
3	42	98	4,116	2,948	39.5	100	9.60
4	48	114	5,472	3,186	45.6	100	8.33

Underwater Performance Test: Full Throttle Range at 48V

Item	Voltage (V)	Current (A)	Input Power (W)	Speed (RPM)	Thrust (kgf)	Throttle (%)	Thrust-to-Power (kgf/kW)
1	48	4	192	1,174	5.9	30	30.73
2	48	10	480	1,420	10.8	40	22.50
3	48	20	960	1,798	16.2	50	16.88
4	48	35	1,680	2,154	24.1	60	14.35
5	48	49	2,352	2,368	29.8	70	12.67
6	48	69	3,312	2,620	35.6	80	10.75
7	48	88	4,224	2,880	39.1	90	9.26
8	48	114	5,472	3,186	45.6	100	8.33

Notes:

All test data above corresponds to the D65L161 motor kit paired with the 124mm four-blade propeller.
Key Performance Verification: At the rated 48V under full throttle (100%), the system draws 5.47 kW of input power and produces a measured static thrust of 45.6 kgf, which matches the product description of "Thrust: 45.6 Kg at 114A."
Thrust-to-Power Trend: The thrust-to-power ratio (kgf/kW) decreases as throttle and power increase, which is consistent with the general characteristic of propeller-based propulsion systems being more efficient at lower loads.
