EFoil Propulsion System

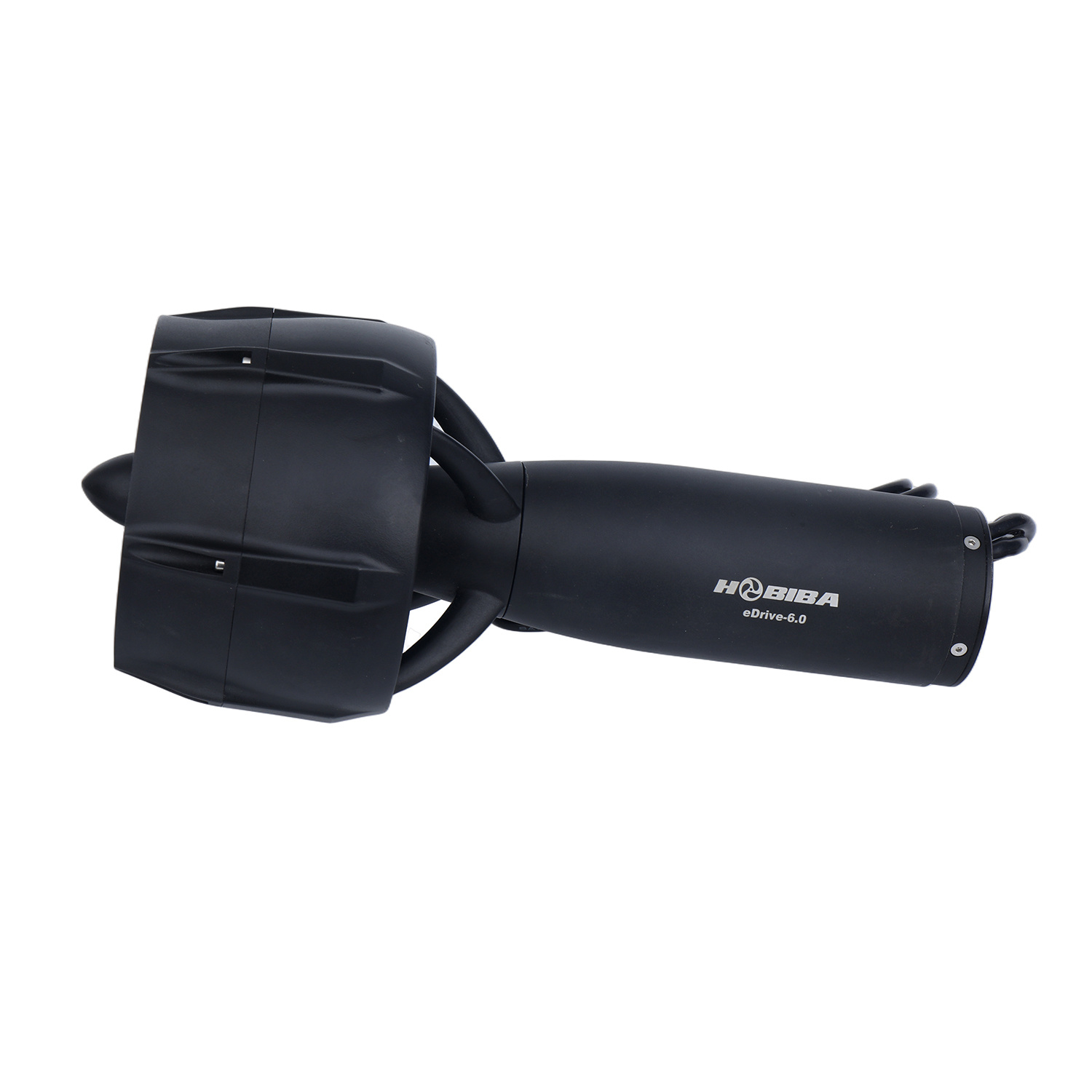

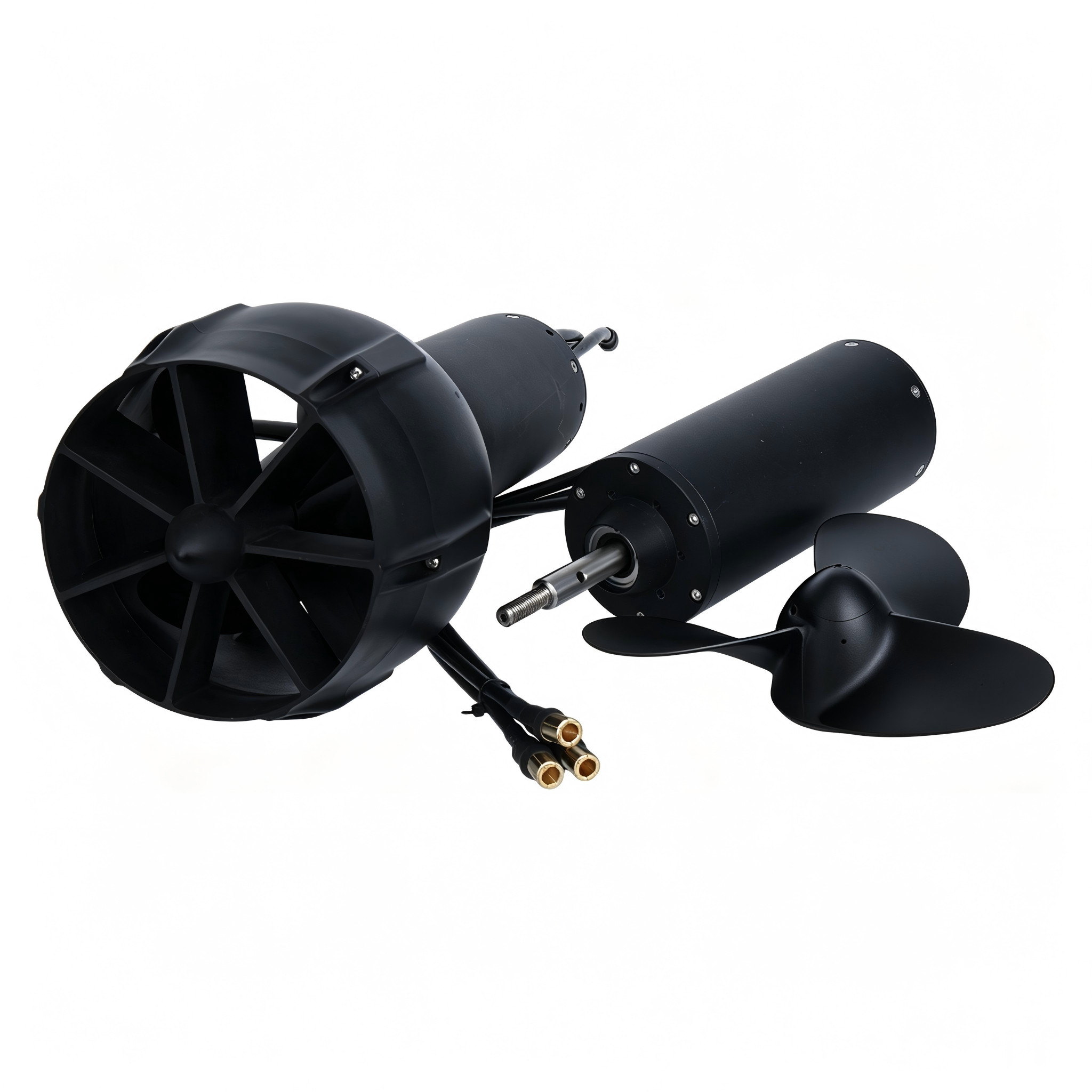

The eFoil series products are custom-designed for electric hydrofoil surfboards and hydrofoil boats. Both the Standard and Enhanced versions are integrated eFoil motor kits, designed to provide differentiated power choices based on different customer usage scenarios and performance preferences. Both products seamlessly combine robust power with pinpoint control.

The Enhanced version features a rated power of 4 kW and a peak power of 7 kW, delivering a class-leading peak thrust of 57 kgf—bringing instant acceleration and a confident riding experience.

When the hydrofoil surfboard or vessel is in motion and lifts off the water surface, the maximum speed reaches up to 32 km/h for the Standard version and 35 km/h for the Enhanced (Racing) version, ensuring a perfect match for various speed demands.

Key Product Features

Full Aluminum Alloy Housing: Treated with hard-anodizing, offering marine-grade corrosion resistance and structural strength. Operates reliably in both fresh and salt water, with an IP68 waterproof rating to withstand splashes and full submersion.

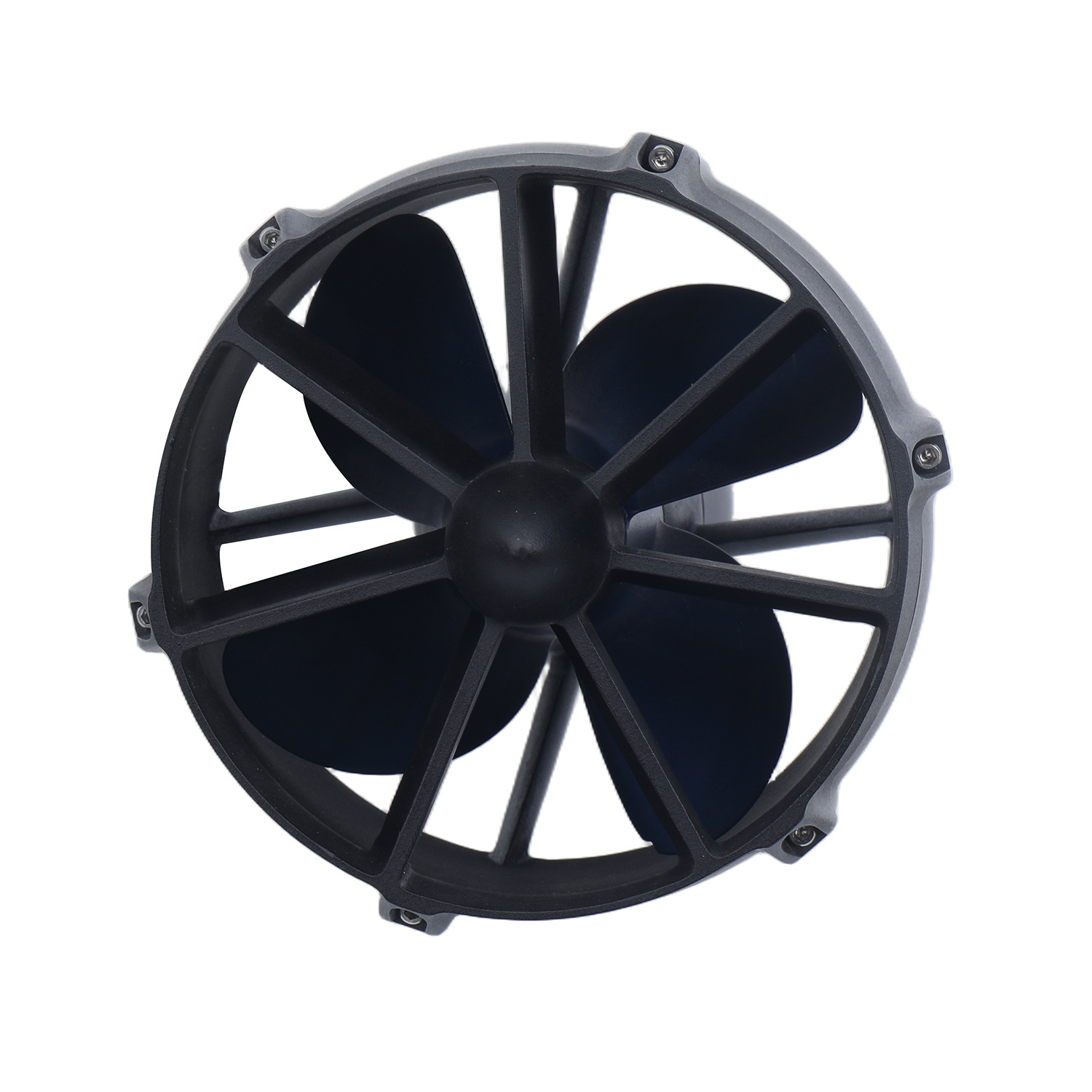

High-Strength eFoil Propeller: Delivers dynamic balance performance, ensuring smooth operation with minimal vibration.

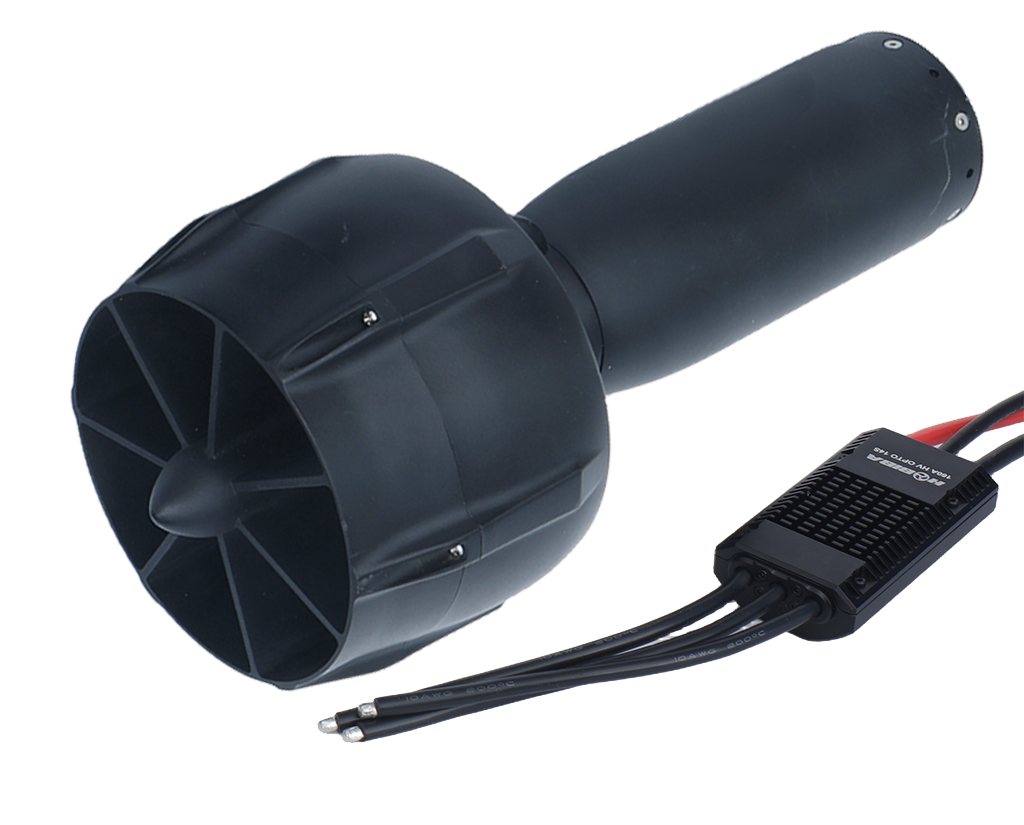

Integrated ESC: Reduces wiring, power loss, and heat generation, boosting overall efficiency.

Throttle Signal Compatibility: Supports CAN-BUS, Voltage, and PWM protocols, compatible with all mainstream eFoil remote control systems.

Multiple Mounting Options: Supports flexible and quick deployment.
Standard Version vs. Enhanced Version: Model Selection Guide

Parameter / Feature	Standard Version（efoil-6.0）	Enhanced Version (efoil-7.0)
Rated Power	3 kW	4 kW
Peak Power	6 kW	7 kW
Max Thrust	45 kgf	57 kgf
Max Speed	32 km/h	35 km/h

The Standard and Enhanced versions of the eFoil series offer every user a reliable, efficient, and hassle-free propulsion system. Please feel free to contact us for selection guidance and customized solutions.

Customized Solutions

We specialize in tailor-made brushless motors and propulsion systems, designed to meet your specific requirements—whether it's housing, shaft, poles, windings, cooling method, or IP rating. Our flexible approach ensures optimal performance for your application.

Waterproof & Corrosion-Resistant

All our motors are IP68-rated, designed to withstand harsh marine environments—including saltwater immersion. Ideal for eFoils, jetboards, outboard engines, and underwater thrusters.

Full In-House Manufacturing

From motor winding and machining to injection molding and assembly, we control the entire production process under one roof. This ensures quality, flexibility, and cost efficiency—from prototype to mass production.

High Performance & Efficiency

Our motors deliver power from 200W to 80KW, with peak torque up to 120Nm. We focus on total system efficiency, helping you maximize endurance and reduce overall system weight and cost.

Global Support & Long-Term Partnership

We provide end-to-end support throughout the product lifecycle—from design and prototyping to series production and spare parts. Trusted by brands like Horizon Hobby and Kyosho for over a decade.

Rugged & Reliable

Built for demanding applications in water sports, marine, and recreational vehicles, our motors are tested in real-world conditions to ensure durability, long service life, and consistent performance.
