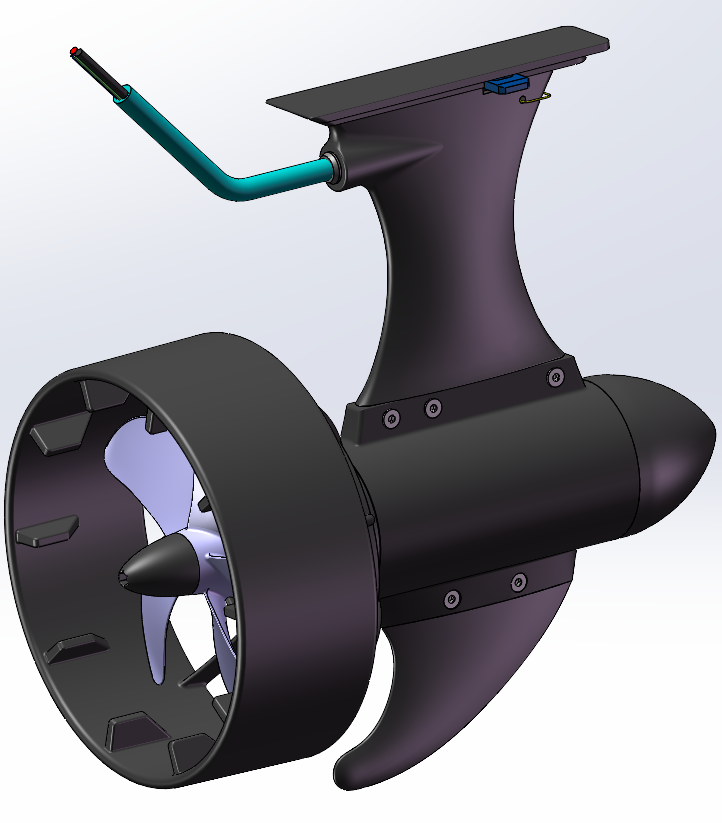

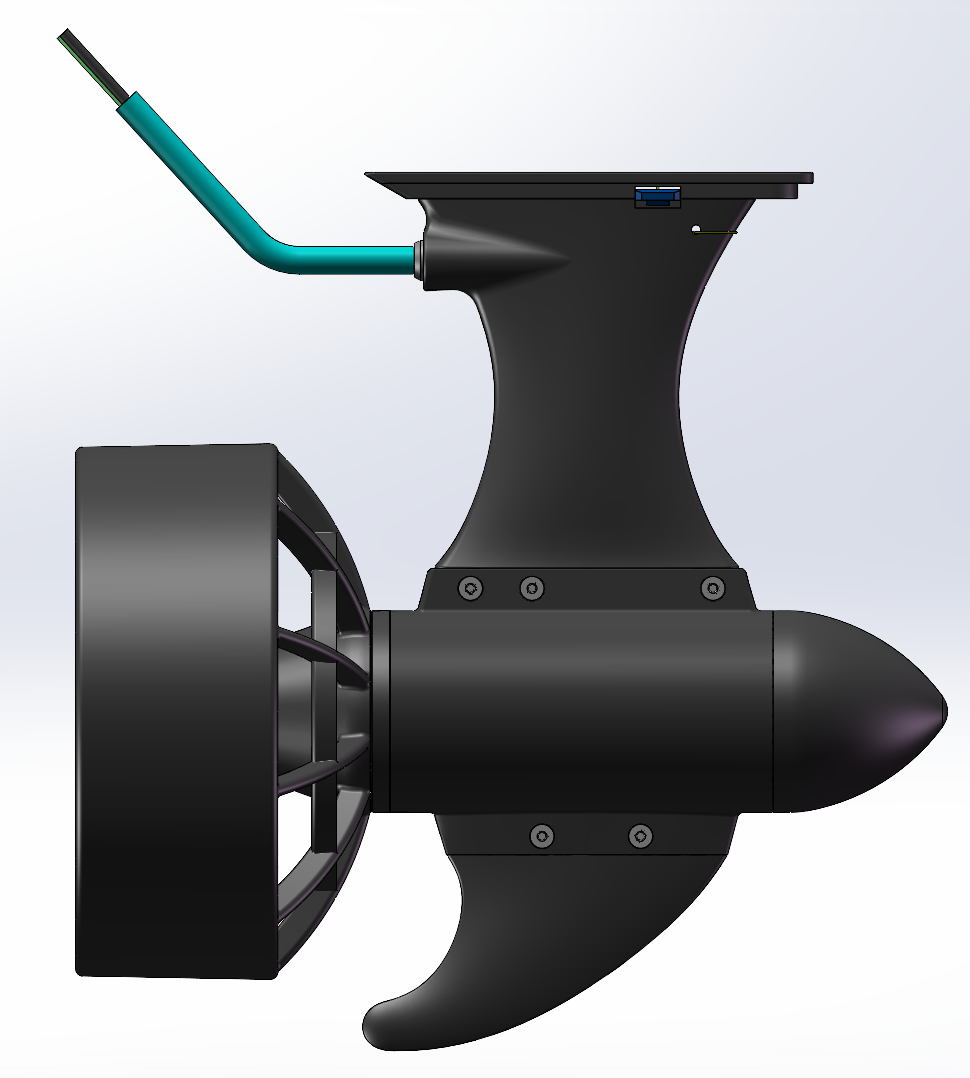

1. Product Overview
The ePOD-1.0 is an advanced electric propulsion system specifically engineered for stand-up paddleboards
(SUPs) and small watercraft. Featuring an integrated built-in controller design, it delivers exceptional
lightweight performance, superior corrosion resistance, high efficiency, and ultra-quiet operation.
2. Applications
Stand-Up Paddleboards (SUP):Perfect fit for recreational and touring paddleboards.
Kayaks & Small Dinghies:Suitable for both single-person and double-person kayaks, as well as small
rowboats.
3. Technical Specifications
Parameter | Specification(MODEL 1) | Specification(MODEL 2) |
Input Voltage | 24V | 24V |
Max Input Current | 25A | 60A |
Max Thrust | 15kgf | 23kgf |
Max Motor RPM | 1100 rpm | 1400 rpm |
Matching Speed | 4.5 km/h | 7.5 km/h |
Matching Boat Weight | 45-85kg | 45-85kg |
4. Structural Parameters
Parameter | Specification |
Water Environment | Freshwater / Seawater |
Waterproof Grade | IP68 |
Dimension (D×H) | 441 × 82 × 248 mm |
Total Weight | 1.8 kg |
Housing Material | Aluminum Alloy (Hard Anodized) |
Maintenance Interval | 150 Hours |
5. Product Features
1. Lightweight & Corrosion-Resistant Housing
Constructed from premium aluminum alloy with a specialized hard-anodized surface treatment, the housing
provides exceptional corrosion resistance for demanding marine and saltwater environments. Weighing only
1.8 kg, it ensures effortless portability and quick installation.
2. High-Efficiency & Heat-Resistant Motor
Equipped with high-magnetic-density, high-temperature-resistant magnets, delivering high power density and
superior thermal performance. It supports stable, long-duration operation under high-power output while
effectively extending overall battery runtime.
3. Low-Vibration Propeller
The propeller is manufactured from specialized high-strength engineering plastics with outstanding dynamic
balancing performance, significantly minimizing motor vibration for a smoother, quieter ride on the water.
4. Integrated Built-In Controller
Featuring an advanced built-in controller design with short, continuous wiring configuration, it minimizes
power loss and heat generation, thereby maximizing operational efficiency while simplifying setup and
operation.
5. IP68 Waterproof Rating
The complete unit achieves an IP68 waterproof rating, allowing for full continuous immersion during operation
and ensuring reliable performance across diverse aquatic environments.
Contact Us
For further technical support, product inquiries, or partnership opportunities, please contact our team:
Website: en.hobiba.cn
Email: jimmyw@hobiba.cn / ales01@quanly.cn
Tel: +86-769-8637 0990
Document Version: V1.0 | Update Date: 2026-07-20
